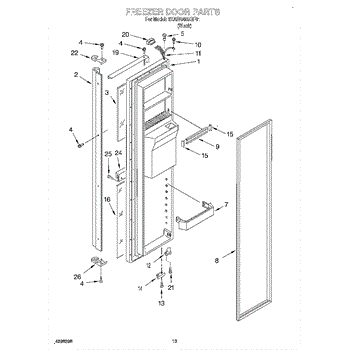

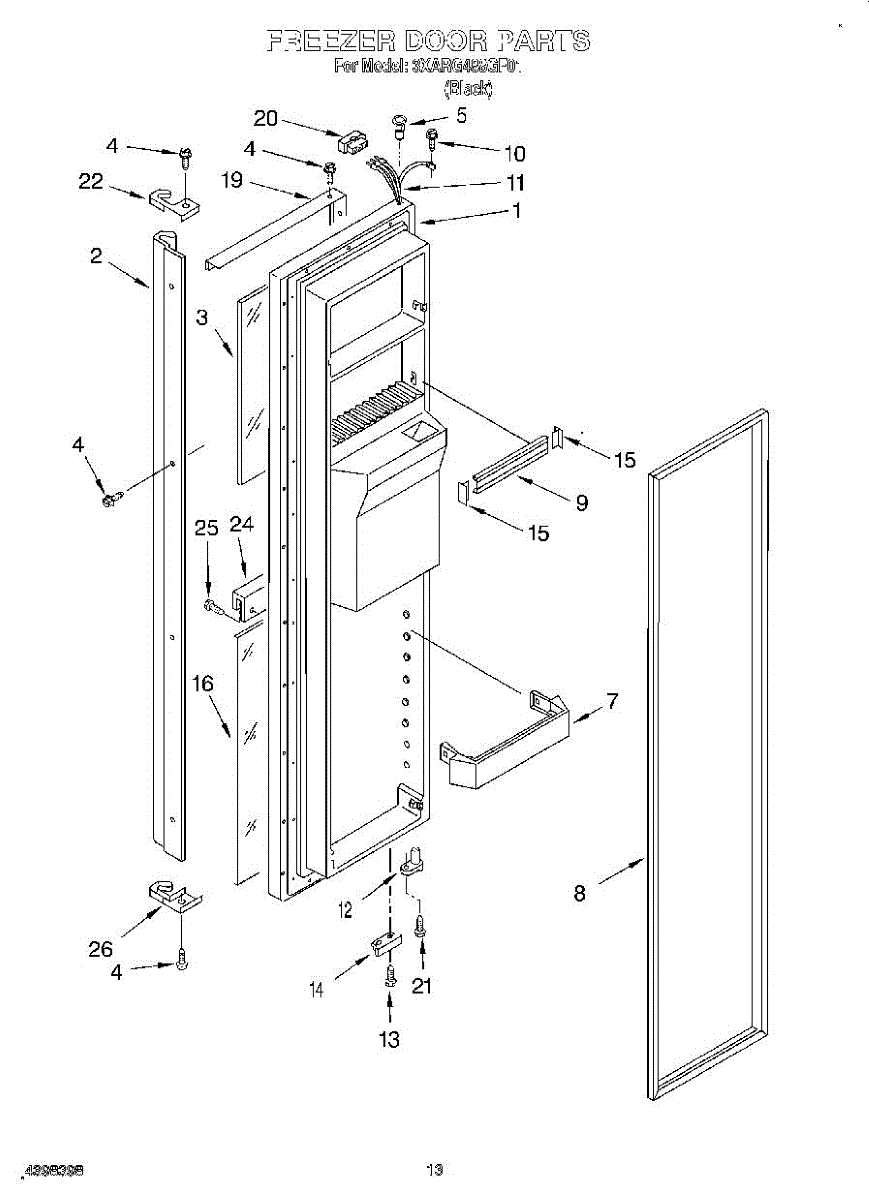

Parts for Whirlpool 3XARG488GF01: 08 - Freezer Door Parts

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This trivet shelf is the shelf insert that adds a usable storage level inside the compartment. Replace a missing or damaged shelf to restore organization and keep items off the liner surface for better use of space.

• Provides stable support for food packages and containers
• Rests on existing side supports or brackets inside the compartment
• Replace when the original shelf is missing, bent, broken, or won't sit level
• Restores the intended storage layout and airflow

• Clear the area by removing or shifting nearby items
• Align the shelf with the side supports and seat both sides fully before loading
• Wear gloves and avoid forcing the shelf into place
• Confirm the shelf sits level and is secure before use

The Freezer Door Gasket is an OEM part for Whirlpool side-by-side and bottom-freezer refrigerators. As the seal that encloses cold air inside the freezer compartment, this gasket is critical for maintaining proper freezing temperatures.

Causes of a bad freezer door gasket can include cracking or deterioration from repeated compression and expansion during opening and closing of the freezer door over time. Food debris or moisture trapped against the gasket rim can also damage the sealing integrity.

Symptoms of a bad freezer door gasket include:

• Difficulty closing or sealing the freezer door properly
• Higher energy bills from the refrigerator running excessively
• Frost and ice buildup inside the freezer sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retaining Bar is an OEM component for Whirlpool refrigerators. It is a horizontal metal rod located within the refrigerator door that secures glass shelf panels in place during opening and closing. Maintaining structural integrity prevents accidental shelf removal or breakage.

Symptoms of a damaged retaining bar may include:

• Shelves that suddenly fall or slide out of position while accessing contents
• Gaps or spaces where shelves are unable to fully lock into place along guides
• Noisy rattling or clanking sounds emanating from loose shelving inside the door

Causes generally relate to standard wear over extended use. Repeated door movements may gradually weaken connecting joints, sockets, and bends within the thin metal bar material over time.

Compatible brands are KitchenAid, Jenn-Air, and some Kenmore refrigerator models too.

Screw: 8-16 x 3/8 inch.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
