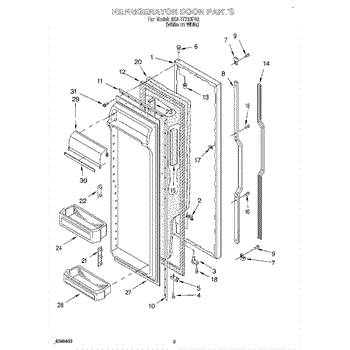

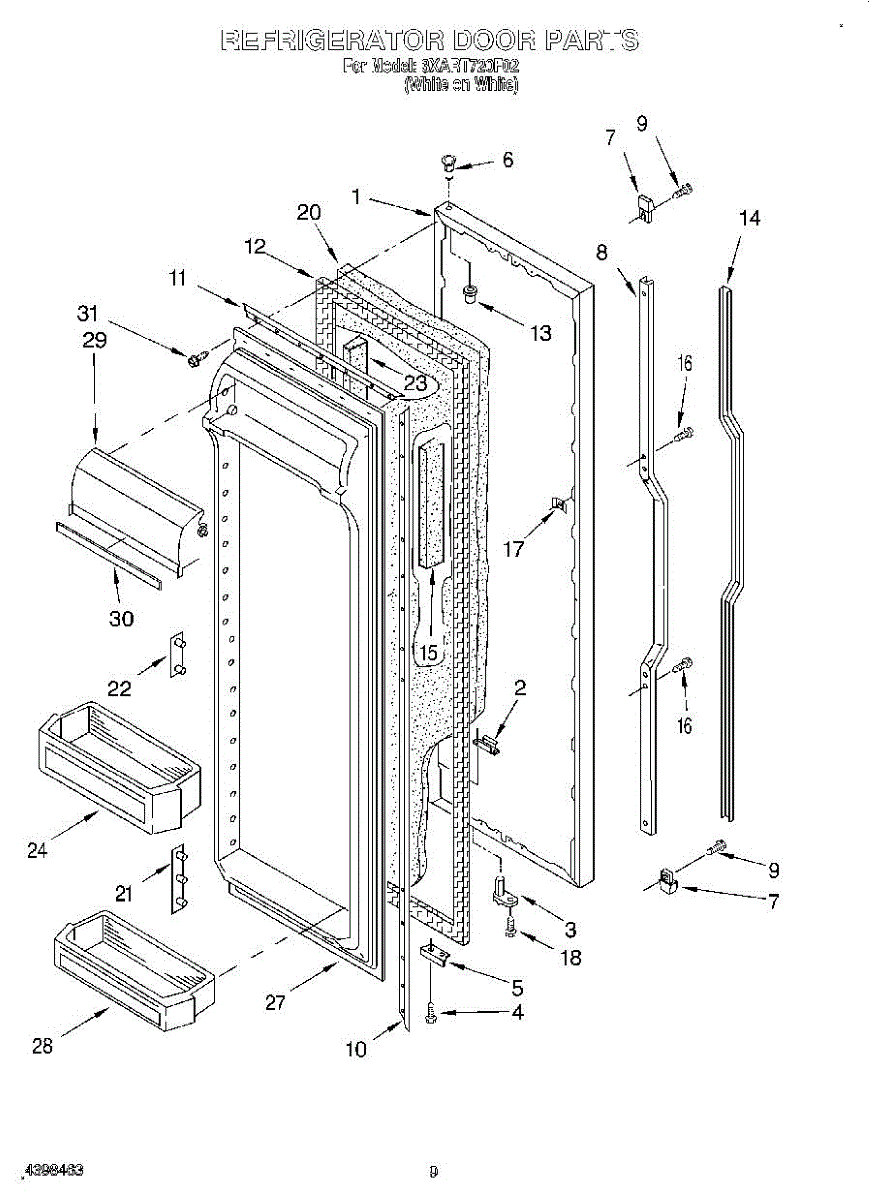

Parts for Whirlpool 3XART720F02: 05 - Refrigerator Door Parts

Parts for Whirlpool 3XART720F02: 05 - Refrigerator Door Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: 2194192W
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: 2196135
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Best Seller
Product photo
4.9 (237)
By: Whirlpool
Part Number: WP2182179

Replaces a worn or broken upper closure cam on your refrigerator door hinge. Ensures proper door alignment and smooth closing action when damaged.

More
$9.63

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
4
Best Seller
Product photo
4.7 (15)
By: Whirlpool
Part Number: WP489483

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

  • Loosened or detached components that were once fastened
  • Reduced structural integrity of connections or assemblies
  • Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

More
$11.78

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
5
Product photo
4.3 (3)
By: Whirlpool
Part Number: WP2195950

Chrome. No longer made in black.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Best Seller
Product photo
4.8 (41)
By: Whirlpool
Part Number: WP2182181

Top door hinge thimble bearing supports the upper refrigerator hinge for smooth door operation. Replace if cracked, worn, or causing popping noises.

More
$9.63

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
7
Product photo
By: Whirlpool
Part Number: 2194778W
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
By: Whirlpool
Part Number: WP2194776W
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP3400852
$13.31

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
10
By: Whirlpool
Part Number: WP1117766
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Whirlpool
Part Number: 1118301
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
Product photo
5.0 (3)
By: Whirlpool
Part Number: 2188404A

Replace your refrigerator door gasket to seal cold air inside and prevent condensation. Signs include visible wear or warm interior. Confirm fit by model.

More
$144.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
13
Product photo
By: Whirlpool
Part Number: 509929
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
By: Whirlpool
Part Number: 2203107W
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
By: Whirlpool
Part Number: 1119055
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16
Product photo
By: Whirlpool
Part Number: WP489463

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
17
Product photo
By: Whirlpool
Part Number: 941242
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
Best Seller
Product photo
4.7 (10)
By: Whirlpool
Part Number: WP3400012

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

  • Fastens components to the appliance cabinet or frame
  • Helps maintain alignment and proper clearances
  • Reduces vibration-related noises from loose or missing hardware
  • Common replacement when a screw is lost, corroded, or threads are damaged
What's included:
  • 1 screw
Install notes:
  • Disconnect power before service; for gas appliances, also shut off gas supply
  • Start threading by hand to avoid cross-threading; use the correct driver bit
  • Tighten snugly without overtightening to prevent stripping
  • Inspect and replace any worn clip/nut or damaged threads

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
20
Product photo
By: Whirlpool
Part Number: 876029
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
Product photo
By: Whirlpool
Part Number: W10851606
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22
Product photo
By: Whirlpool
Part Number: 2196166
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23
By: Whirlpool
Part Number: 1115379
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24
Product photo
4.7 (3)
By: Whirlpool
Part Number: WP1124846
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27
By: Whirlpool
Part Number: 4317806
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28
Product photo
By: Whirlpool
Part Number: 2177883
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29
Product photo
By: Whirlpool
Part Number: 2148289
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30
Product photo
By: Whirlpool
Part Number: 2188148
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP489069

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
