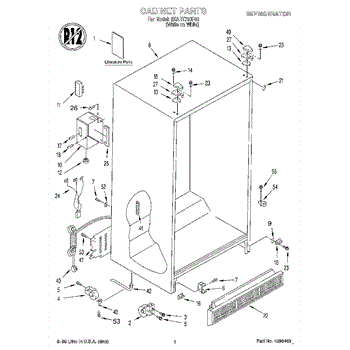

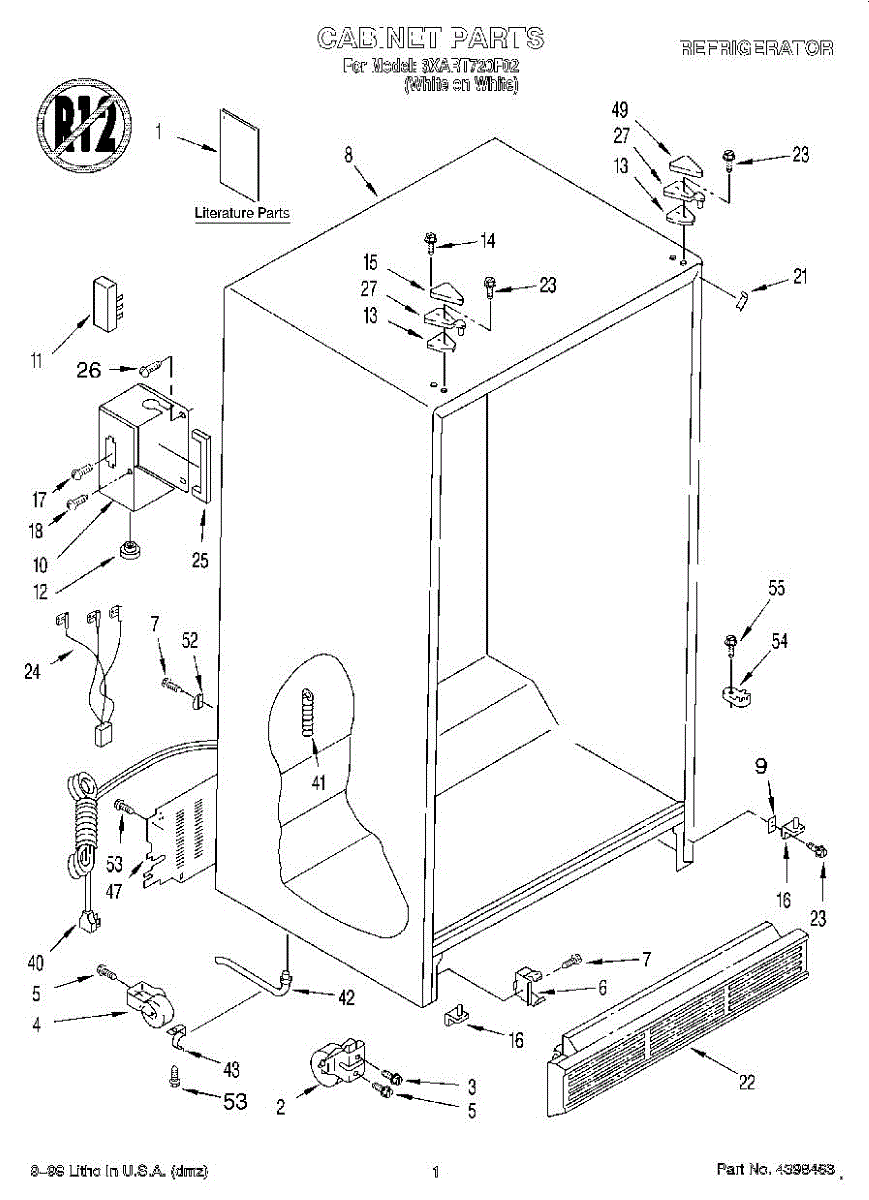

Parts for Whirlpool 3XART720F02: 01 - Cabinet, Literature Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw for securing components inside your refrigerator. Needed when original screws are stripped, lost, or corroded during repairs.

Supports your refrigerator at the base and lets you roll it forward for cleaning. Replace this roller assembly if cracked, broken, or seized to restore smooth movement.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Secures the bottom grille to your refrigerator frame. Replace if the original clip is cracked, broken, or missing and the grille won't stay in place.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Bottom hinge shim for refrigerator doors. Adjusts door height and alignment for proper seal. Replace if door sags or doesn't close evenly. Confirm fit.

White. For almond order WP1129262.

This Door Hinge Kit is an OEM replacement part for Whirlpool refrigerators. It includes the left and right lower door hinges. These hinges are crucial components that allow the refrigerator doors to swing open and close both smoothly and securely.  This kit includes both the freezer and refrigerator door hinges.

Symptoms of bad door hinges can include:

• The door not sealing properly when closed
• Difficulty opening or closing the door
• Excessive noise emanating from the hinge area
• Door alignment issues where it does not sit flush

Causes of failure typically involve hinge components wearing down over extended use. Hinges may also become loose, misaligned, or damaged due to impact over time.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

Secures panels, brackets, and internal components. 10-16 thread fastener for sheet metal and plastic mounting. Replace missing or stripped screws.

Size: 8-32 x .312 inch.

Black

Front grille vent cover for your refrigerator. Provides a finished look and directs airflow. Replace if cracked, broken, or missing to restore appearance.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

Replaces a cracked, bent, or missing refrigerator door hinge. Installs at the top of the door to secure it to the cabinet. Needed when damaged or lost.

Directs defrost water to the drain line in your refrigerator. Replace if cracked, broken, or leaking to prevent water buildup inside the unit.

Extends the ice machine drain outlet for secure hose connection. Replace if cracked, broken, or missing to prevent leaks and ensure proper drainage.

Secures the drain extension tube in your refrigerator's defrost system. Replace if clip is broken, cracked, or missing to properly hold drain tubing in place.

White plastic hinge cover that snaps onto the top of your refrigerator door hinge. Replace if cracked, broken, or missing for a clean finished look.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replaces worn or broken door cam in your refrigerator. Lifts door during opening/closing to reduce hinge stress. Install if cam is cracked or damaged.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
