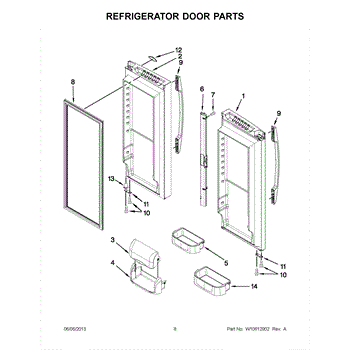

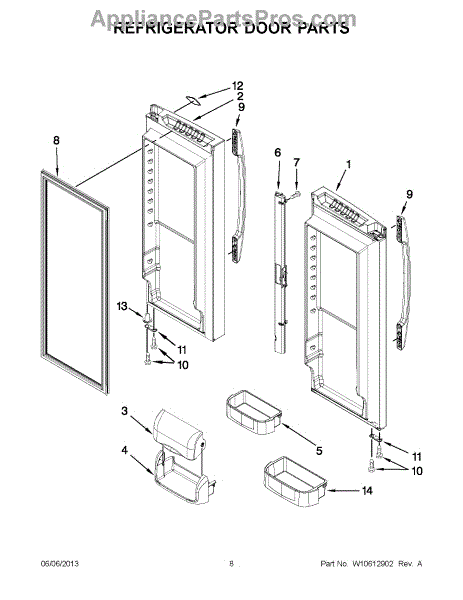

Parts for Whirlpool 5GFC20PRAW00: 04 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Door Bin is an OEM part for Whirlpool refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for organized and accessible storage of items like condiments, beverages, and smaller food packages. The door bin is easy to install and fits securely onto the door to enhance the overall storage capacity of the refrigerator. The bin is approximately 14 x 7 inches.

Over time, frequent use and accidental impacts can cause damage to the bin, compromising its ability to hold items securely. Damage can affect its ability to hold items securely, leading to potential spills or reduced storage efficiency.

Symptoms of a bad door bin include:

• Cracks or splits in the plastic
• Difficulty in securely attaching the bin to the door
• Items falling out or not being held properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Grey for Right Hand Door

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates an seal between the refrigerator doors and the body, helping to maintain proper temperatures inside. The gasket is a soft, pliable material designed to tightlen without allowing air or warm moisture to infiltrate the refrigerator. Measures approximately 39 by 16 inches

Causes of a bad door gasket include cracking, splitting, or compression from repeated opening and closing of the door over time. Deterioration leads to diminished sealing and temperature control performance.

Symptoms of a bad door gasket are:

• Difficulty keeping items cool or frozen
• Frost or moisture buildup between the door and refrigerator body
• Higher energy costs from the refrigerator working overtime
• Food odors transferring between compartments

This OEM Whirlpool gasket is also compatible with Maytag, Jenn-Air, Amana, Norge, Gibson, Kelvinator, and some Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
