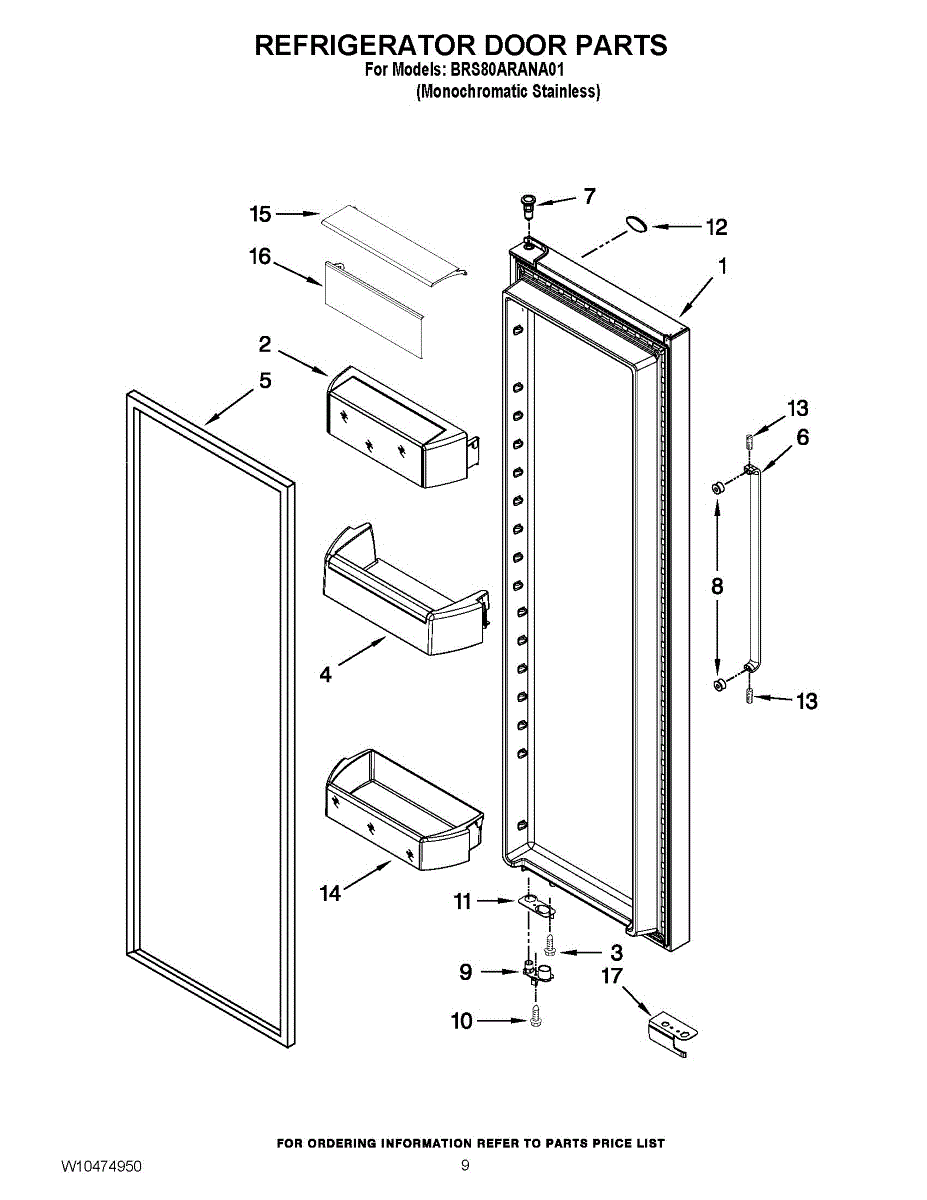

Parts for Whirlpool BRS80ARANA01: 06 - Refrigerator Door Parts

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Closure Cam is an OEM replacement part for Whirlpool refrigerators. It is a small lever located inside refrigerator doors that engages the latch bolt when closing. The closure cam ensures doors are securely fastened shut to maintain optimal cooling temperatures.

Causes of a bad closure cam can include worn or loose mounting points preventing engagement, cracked or broken lever components, or door latch mechanisms that inhibit full closure.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing fully or latching securely
• Cool air escaping around door edges
• Higher energy bills from excessive compressor run times
• Interior condensation or frost buildup from improper seals

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

This replacement bracket secures and supports a component in your appliance. Replace a bent, cracked, or missing bracket to restore proper alignment and stable mounting, helping reduce vibration, rattling, and premature wear on connected parts. What it does:

• Holds the related component firmly in place
• Helps maintain correct alignment of the assembly
• Reduces unwanted movement, vibration, and noise
• Common signs it may be needed: loose or shifting component, rattling sounds, visible damage, or a missing bracket

• 1 bracket

• Disconnect power and shut off water or gas supply before servicing
• Wear cut-resistant gloves; brackets and surrounding panels may have sharp edges
• Note the original orientation and reuse existing fasteners as applicable
• After installation, verify alignment and secure fit per your model's parts diagram

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

Gallon size. Color: white. Measures about 17 inches wide by 4 inches high by 8 inches deep.

This replacement lid fits the refrigerator utility/bin drawer and restores a secure cover to keep stored items contained and organized. It replaces cracked, broken or warped lids so the bin functions as intended. What it does:

• Covers and protects items stored in the utility/bin drawer
• Replaces lids that are cracked, chipped or no longer latch properly
• Helps prevent items from shifting or falling into other compartments
• Restores a proper seal and alignment of the utility/bin cover

• Unplug or disconnect power to the appliance before servicing for safety
• Remove the bin/drawer per the manufacturer instructions to access the lid
• Align hinge tabs or mounting points and snap or fasten the lid into place
• Handle carefully; plastic edges or mounting points can be fragile during installation

This cover-wire protects and organizes a machine's wire harness to help prevent chafing and accidental contact with hot or moving parts. It keeps wiring routed and out of the way for safer, more reliable appliance operation. What it does:

• Shields wiring from abrasion and contact with sharp edges or moving components
• Helps prevent intermittent electrical faults caused by rubbing or pinched wires
• Keeps harnesses neatly routed for easier service and reduced strain on connections
• Useful when you see visible wear on insulation or wires rubbing against chassis parts

• One cover-wire as shown

• Disconnect power to the appliance before inspecting or replacing wiring components
• Verify correct routing and orientation; secure into existing clips or mounting locations
• Do not splice, modify, or stretch the part; replace if damaged
• If you see melted insulation, burnt wiring, or connector damage, replace affected wiring/components per OEM guidance
