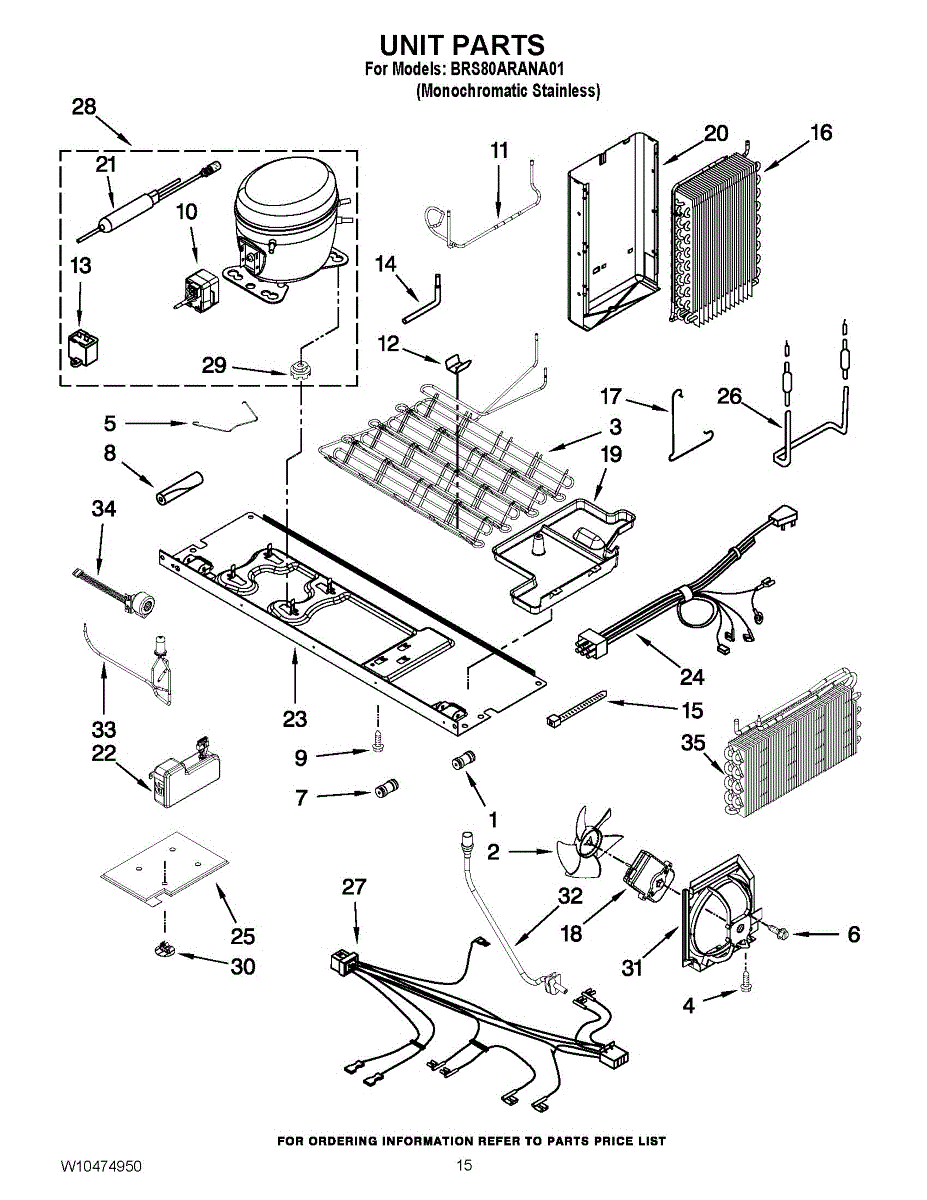

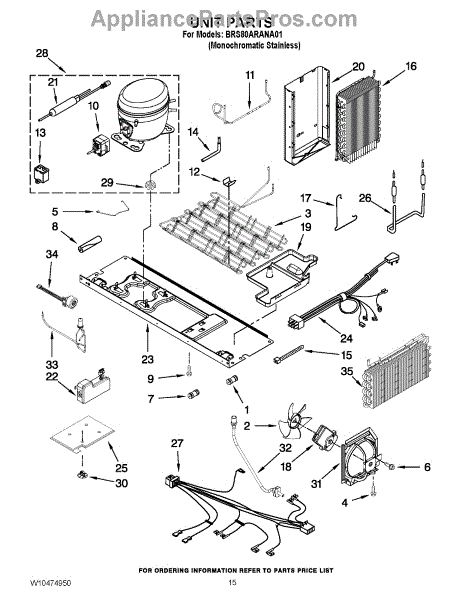

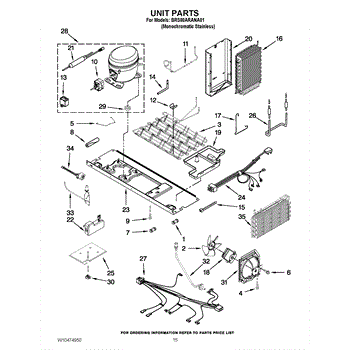

Parts for Whirlpool BRS80ARANA01: 09 - Unit Parts

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed

This 5SP start device engages the refrigerator's compressor at power-up and helps safeguard it during startup. Replacing a weak or failed start device can restore cooling and eliminate repeated clicking or brief humming from the compressor. What it does:

• Works in the compressor start circuit to help the compressor start and then disengage from the run circuit
• Helps protect the compressor during hard-start conditions
• Typical failure symptoms include no cooling, compressor not running, rapid clicking, or a brief hum followed by shutoff
• Show heat damage or discoloration at the connector or housing

• Disconnect power and allow the compressor area to cool before servicing
• Access the compressor compartment; note/photograph wire positions, unplug the harness, and pull the device straight off the compressor pins
• Inspect compressor terminals and the harness connector; repair any burnt or loose terminals before installing the new device
• If your model uses a separate run capacitor, transfer and reconnect it exactly as before; fully seat the new device on the compressor pins and restore power

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

This inverter box is the control module that converts and regulates power for the compressor motor in compatible refrigerators, enabling proper compressor operation and efficient cooling performance. What it does:

• Supplies and regulates the variable power signal to the refrigerator compressor motor
• Helps the compressor start and run at the correct speed for temperature control
• Can cause no cooling, intermittent compressor operation, or frequent start/stop if faulty
• Works with the main control and compressor to maintain stable refrigeration performance

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the module carefully and avoid contact with circuitry; observe ESD precautions if available
• Verify connectors and mounting position match the original before finalizing installation

This replacement power cord restores the electrical connection between your appliance and the wall outlet, helping bring power back to a unit with a damaged or worn cord. Simple swap for a visible cord or plug failure. What it does:

• Supplies mains power to the appliance so it can run.
• Replaces cords that are frayed, cut, burned, or have exposed wires.
• Resolves intermittent power loss caused by a damaged cord or plug.
• Prevents electrical hazards from compromised insulation or connectors.

• Always disconnect power at the breaker and before starting.
• Replace the cord using the existing mounting points and strain relief; do not alter wiring colors or connections.
• If the plug type or cord length must match a specific outlet or installation, before installing.

This heating element assembly restores heat to your dryer so clothes dry efficiently and cycle times return to normal. It replaces a failed or intermittent heater to help eliminate no-heat or low-heat drying problems. What it does

• Produces the heat needed to dry laundry during a dryer cycle
• Replaces a broken or burnt-out element that can cause no-heat or long dry times
• Works with the dryer's thermal cutoffs and cycling thermostat to regulate temperature
• Helps prevent overheating when used with functioning safety thermostats

• One heating element assembly

• Disconnect power before servicing; this is an electrical component
• Inspect and replace related safety thermostats or fuses if they show damage

The Wire Harness is an OEM part for Whirlpool-brand side-by-side refrigerators. It facilitates connection between many internal control boards and components.

Symptoms of a bad wire harness include:

• Faulty or intermittent operation of light fixtures
• Error codes displayed for no reason
• Random component failures or malfunctions
• Buzzing noises emitting from electrical areas

As the connection backbone inside refrigerators, wire harnesses endure years of constant vibration and flexing from icemakers and cooling fans. Causes of failure are typically cracks developing in older insulation from normal wear.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side models. Do not cut or shorten any wires without verifying the wire function first.

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

The DRAIN TUBE is an OEM part specifically engineered for Whirlpool refrigerators. This essential component plays a crucial role in efficiently removing excess water or condensation from the refrigerator. Its precise design and compatibility ensure proper fitting and functionality within the appliance, preventing moisture buildup and potential water damage.

A damaged or clogged drain tube can result in issues related to excess moisture within the refrigerator. Causes of a malfunctioning drain tube might include blockages due to debris accumulation, physical damage, or wear and tear over time, leading to inadequate drainage or water pooling.

Symptoms of a faulty DRAIN TUBE may include:

• Water pooling or leakage inside the refrigerator
• Excessive condensation or moisture buildup
• Inadequate drainage resulting in water accumulation in the refrigerator

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This solenoid valve coil energizes the refrigerant service valve to help control refrigerant flow in compatible refrigeration systems. Replaces a worn or failed coil to restore valve actuation and reliable cooling system operation. What it does

• Energizes the refrigerant service valve so the valve can open or close when the system calls for it
• Common replacement when the valve won't actuate or the compressor cycle is abnormal
• Helps stop intermittent cooling caused by a stuck or non-responsive valve coil
• Fits into the valve assembly and provides the magnetic force needed for proper valve movement

• Disconnect power to the appliance before servicing to prevent shock or unintended compressor operation
• Inspect the valve and connector for corrosion or damage; replace the valve if body damage is found

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
