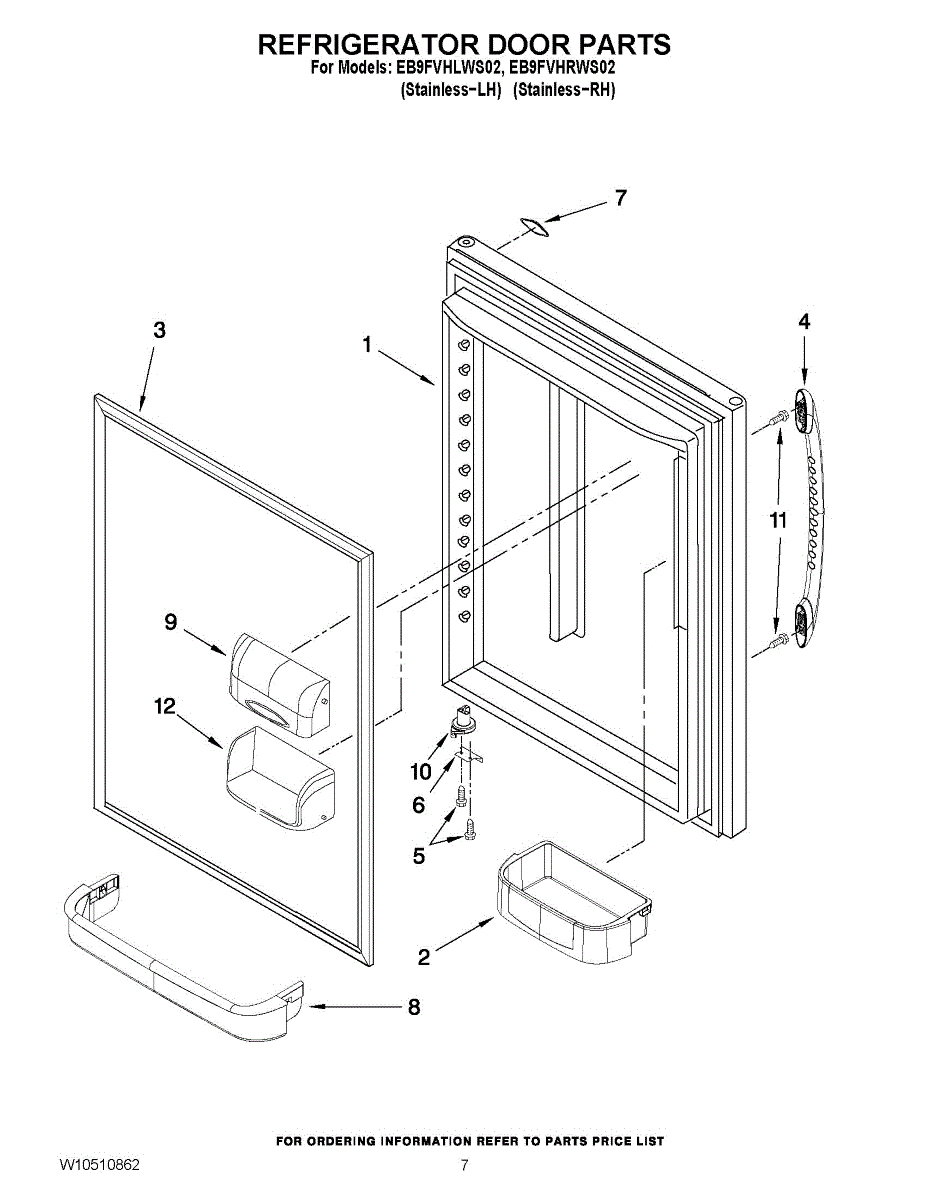

Parts for Whirlpool EB9FVHLWS02: 05 - Refrigerator Door Parts

This clear refrigerator door bin snaps into the inner door liner to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure door storage and keep frequently used items organized and within reach.

• Provides removable shelf storage on the refrigerator door
• Replace if the bin is cracked, warped, or has broken locking tabs
• Common symptoms: bin falls off, won't stay seated, or won't install securely
• Restores proper door capacity and helps prevent spills

• Remove the old bin by lifting up and out of the door slots
• Align the new bin's hooks with the door slots and press down firmly until fully seated
• Ensure both ends are fully engaged; test with a light load before filling
• Distribute weight evenly and avoid overloading

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator door gasket replaces a worn seal to restore a tight, even closure around the door. A proper seal keeps cold air in and moisture out, helping maintain temperature, reduce frost, and minimize run time. What it does:

• Forms a tight seal between the door and cabinet frame
• Helps maintain set temperatures and reduce moisture intrusion
• Resolves frost or condensation at the door and frequent compressor cycling
• Common signs: torn, cracked, or warped gasket; gaps; door not sealing smoothly

• Includes: 1 door gasket

• Disconnect power before servicing; remove or secure contents for safety
• On many models, loosen the inner-liner screws or pull the old gasket from the retainer/channel to remove
• Warm the new gasket (warm water or low heat from a hair dryer) to relax shipping folds
• Seat corners first, then press the rest into the retainer; verify seal with a paper-slip test and adjust as needed

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This shelf trim is the molded edge piece for your refrigerator shelf. It snaps in place to restore a clean, secure lip that helps keep items in place and limits spills from reaching shelves below. What it does:

• Attaches to the edge of a refrigerator shelf to create a finished barrier
• Helps retain items and contain minor spills
• Restores stability when the original trim is cracked or missing
• Common symptoms: broken or loose trim, items sliding off the shelf, trim won't stay attached

• 1 shelf trim

• Disconnect power and remove food from the affected shelf before servicing
• Lift out the shelf or bin and place it on a flat, protected surface
• Release the old trim's tabs and slide or unsnap it from the shelf—avoid forcing or flexing
• Align the new trim and press until fully seated; reinstall the shelf or bin

Color: clear. Measures about 11 inches wide by 7 inches high.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items
