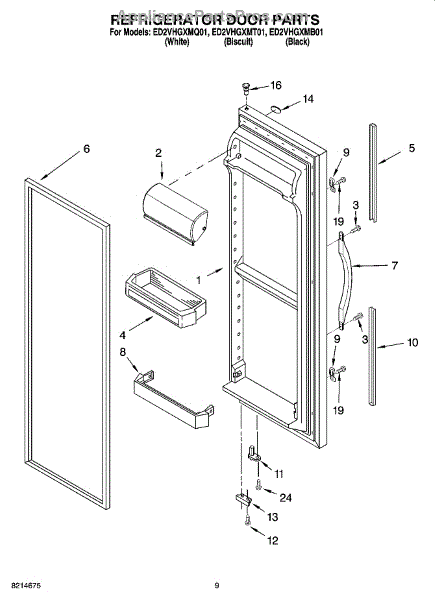

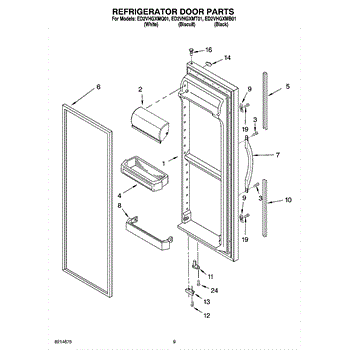

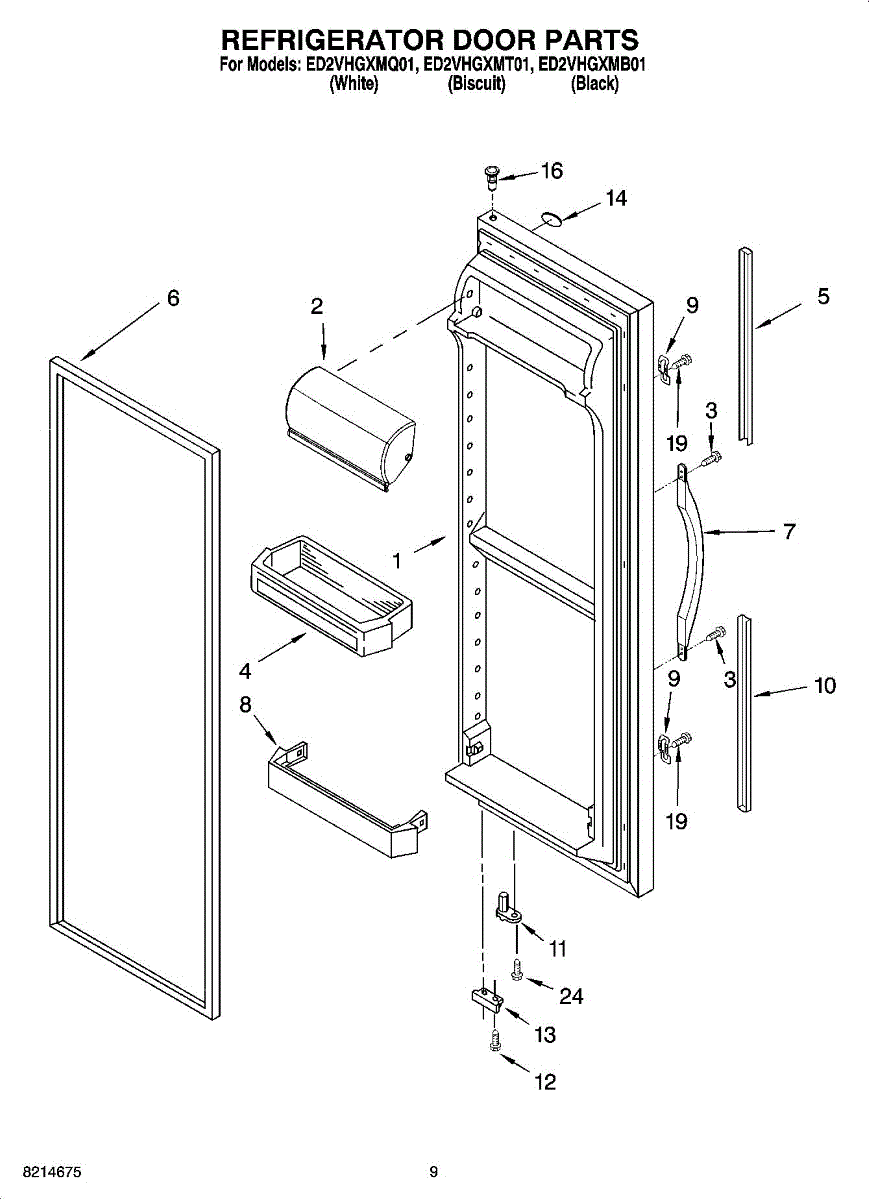

Parts for Whirlpool ED2VHGXMT01: 06 - Refrigerator Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin attaches to the inside of the refrigerator door, offering convenient storage for condiments, bottles, and other small or frequently accessed items. By maximizing the usable space within the refrigerator, this door shelf bin helps keep your refrigerator organized and items within easy reach.

Common causes for these issues can stem from overloading the bin beyond its weight capacity, accidental damage from items being placed too forcefully, or the natural aging of plastic materials leading to brittleness and cracks.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic
• The bin becoming loose or failing to attach properly to the door
• Visible warping or deformation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the perimeter of the refrigerator door, ensuring that cold air stays inside and warm air stays out. It helps maintain the refrigerator's efficiency by preventing air leaks, which can lead to temperature fluctuations and increased energy consumption.

Causes of a bad gasket can include regular wear and tear, frequent opening and closing of the door, or exposure to extreme temperatures.

Symptoms of a bad refrigerator door gasket include:

• Warm spots inside the refrigerator
• Excessive frost buildup
• Increased energy consumption
• The door not sealing properly or appearing misaligned

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. This black gasket ccreates a seal around the door perimeter, helping maintain proper cooling and humidity levels inside the fridge.

Causes of a bad door gasket can include cracks, compression set, or decomposition of the sealing material over repeated use and exposure. Age and general wear also contribute to deterioration.

Symptoms of a bad door gasket include:

• Cool air leaking noticeably around the door seal
• The door not closing flush or tightly against the cabinet
• Fogging or frost developing inside near the door
• Warm spots felt along the gasket perimeter

This OEM Whirlpool part is compatible with other brands including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and some Kenmore refrigerators.

White. For almond order 2186649N. For black order WP2186649B.

Black. For white order 2186649W. For almond order 2186649N.

The Door Shelf is an OEM replacement part for Whirlpool refrigerators. Located on the interior fridge door, it provides a sturdy resting place for storing condiments, beverages, and other small items conveniently within reach. The shelf measures about 17 inches wide by 4 inches high by 5 inches deep.

Causes of a damaged door shelf can include sagging or deflection from long-term weight loads. Cracks may also develop in shelf material from repeated door openings/closings exerting stress over many years of use.

Symptoms include:

• Visible cracks and crevices presenting snagging hazards
• Inability to hold modest item weights without bowing
• Shelves becoming unmounted or falling loose inside doors
• Disorganization from lack of dedicated storage surfaces

Compatible models include Maytag, Jenn-Air, KitchenAid, and select GE refrigerators.

This trim mounting clip secures appliance exterior trim pieces to the cabinet, restoring proper fit and preventing loose or rattling trim. Use it to replace a missing, bent, or broken clip so panels sit flush and stable. What it does:

• Holds appliance trim or decorative panels in place for a clean, finished appearance
• Prevents trim from shifting, vibrating, or creating gaps during operation
• Replaces a damaged or missing clip that can cause loose or uneven trim
• Works as a direct-fit fastener where a small stamped clip is required

• Designed for simple replacement—clip typically snaps into trim or cabinet slot; no special tools usually required
• Disconnect power to the appliance and follow OEM safety guidance before servicing nearby components
• Inspect surrounding trim and fasteners for damage and replace any additional broken clips for a uniform fit

White. Lower.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Black

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
