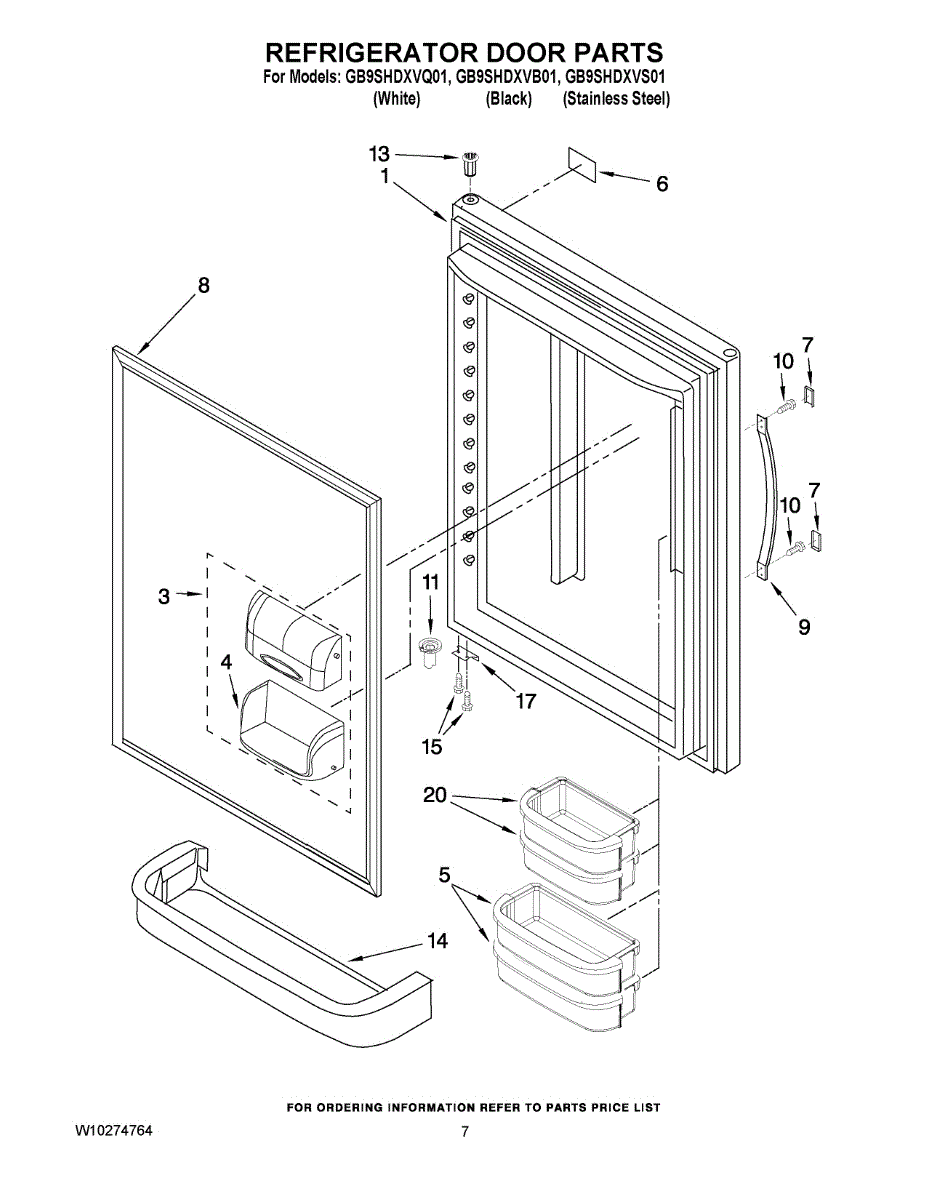

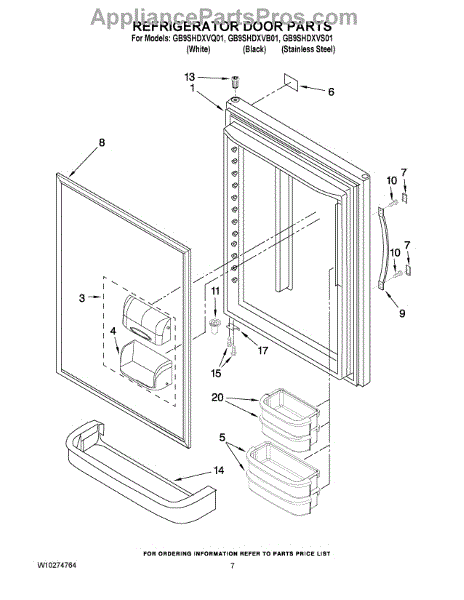

Parts for Whirlpool GB9SHDXVB01: 04 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked, broken, or missing dairy tray on your refrigerator door. This bin installs on the door to organize butter and small items in one spot.

Replacement door bin for refrigerator door storage. Installs on inner door to hold condiments, jars, and bottles. Replaces cracked or broken bins.

Replace a worn door gasket to restore an airtight seal, keep cold air in, reduce frost, and improve efficiency. Verify fit with your model number.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators, designed to seal the door of the refrigerator compartment, ensuring an airtight closure. This door gasket plays a crucial role in maintaining the efficiency of the refrigerator by preventing cold air from escaping and warm air from entering.

Common causes for a Refrigerator Door Gasket to fail include normal wear and tear from opening and closing the door, damage from cleaning or misuse, and aging of the material, which can lead to hardening and loss of elasticity.

Symptoms of a bad Refrigerator Door Gasket include:

Noticeable gaps or tears in the gasket
The refrigerator door does not close as tightly as it should, or it requires more force to close.
Condensation or frost buildup around the door edges
An increase in energy consumption.


Black refrigerator door handle installs on the exterior door for opening and closing. Replace if cracked, broken, loose, or missing grip hardware.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped, lost, or damaged.

Black plastic cam that the refrigerator door rides on to open and close smoothly. Replace if cracked, worn, or broken causing door misalignment issues.

White plastic door closure cam installs at the bottom hinge of your refrigerator door. Replace if cracked, worn, or broken to restore proper alignment.

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

White plastic bushing that sleeves the hinge pin where your refrigerator door pivots. Replace when cracked, worn, or missing to restore smooth door swing.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

White door stop that limits how far your refrigerator door swings open. Replace if broken, cracked, or missing to prevent door overextension and damage.

Clear plastic door bin snaps into refrigerator inner door liner to hold bottles, jars, and condiments. Replace cracked, broken, or missing bins.
