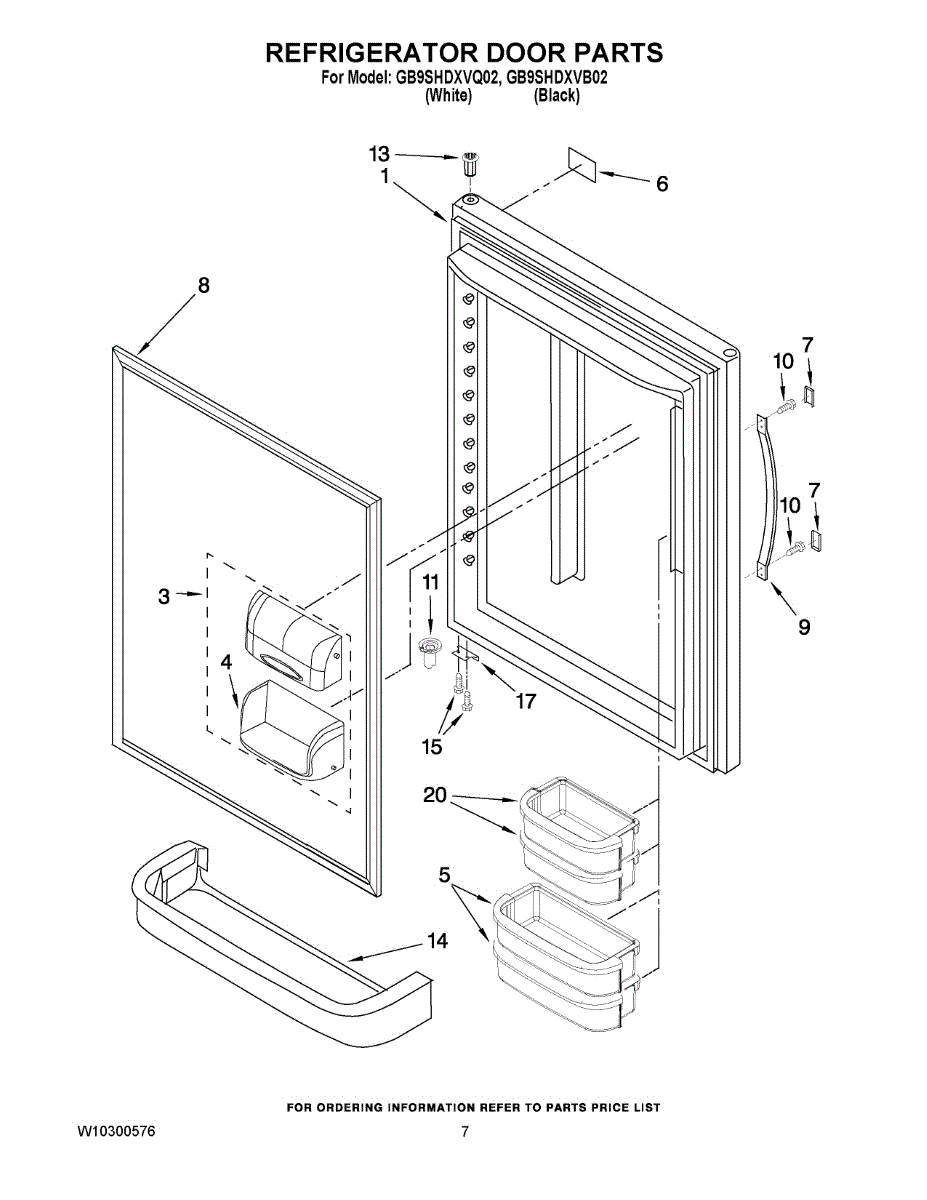

Parts for Whirlpool GB9SHDXVB02: 04 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator door gasket replaces a worn seal to restore a tight, even closure around the door. A proper seal keeps cold air in and moisture out, helping maintain temperature, reduce frost, and minimize run time. What it does:

• Forms a tight seal between the door and cabinet frame
• Helps maintain set temperatures and reduce moisture intrusion
• Resolves frost or condensation at the door and frequent compressor cycling
• Common signs: torn, cracked, or warped gasket; gaps; door not sealing smoothly

• Includes: 1 door gasket

• Disconnect power before servicing; remove or secure contents for safety
• On many models, loosen the inner-liner screws or pull the old gasket from the retainer/channel to remove
• Warm the new gasket (warm water or low heat from a hair dryer) to relax shipping folds
• Seat corners first, then press the rest into the retainer; verify seal with a paper-slip test and adjust as needed

This door gasket seals the dishwasher door opening to keep wash water and moisture inside the tub. A fresh, flexible seal helps prevent leaks and improves cleaning performance by maintaining proper pressure and heat.

• Creates a watertight seal between the tub and door perimeter
• Helps prevent leaks at the bottom and sides of the door
• Helps resolve symptoms like water on the floor, moisture around the door, long dry times, or visible tears/flattening of the old gasket
• Restores proper door compression and wash chamber containment

• Disconnect power and turn off water supply before service
• Remove the old gasket from the channel; clean the groove of debris and residue
• Press the new gasket evenly into the channel, centering at the top and working down both sides
• Close the door to help seat the gasket; a short run cycle may help it conform

This genuine-style replacement door handle restores safe, easy grip and the original look to your refrigerator door. Durable black finish resists everyday wear so the handle looks and functions like new. What it does:

• Provides the primary grip for opening and closing the refrigerator door
• Replaces a cracked, loose, broken, or missing handle to improve door control
• Restores proper hand clearance and prevents direct contact with the door edge
• Helps maintain appliance appearance with a factory-style fit and finish

• 1 door handle (black)

• Turn off power to the appliance or unplug before starting work
• Basic hand tools typically required; handle fastens with screws or clips — keep removed hardware
• Align handle to door mounting points and secure firmly; do not overtighten

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This clear refrigerator door bin snaps into the inner door liner to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure door storage and keep frequently used items organized and within reach.

• Provides removable shelf storage on the refrigerator door
• Replace if the bin is cracked, warped, or has broken locking tabs
• Common symptoms: bin falls off, won't stay seated, or won't install securely
• Restores proper door capacity and helps prevent spills

• Remove the old bin by lifting up and out of the door slots
• Align the new bin's hooks with the door slots and press down firmly until fully seated
• Ensure both ends are fully engaged; test with a light load before filling
• Distribute weight evenly and avoid overloading
