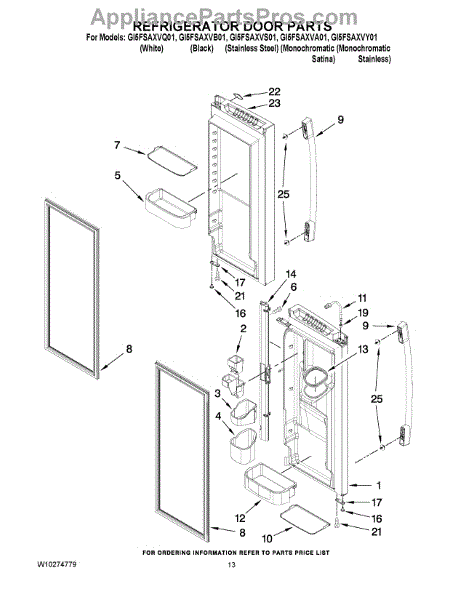

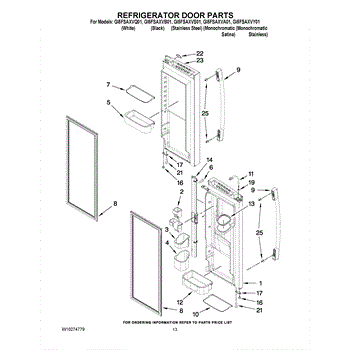

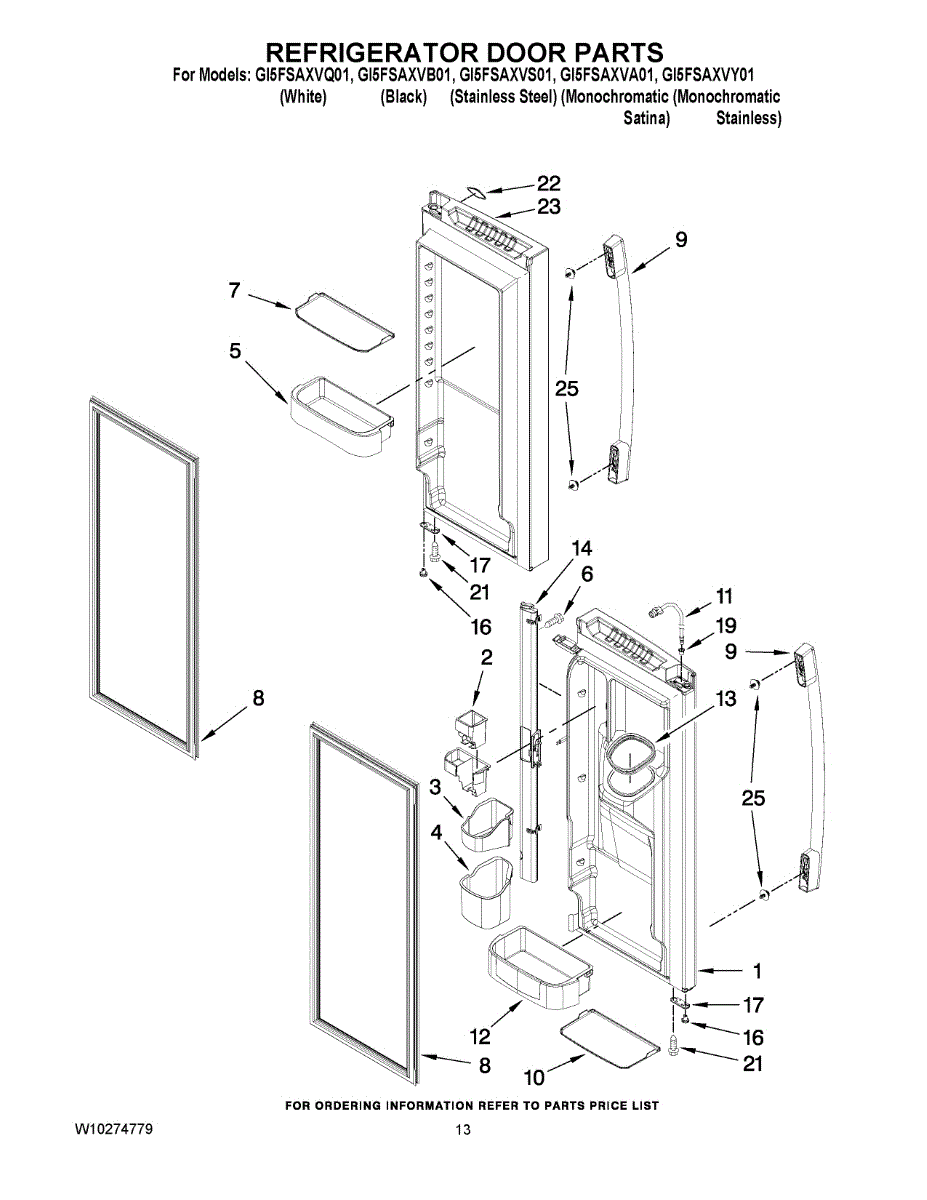

Parts for Whirlpool GI5FSAXVB01: 07 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This dispenser drawer bucket is the removable storage bin that collects and holds dispensed ice or contents from the refrigerator dispenser. It restores secure, easy access to the dispenser storage area and helps contain spills. What it does:

• Replaces a cracked, damaged, or missing dispenser drawer bucket to restore proper containment
• Holds dispensed ice or small refrigerated items in the dispenser drawer area
• Prevents leaks and helps keep the dispenser area tidy when seated correctly
• Provides an OEM-fit replacement that aligns with the dispenser drawer tracks and latch

• One dispenser drawer bucket

• Remove power to the appliance or disable the dispenser per the manufacturer instructions before servicing
• Lift out the old bucket by releasing any retaining clips or latches, then slide the new bucket into the drawer track until it clicks into place
• Handle with care to avoid damaging plastic tabs and alignment features
• If the bucket does not seat easily, inspect surrounding trim or guides for obstructions before forcing

This dispenser drawer bucket replaces a cracked or damaged drawer bin so the dispenser holds ice or other contents securely and slides closed. It restores a smooth, functional dispenser drawer without replacing the whole assembly. What it does:

• Replaces a broken, cracked or worn dispenser drawer bucket so the drawer can hold contents without leaking or spilling
• Helps the dispenser drawer seat and slide properly for reliable opening and closing
• Prevents loose debris or ice from falling into the dispenser cavity
• Restores the original fit and function of the dispenser drawer area

• 1 dispenser drawer bucket

• Disconnect power to the appliance before beginning repairs; shut off water supply if applicable
• Remove the dispenser drawer assembly to access and replace the bucket
• Use common hand tools; handle plastic parts carefully to avoid cracking during install
• Secure mounting before reassembling the drawer and restoring power/water

The Bin Cantilever is an OEM part for Whirlpool refrigerators. It is designed to support and hold the refrigerator's interior storage bins, providing stability and easy adjustment for optimal storage organization.

Causes of a bad bin cantilever can include wear and tear from regular use, accidental damage from heavy loads or impacts, and stress fractures over time. A malfunctioning bin cantilever can lead to instability and difficulty in arranging the bins within the refrigerator.

Symptoms of a bad bin cantilever include:

• Bins not staying in place
• Difficulty adjusting bin positions
• Noticeable cracks or breaks in the cantilever
• Bins tilting or falling out of alignment

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

This is a replacement insulation/sound-dampening mat designed to fit under compatible dishwashers and reduce vibration and noise while providing a cushioning barrier. It helps restore quieter operation and prevents rubbing against the cabinet. What it does

• Cushions the dishwasher base to reduce rattling and vibration noises during operation
• Dampens sound transmitted to surrounding cabinetry and floors
• Helps keep the dishwasher base from rubbing directly on the cabinet or flooring
• Can help prevent minor scuffing or wear where the appliance contacts the cabinet floor

• One replacement mat

• Disconnect power and water supply before beginning any work
• Remove the dishwasher toe-kick or pull the unit forward as needed to access the base area
• Position the mat under the dishwasher base; trim only if the OEM instructs and replacement instructions specify

Color: Black

The Door Gasket is an OEM replacement part for Whirlpool side-by-side refrigerators. This black gasket provides a critical moisture and air seal around the refrigerator and freezer door openings.

Causes of failure may involve cracking or degradation from mechanical stresses or chemical exposure over years of use. Temperature fluctuations can also damage sealing integrity.

Symptoms of a defective door gasket include:

• Excessive frost or moisture buildup inside refrigerator sections
• Higher energy bills from inefficient sealing and cooling loss
• Warm air infiltration impacting optimum storage conditions

This gasket it compatible with additional brands like KitchenAid and Roper.

Color: White

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the refrigerator door, ensuring that the cool air stays inside and the warm air stays out. It plays a critical role in maintaining the efficiency and performance of the refrigerator by preventing energy loss.

Over time, door gaskets can wear out, become brittle, or develop cracks and tears. Causes of a bad door gasket include regular wear and tear, exposure to extreme temperatures, or improper cleaning methods that degrade the material.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excess condensation or frost buildup
• The door not sealing properly
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. It forms a tight seal around the refrigerator door, preventing warm air from entering and cold air from escaping, thus maintaining the optimal internal temperature.

Over time, the door gasket can wear out or become damaged, leading to leaks that compromise the refrigerator's efficiency. Causes of a bad door gasket include normal wear and tear, frequent door openings, exposure to extreme temperatures, or physical damage such as cuts or tears.

Symptoms of a bad door gasket include:

• Condensation or frost buildup inside the refrigerator
• Increased energy consumption
• Warm spots inside the refrigerator
• The door not closing properly or sealing tightly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door handle assembly replaces a damaged or worn refrigerator door handle to restore a secure grip and smooth opening. It installs in place of the original handle and matches OEM fit and appearance for compatible units. What it does:

• Provides a solid grip for opening and closing the refrigerator door
• Replaces cracked, loose, or cosmetically damaged handles
• Restores correct alignment so the door closes and seals properly
• Matches factory styling and mounting points for a direct replacement

• Disconnect power and empty the door area before starting to avoid injury or damage
• Typical installation uses basic hand tools (screwdriver/socket) to remove the old handle and secure the new one
• Support the door while loosening/tightening fasteners to prevent strain on hinges
• Do not overtighten screws; follow torque guidance from the appliance manual

This is a replacement appliance handle designed to restore a secure, comfortable grip and the original appearance of your appliance door. It lets you open and close the door safely and reliably when the original handle is damaged or worn. What it does:

• Provides a secure grip for opening and closing the appliance door
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Restores proper alignment and fit where the handle mounts to the door
• Helps prevent further wear or damage from using a compromised handle

• One replacement handle

• Disconnect power to the appliance before beginning any repair
• Verify correct orientation and alignment before tightening fasteners
• Use basic hand tools (screwdriver, nut driver) as required by your model
• Inspect mounting hardware; replace any stripped or damaged screws for a secure fit

Restore a secure, comfortable grip with this black replacement handle. It refreshes the look of your appliance and makes opening the door or drawer feel smooth and confident again when the original handle is cracked, loose, or missing.

• Provides a sturdy handhold to open and close the appliance door or drawer
• Common symptoms: cracked or broken handle, looseness, wobble, or missing handle
• Helps resolve difficulty opening the door due to a damaged or unstable grip
• Color-matched black finish to maintain a consistent appearance

• Disconnect power to the appliance before servicing
• Access the handle's mounting screws from the inner side of the door/drawer; some models require removing inner trim
• Support any glass/inner panel while removing and reinstalling the handle
• Reuse existing hardware where applicable; tighten screws evenly and check operation

This door waterline is the replacement tube that routes potable water through the refrigerator door to the dispenser/ice system, restoring reliable water flow and preventing door-area leaks. What it does

• Carries water from the refrigerator cabinet to the dispenser/ice door assembly.
• Replaces cracked, kinked, or clogged tubing that can reduce dispenser flow or stop water delivery.
• Stops leaks that originate inside or at the door hinge area when the original line is damaged.
• Restores proper water supply to ice makers and chilled water dispensers that draw through the door.

• Disconnect power and shut off the water supply before starting replacement.
• Inspect and, if needed, replace any associated quick-connect fittings or O-rings to ensure a watertight seal.
• Avoid sharp bends or kinks when routing the new tube through the door hinge area.
• After installation, turn the water back on and check all connections carefully for leaks.

Replace a broken or missing refrigerator door bin with this bucket-style shelf to restore secure, convenient on-door storage. It keeps bottles, jars, and condiments organized and easily accessible while maximizing usable space inside your fresh food section.

• Attaches to the molded slots on the refrigerator door to hold small items, bottles, and jars
• Replaces bins that are cracked, warped, discolored, or won't stay seated
• Helps prevent items from tipping or falling when the door opens and closes
• Common symptoms: bin broken or missing, falls off, won't sit level, reduced door storage

• Empty the old bin, lift up to release from door liner tabs, and pull out
• Align the new bin's hooks/tabs with the door slots and press down until fully seated
• Do not force; use the correct bin for the intended door position and avoid overloading
• If working near lights or electrical components, disconnect power for safety

The Ice Chute Seal is an OEM part for Whirlpool refrigerators, specifically designed to maintain the efficiency and functionality of the ice dispenser system. This crucial component creates a tight seal around the ice chute, preventing cold air from escaping the freezer compartment and blocking warm air from entering.

Causes of a bad ice chute seal can include regular wear and tear, exposure to temperature fluctuations, and repeated opening and closing of the ice chute. A compromised seal can lead to air leaks, causing ice to melt or form frost around the dispenser area.

Symptoms of a bad Ice Chute Seal include:

• Frost or ice buildup around the ice chute area.
• Increased energy consumption as the refrigerator works harder to maintain its internal temperature.
• Moisture or water leakage around the dispenser, indicating air leaks.
• Difficulty dispensing ice, possibly due to frost or ice blockages.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A vertical mullion assembly that restores the finished trim along the refrigerator door edge and covers the gap between doors for a clean appearance. Replaces cracked, broken, or loose mullion trim to improve fit and finish. What it does:

• Covers the vertical gap between refrigerator doors and provides a finished interior edge
• Hides and protects any wiring or fasteners routed along the door edge
• Restores proper door trim when the original mullion is cracked, split, or loose
• Helps reduce visible moisture or frost build-up along the door seam caused by damaged trim

• Disconnect power to the appliance before starting any repair to avoid injury
• Typically installs with a few fasteners or snaps into place; keep mounting screws from the original part if reusing
• Handle trim pieces carefully to avoid cracking; use non-marring tools to pry if needed

This door mullion is the vertical flipper rail that mounts to a refrigerator French door. It swings closed to cover the center gap, helping complete the door seal and reduce warm air leaks and condensation between the doors.

• Provides the pivoting center rail that mates with the opposite door to complete the seal
• Replace if cracked, broken, warped, or if the flipper won't fold or spring closed
• Common symptoms: door won't close smoothly, visible gap/light between doors, moisture or frost along the center seam
• Helps restore a proper air seal for consistent cooling performance

• Disconnect power and clear door bins before servicing
• Open the door; release the upper and lower retainers and lift the old mullion off its hinge points
• Position the new mullion, secure the retainers, and verify it pivots and seals correctly
• Check door alignment and gasket contact along the center seam

This refrigerator door flipper mullion is the folding center rail that bridges the gap between the doors. It helps complete the door seal and reduces condensation along the center for better temperature retention.

• Bridges the gap between doors to complete the center seal and improve efficiency
• Folds out of the way when a door opens; flips into place as the doors close
• Helps limit moisture/sweating at the middle of the refrigerator
• Replaces a cracked, loose, or broken mullion that causes air leaks, doors popping open, or poor sealing

• Disconnect power before servicing; remove door bins for access
• Remove mounting screws; lift off the assembly and disconnect the harness if equipped
• Transfer any end caps/brackets; ensure spring orientation and proper wire routing during reassembly
• After installation, verify smooth flipping action and a continuous gasket seal down the center

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

This left door bushing supports a refrigerator/freezer door hinge for smooth, stable operation and helps prevent wear and noise. It restores proper door movement and alignment when the original bushing is worn or damaged. What it does:

• Guides and cushions the door hinge to reduce friction and wear
• Helps stop door binding, sticking, or misalignment
• Reduces squeaks and rattles from a loose or worn hinge area
• Maintains consistent door pivot for reliable opening and closing

• Disconnect power to the appliance before attempting any repair.
• Access may require removing the door or hinge trim; follow manufacturer instructions.
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Color: For white, black and bisque models.
