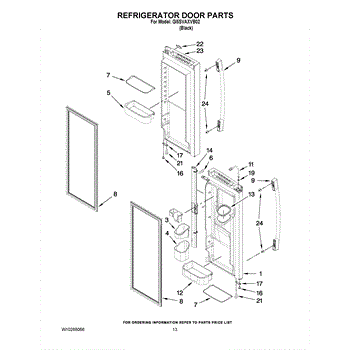

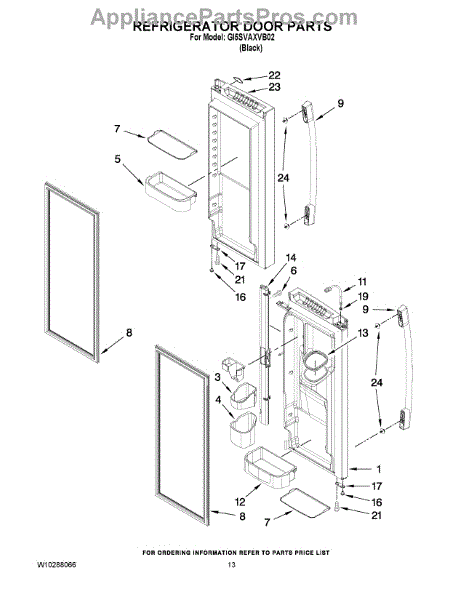

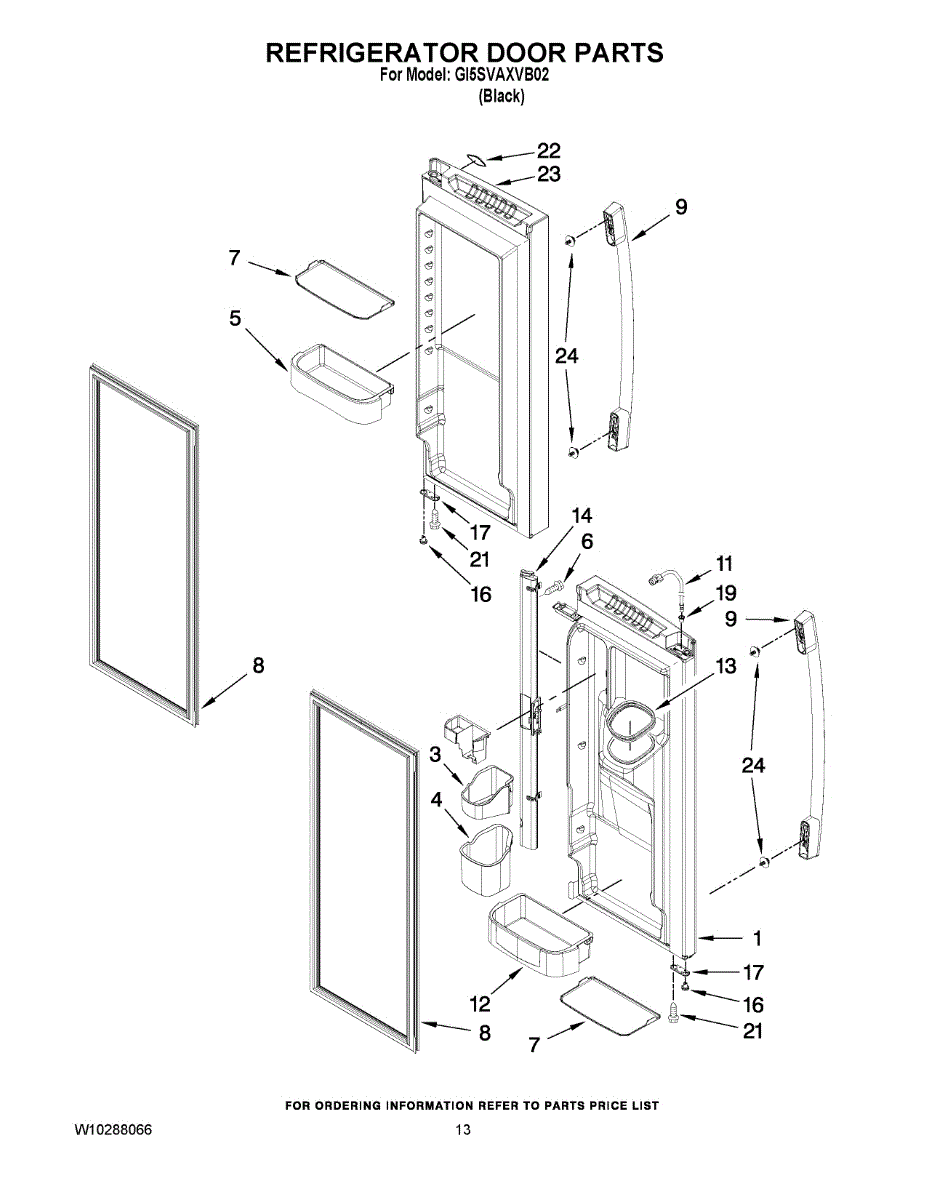

Parts for Whirlpool GI5SVAXVB02: 07 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black

The Door Gasket is an OEM replacement part for Whirlpool side-by-side refrigerators. This black gasket provides a critical moisture and air seal around the refrigerator and freezer door openings.

Causes of failure may involve cracking or degradation from mechanical stresses or chemical exposure over years of use. Temperature fluctuations can also damage sealing integrity.

Symptoms of a defective door gasket include:

• Excessive frost or moisture buildup inside refrigerator sections
• Higher energy bills from inefficient sealing and cooling loss
• Warm air infiltration impacting optimum storage conditions

This gasket it compatible with additional brands like KitchenAid and Roper.

This is a replacement appliance handle designed to restore a secure, comfortable grip and the original appearance of your appliance door. It lets you open and close the door safely and reliably when the original handle is damaged or worn. What it does:

• Provides a secure grip for opening and closing the appliance door
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Restores proper alignment and fit where the handle mounts to the door
• Helps prevent further wear or damage from using a compromised handle

• One replacement handle

• Disconnect power to the appliance before beginning any repair
• Verify correct orientation and alignment before tightening fasteners
• Use basic hand tools (screwdriver, nut driver) as required by your model
• Inspect mounting hardware; replace any stripped or damaged screws for a secure fit

This door waterline is the replacement tube that routes potable water through the refrigerator door to the dispenser/ice system, restoring reliable water flow and preventing door-area leaks. What it does

• Carries water from the refrigerator cabinet to the dispenser/ice door assembly.
• Replaces cracked, kinked, or clogged tubing that can reduce dispenser flow or stop water delivery.
• Stops leaks that originate inside or at the door hinge area when the original line is damaged.
• Restores proper water supply to ice makers and chilled water dispensers that draw through the door.

• Disconnect power and shut off the water supply before starting replacement.
• Inspect and, if needed, replace any associated quick-connect fittings or O-rings to ensure a watertight seal.
• Avoid sharp bends or kinks when routing the new tube through the door hinge area.
• After installation, turn the water back on and check all connections carefully for leaks.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. Positioned within the refrigerator door it provides organized storage for condiments, beverages, and other smaller items. This bin measures approximately 7.5” deep x 14” wide x 3.5” high.

Causes of a bad door shelf bin include normal wear and tear, overloading or misuse of the bin, or impact damage from dropped items.

Symptoms of a bad door shelf bin include:

• The bin cracking, breaking, or becoming dislodged from the door
• Items falling out of the bin easily
• Reduced storage capacity in the refrigerator door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Chute Seal is an OEM part for Whirlpool refrigerators, specifically designed to maintain the efficiency and functionality of the ice dispenser system. This crucial component creates a tight seal around the ice chute, preventing cold air from escaping the freezer compartment and blocking warm air from entering.

Causes of a bad ice chute seal can include regular wear and tear, exposure to temperature fluctuations, and repeated opening and closing of the ice chute. A compromised seal can lead to air leaks, causing ice to melt or form frost around the dispenser area.

Symptoms of a bad Ice Chute Seal include:

• Frost or ice buildup around the ice chute area.
• Increased energy consumption as the refrigerator works harder to maintain its internal temperature.
• Moisture or water leakage around the dispenser, indicating air leaks.
• Difficulty dispensing ice, possibly due to frost or ice blockages.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator door flipper mullion is the folding center rail that bridges the gap between the doors. It helps complete the door seal and reduces condensation along the center for better temperature retention.

• Bridges the gap between doors to complete the center seal and improve efficiency
• Folds out of the way when a door opens; flips into place as the doors close
• Helps limit moisture/sweating at the middle of the refrigerator
• Replaces a cracked, loose, or broken mullion that causes air leaks, doors popping open, or poor sealing

• Disconnect power before servicing; remove door bins for access
• Remove mounting screws; lift off the assembly and disconnect the harness if equipped
• Transfer any end caps/brackets; ensure spring orientation and proper wire routing during reassembly
• After installation, verify smooth flipping action and a continuous gasket seal down the center

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This left door bushing supports a refrigerator/freezer door hinge for smooth, stable operation and helps prevent wear and noise. It restores proper door movement and alignment when the original bushing is worn or damaged. What it does:

• Guides and cushions the door hinge to reduce friction and wear
• Helps stop door binding, sticking, or misalignment
• Reduces squeaks and rattles from a loose or worn hinge area
• Maintains consistent door pivot for reliable opening and closing

• Disconnect power to the appliance before attempting any repair.
• Access may require removing the door or hinge trim; follow manufacturer instructions.
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Color: For white, black and bisque models.
