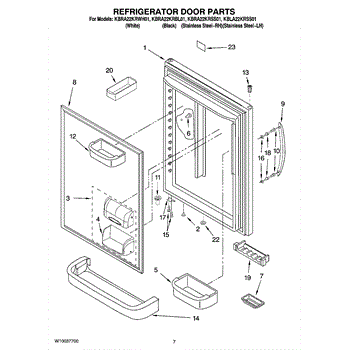

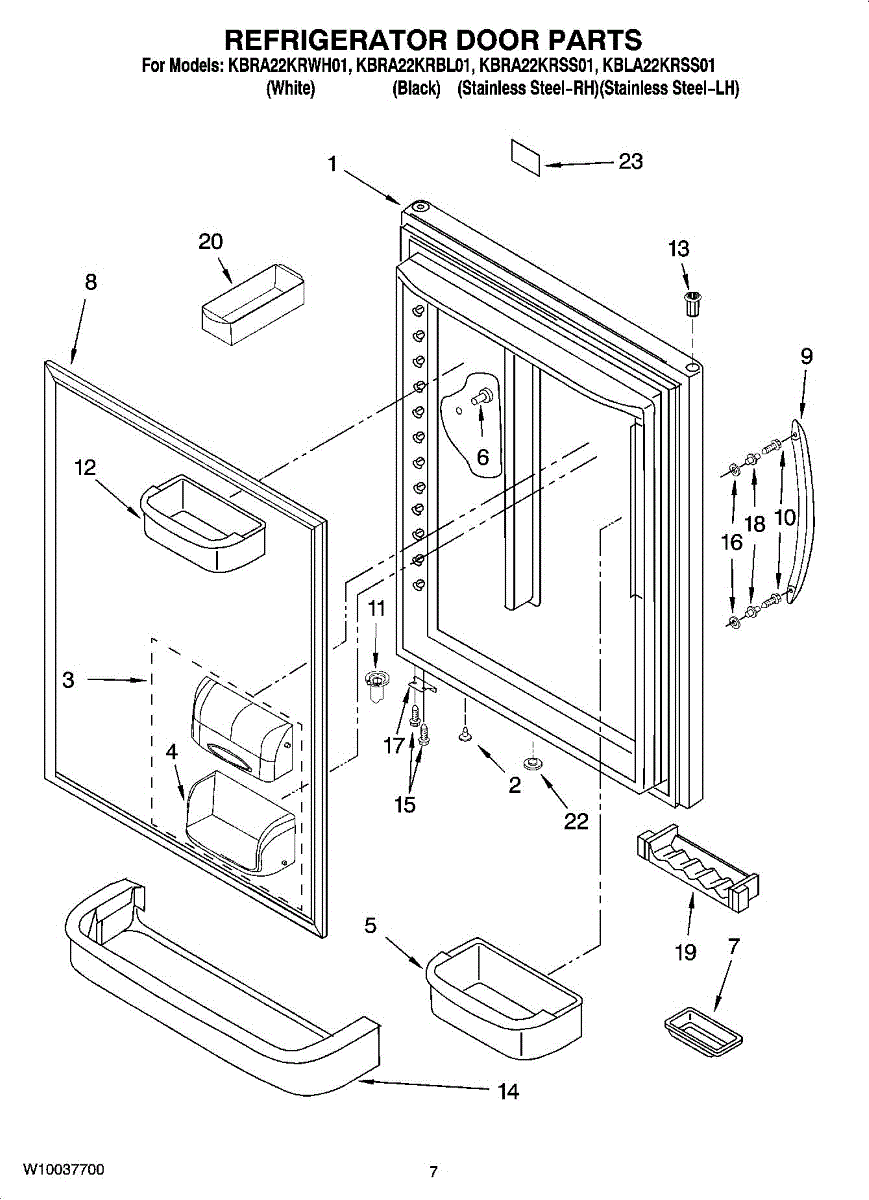

Parts for Kitchenaid KBLA22KRSS01: 05 - Refrigerator Door Parts

Outer door panel for refrigerator. Replaces scratched, dented, or damaged exterior door surface. Restores appearance of refrigerator door.

Vent plug insert for bottom-mount refrigerators. Replaces missing, cracked, or broken vent plugs. Installs in refrigerator cabinet openings.

Black plastic plug that seals unused refrigerator vent openings. Replace if yours is cracked, broken, missing, or damaged to keep out debris.

Replacement flip-up cover for the butter/dairy bin on your refrigerator door. Replaces cracked, broken, or missing covers to keep contents secure.

Replace a cracked, broken, or missing dairy tray on your refrigerator door. This bin installs on the door to organize butter and small items in one spot.

Color: clear. Measures about 14 inches wide by 3-1/2 inches high by 6 inches deep.

This is a small plastic plug or button cap that fills an unused hole on the refrigerator door panel. It provides a finished appearance and prevents moisture or debris from entering the door. Replace this piece if it is missing, cracked, or has fallen out, leaving an exposed hole in the door surface.

White plastic button plug for refrigerator control panels. Covers unused holes or replaces missing, cracked, or broken plugs to restore a clean appearance.

Refrigerator door gasket seals the fresh food compartment to maintain temperature. Replace if torn, cracked, or causing moisture buildup. Verify fit.

Seals the fresh food compartment door to maintain proper temperature and prevent air leaks. Replace if torn, cracked, or not sealing properly. Confirm fit.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Black plastic cam that the refrigerator door rides on to open and close smoothly. Replace if cracked, worn, or broken causing door misalignment issues.

White plastic door closure cam installs at the bottom hinge of your refrigerator door. Replace if cracked, worn, or broken to restore proper alignment.

White plastic bushing that sleeves the hinge pin where your refrigerator door pivots. Replace when cracked, worn, or missing to restore smooth door swing.

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

White door stop that limits how far your refrigerator door swings open. Replace if broken, cracked, or missing to prevent door overextension and damage.

Replacement door can caddy for bottom-mount refrigerators. Secures removable canisters in door compartment. Needed when original is cracked or missing.

Clear plastic egg container that sits on refrigerator shelves. Replace your cracked, broken, or missing egg holder to keep eggs organized and secure.
