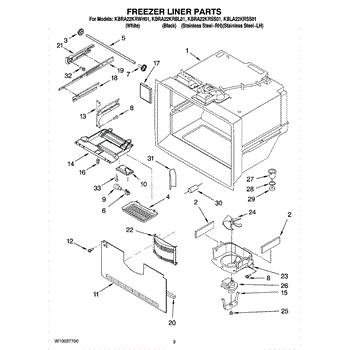

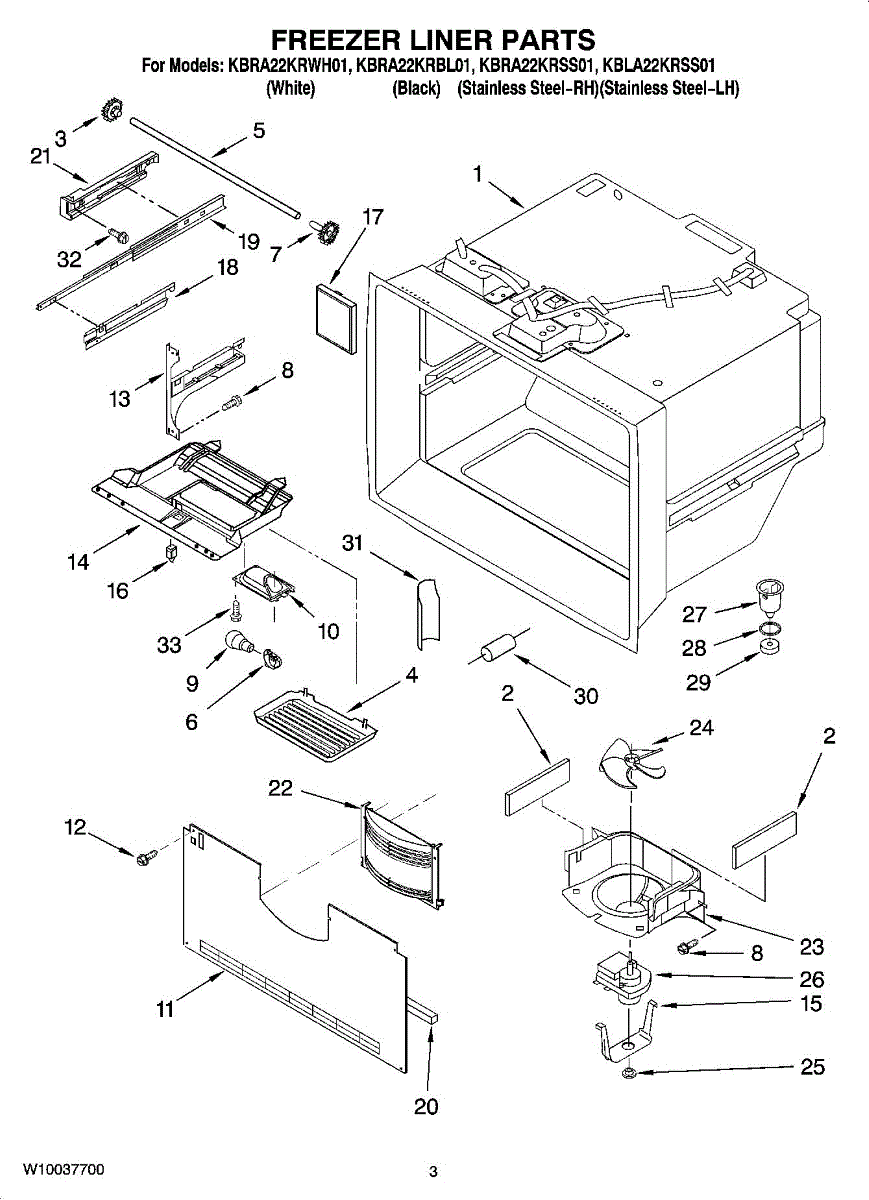

Parts for Kitchenaid KBLA22KRSS01: 02 - Freezer Liner Parts

This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 33-inch shaft-rack replaces the rack support shaft that the dishwasher rack slides on, restoring smooth in-and-out movement and correct rack alignment for easier loading and unloading. What it does:

• Acts as the axle for a dishwasher rack, supporting and guiding rack travel along the tub.
• Restores smooth sliding if the original shaft is bent, worn, or broken.
• Helps eliminate rack misalignment, rubbing, or sticking during use.
• Matches OEM fit and mounting points when used with the correct part number.

• Disconnect power and water to the appliance before beginning any repair.
• Remove the affected rack to access the shaft; keep track of end caps or retaining clips.
• Slide out the old shaft and install the replacement, ensuring clips/end caps are properly secured.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

A small replacement clip that secures the evaporator/fan motor to the freezer evaporator housing, keeping the motor aligned and the fan blade stable for proper airflow. Simple, low-cost fix to restore correct motor mounting. What it does:

• Secures the evaporator/fan motor to the housing to maintain proper alignment and reduce wobble
• Helps prevent noisy operation caused by a loose motor or fan blade
• Keeps the fan blade positioned for consistent airflow across the evaporator
• Compatible with standard evaporator motor mounting applications where this retainer is specified

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access typically requires removing the evaporator cover or rear panel inside the freezer compartment
• Handle evaporator and nearby evaporator fins carefully to avoid damage; work in a frost-free environment if possible

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cradle supports and secures the freezer basket inside the compartment, keeping the basket properly aligned for smooth sliding and storage. Fits the OEM mounting locations and restores original basket support. What it does:

• Holds the freezer basket in the correct position to prevent sagging or misalignment
• Provides a stable mounting point so the basket slides smoothly
• Replaces cracked, broken, or missing bracketry that can cause rattling or uneven basket movement
• Helps restore proper function after impact or wear to the basket support

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove the freezer basket and any obstructions to access the mounting area
• Typically secures with existing screws/clips; retain original fasteners when possible

This freezer basket cradle bracket supports and secures the freezer basket so it slides and rests correctly in the freezer compartment. Replaces a worn or broken cradle to restore proper basket alignment and support. What it does

• Holds the freezer basket in the correct position so the basket slides smoothly on its track
• Keeps the basket from tipping or sagging when loaded
• Prevents the basket from coming loose or falling out of the compartment
• Reduces noise and binding caused by a damaged or missing cradle

• One freezer basket cradle bracket

• Disconnect power to the refrigerator before starting any repair
• Access the cradle by removing the freezer basket and any obstructing panels or shelves
• Fasten with the existing screws or clips; the basket slides smoothly after installation
• Wear gloves and eye protection; for model-specific instructions

This replacement refrigerator door gasket seals the cabinet to maintain consistent temperatures and help keep food fresh. It restores a tight seal to reduce drafts, condensation, and frost buildup around the door. What it does:

• Creates an airtight seal between the door and cabinet to help keep cold air in
• Helps prevent warm spots, excess frost, and water/ice buildup inside the compartment
• Can improve cooling consistency and reduce extra runtime from a leaking seal
• Replaces torn, stretched, or flattened seals that no longer close fully

• Disconnect power to the appliance before starting any work
• Clean the door flange and remove old gasket before fitting the new seal
• Press the gasket evenly into the retainer channel and check that the magnetic edge engages all around
• Allow 24 hours for the gasket to fully seat against the cabinet; reposition if gaps are visible

Restore the clean look and proper ventilation of your microwave with this air grille. It covers the upper front vent opening, helps guide airflow through the vent path, and shields internal components for reliable performance.

• Covers the upper/front vent opening while allowing proper airflow
• Helps secure the charcoal filter on many recirculating models
• Restores appearance and fit when the original grille is cracked or missing
• Common fix for a loose, rattling, or broken vent cover

• Disconnect power to the microwave before servicing
• Open the door (most models), remove the screws along the top edge, and slide the old grille to release its tabs
• Position the new grille, ensure tabs engage fully, and reinstall the screws without overtightening

This evaporator fan shroud directs airflow from the evaporator fan to the refrigerator's cooling coils, improving cold-air circulation and helping maintain even temperatures in the fresh and freezer compartments. What it does:

• Channels airflow from the evaporator fan to the evaporator coils for efficient heat exchange
• Protects the fan motor and blades from contact with ice and debris
• Helps reduce uneven cooling or warm spots caused by disrupted airflow
• Fits into the evaporator compartment and mates with the fan assembly

• Intended for use in the evaporator compartment;
• Disconnect power to the appliance before accessing internal components to avoid shock or injury
• Handle the shroud gently to avoid damaging tabs or mounting points during removal/installation
• Reassemble panels and test cooling operation after installation

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This grommet isolates the refrigerator's fan motor from its mounting bracket to reduce vibration and noise while keeping the motor secure. Replacing worn or missing grommets helps stop rattles and prevents the fan blade from rubbing.

• Cushions the fan motor to maintain proper alignment and clearance
• Absorbs vibration to help reduce humming, buzzing, or rattling sounds
• Helps keep the motor stable so the blade doesn't contact the shroud
• Common signs of failure include excess vibration, noise, or a loose fan motor

• Disconnect power to the refrigerator before servicing
• Access the fan motor area (rear of unit or inside the freezer, depending on model) and support the motor
• Remove mounting hardware and seat the new grommet fully in the bracket/mount
• The fan blade spins freely with even clearance before reassembling and restoring power

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. It is responsible for circulating air over the evaporator coils, which helps to maintain a consistent temperature throughout the refrigerator and freezer compartments. It operates at a power requirement of 115V, 60Hz, and 0.14A, featuring a shaft that measures 1/8" in diameter and 5/8" in length.

Causes of a bad evaporator fan motor can include electrical failures, wear and tear from continuous use, or obstruction from debris that hinders the fan's movement. A malfunctioning fan motor can lead to uneven cooling and compromised performance of the refrigerator.

Symptoms of a bad evaporator fan motor include:

• Inconsistent temperatures in the refrigerator or freezer
• Unusual noises coming from the fan area
• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run

The Thermistor Kit is an OEM part for Whirlpool refrigerators and freezers. This component plays a role in monitoring and controlling the temperature within your appliance. A thermistor is a type of resistor whose resistance changes with temperature changes, allowing the refrigerator's control system to accurately maintain the desired cooling levels based on the readings it provides.

Causes of a bad thermistor can include wear and tear from constant use, exposure to extreme temperatures that can damage the component, or electrical issues such as short circuits.

Symptoms of a bad Thermistor Kit include:

• The refrigerator or freezer is too cold or not cold enough
• The appliance cycles on and off more frequently or for longer periods than normal
• Unexplained changes in temperature settings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement cover shields and secures the freezer temperature sensor, keeping it correctly positioned for accurate temperature feedback. An intact cover helps protect the sensor and maintain proper placement for consistent cooling performance.

• Holds the freezer thermistor in the correct location and orientation
• Protects the sensor from accidental damage or dislodging
• Supports stable temperature readings to the control system
• Replace if the cover is cracked, missing, or its tabs are broken; if the sensor is loose/exposed; or after visible damage

• Disconnect power to the refrigerator before servicing
• Remove shelves/obstructions to access the thermistor area; release or unfasten the old cover
• Seat the thermistor properly, align the new cover, and secure using existing fastener or tabs
• Restore power and verify normal cooling operation

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing
