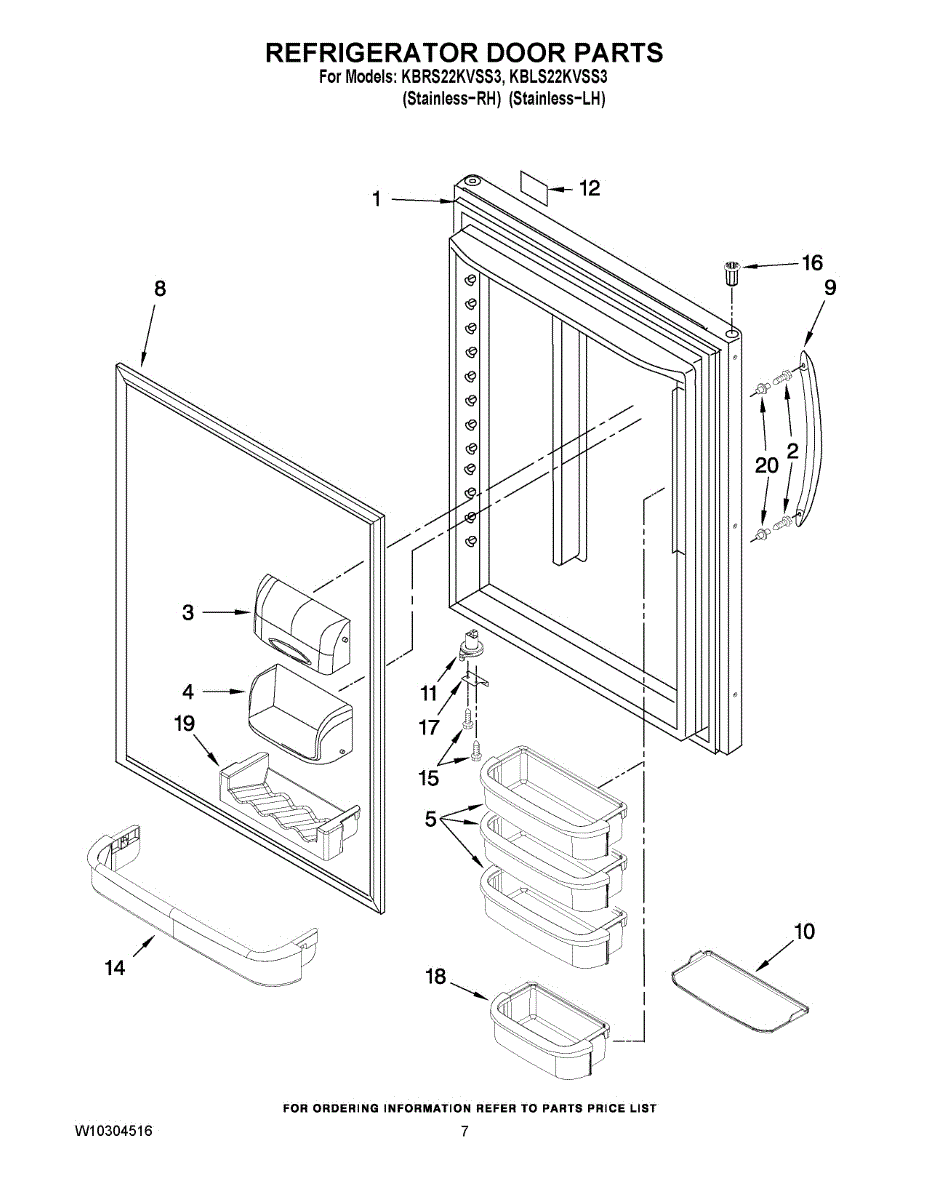

Parts for Kitchenaid KBLS22KVSS3: 05 - Refrigerator Door Parts

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked, broken, or missing dairy tray on your refrigerator door. This bin installs on the door to organize butter and small items in one spot.

Color: clear. Measures about 14 inches wide by 3-1/2 inches high by 6 inches deep.

Refrigerator door gasket seals the fresh food compartment to maintain temperature. Replace if torn, cracked, or causing moisture buildup. Verify fit.

Black handle for refrigerator doors and drawers. Replace a cracked, loose, or missing handle to restore a secure grip and refresh your appliance's look.

This is a gray rubber or textured mat that lines the inside of a refrigerator door bin or drawer. It provides a non-slip surface to keep items from sliding around and helps protect the bin from scratches and spills. Replace this liner if it is cracked, warped, or has become too grimy to clean effectively.

Black plastic cam that the refrigerator door rides on to open and close smoothly. Replace if cracked, worn, or broken causing door misalignment issues.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

Replacement door can caddy for bottom-mount refrigerators. Secures removable canisters in door compartment. Needed when original is cracked or missing.
