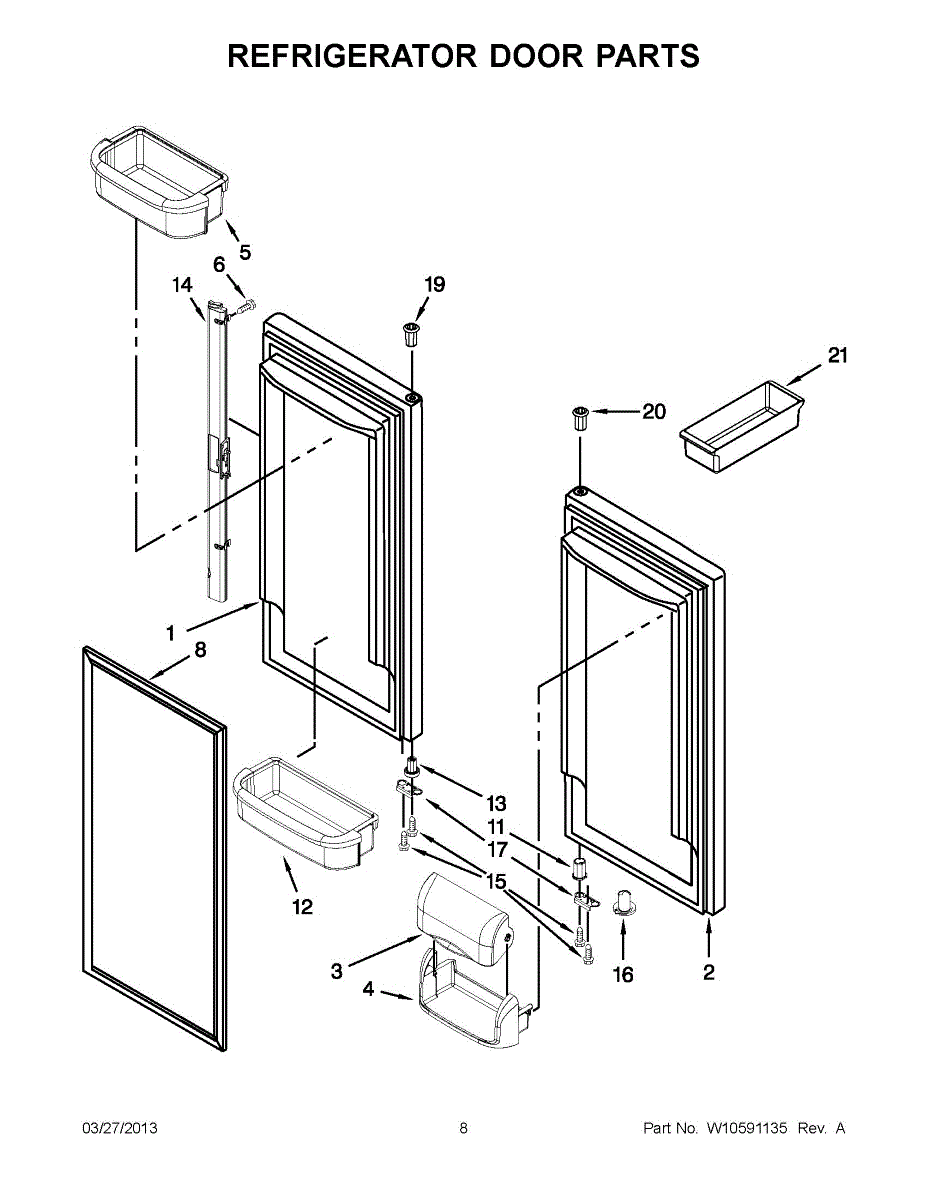

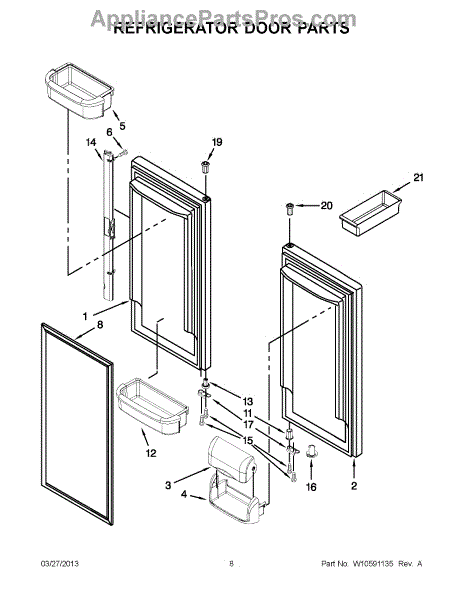

Parts for Kitchenaid KRFC90100B5: 04 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked, broken, or missing dairy tray on your refrigerator door. This bin installs on the door to organize butter and small items in one spot.

Color: clear. Measures about 14 inches wide by 3-1/2 inches high by 6 inches deep.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Refrigerator bottle trivet shelf holds bottles securely in the fridge section. Replace if cracked, broken, or missing to restore proper storage.

Seals your refrigerator's right-hand door to prevent air leaks and maintain temperature. Replace if torn, cracked, or not sealing properly. Confirm fit.

Clear gallon-sized door bin for bottom-mount refrigerators. Replaces cracked, broken, or missing door shelves. Holds milk jugs and large containers.

Replace your refrigerator's mullion rail if it's cracked, broken, or missing. This structural component installs between compartments to support shelving.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Black plastic cam that the refrigerator door rides on to open and close smoothly. Replace if cracked, worn, or broken causing door misalignment issues.

Door stop for bottom-mount refrigerators. Prevents door from over-opening and damaging hinges. Replace if cracked, broken, or missing for proper support.

Color: Black

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

Clear plastic egg container that sits on refrigerator shelves. Replace your cracked, broken, or missing egg holder to keep eggs organized and secure.
