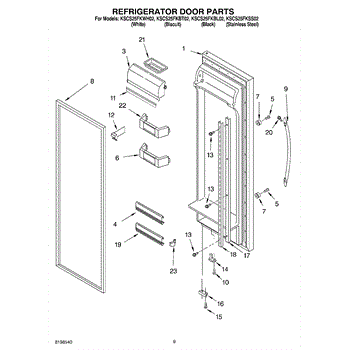

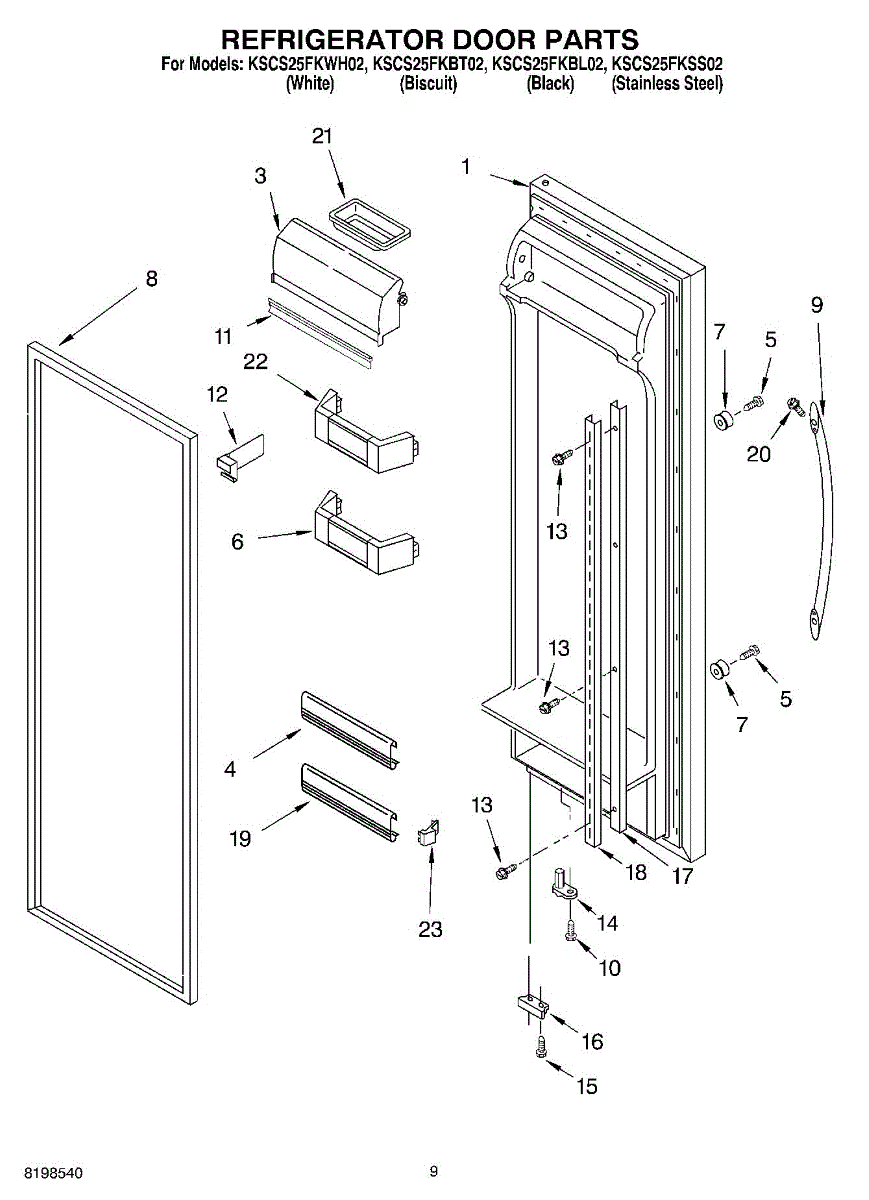

Parts for Kitchenaid KSCS25FKSS02: 06 - Refrigerator Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

Replace a broken or missing door shelf bin to restore secure, convenient storage on your refrigerator's door. This molded bin keeps bottles and condiments organized and within reach, helping prevent spills and shifting as the door opens and closes.

• Attaches to door rails to provide additional storage space
• Holds and organizes bottles, jars, and condiments
• Helps keep items from tipping or sliding during door movement
• Common symptoms: cracked bin, broken tabs, won't stay seated, items falling out

• Empty the door and lift the old bin straight up and out of the mounting slots
• Align hooks/tabs on the new bin with the door slots and press down until fully seated
• Confirm a secure fit before loading items; do not force the plastic
• No tools typically required; handle at room temperature to reduce risk of cracking

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door shelf trim replaces the damaged or worn plastic trim that secures and finishes the front edge of a refrigerator door shelf, restoring appearance and helping keep items in place. What it does

• Replaces cracked, broken or missing door-shelf trim that allows items to fall forward
• Restores a finished look to the refrigerator door interior
• Helps retain bottles and containers on the door shelf edge
• Matches OEM fit and mounting points for straightforward replacement

• One door shelf trim piece as shown

• Typically snaps into the front edge of the door shelf; remove the shelf/bin first if needed
• Inspect mounting tabs for damage and replace bin/shelf if tabs are broken
• Use gentle prying with a plastic tool to avoid scratching surrounding surfaces
• Unplug the appliance or disconnect power if working near electrical components or lights

Color: white. Measures about 18 inches wide by 4 inches high by 7-1/2 inches deep.

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
