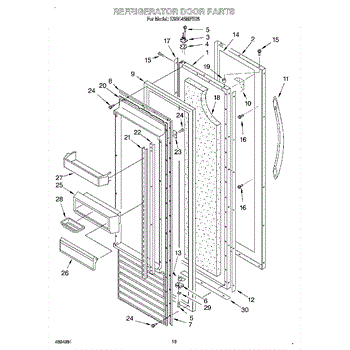

Parts for Kitchenaid KSSC48MFS05: 10 - Refrigerator Door Parts

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bottom hinge assembly replaces a worn or damaged door hinge to restore proper door alignment and operation. It helps the door open and close smoothly and keeps the appliance door stable during use. What it does:

• Provides the pivot point for the lower side of the appliance door so it swings correctly
• Restores proper door alignment to prevent rubbing, binding or uneven gaps
• Eliminates noisy or rough door movement caused by a broken or worn hinge
• Helps the door latch and seal correctly by maintaining correct hinge geometry

• One bottom hinge assembly

• Disconnect power to the appliance before starting any repair; shut off water supply if applicable
• Support the door while removing the old hinge to prevent dropping or damage
• Use appropriate hand tools; follow OEM instructions for torque and fastener placement
• Inspect mating hardware and surrounding mounts; replace both sides if one hinge shows similar wear

This door gasket is the replacement seal that fits around an oven door to help contain heat and maintain cooking temperature. Replacing a worn gasket improves oven efficiency and reduces heat loss for more consistent results. What it does

• Seals the oven door to retain heat and maintain set temperatures.
• Helps prevent heat and smoke from escaping during use.
• Can reduce uneven cooking and long cook times caused by leaks.
• Helps limit high exterior temperatures around the door area.

What's included One door gasket. Install notes

• Disconnect power and allow the appliance to cool completely before starting work.
• Seat the gasket evenly into the door channel or retainer per OEM instructions; do not force or overstretch.
• Do not use adhesives unless the manufacturer specifies them; check door alignment and the seal after installation.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 10-24 x 3/8 inch.

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
