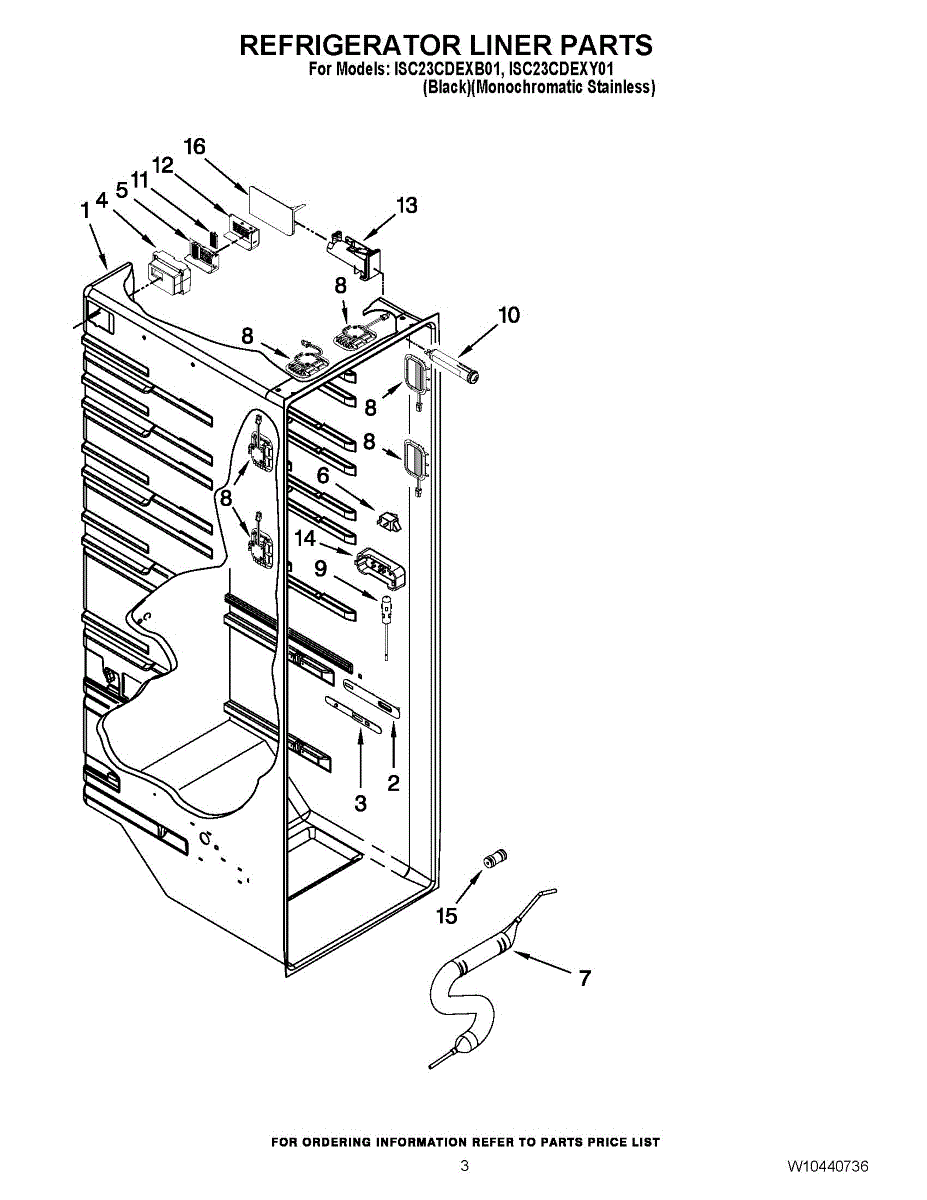

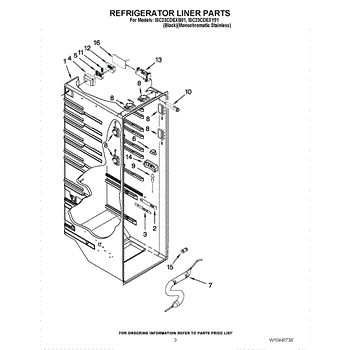

Parts for Whirlpool ISC23CDEXB01: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The air diffuser regulates and directs cold air between the freezer and fresh food sections to maintain even, stable cooling. Replacing a stuck or noisy diffuser restores proper airflow and temperature control throughout the refrigerator.

• Opens and closes a damper to meter cold air from the freezer into the refrigerator compartment
• Helps prevent warm spots, overcooling, and inconsistent temperatures
• Can resolve little/no airflow from the vent, food freezing near the vent, or a warm fresh food section
• Noises such as clicking or grinding from the vent area can indicate a failing diffuser
• Frost or condensation around the air passage may point to a damaged diffuser or seal

• Disconnect power before servicing; wear cut-resistant gloves
• Remove shelves/bins as needed; take off the vent cover to access the diffuser
• Disconnect the wire harness and remove mounting fasteners; transfer any gasket/seal or hardware from the original part
• After installation, restore power and allow temperatures to stabilize

The air diffuser regulates and directs cold air between the freezer and fresh food sections to maintain even, stable cooling. Replacing a stuck or noisy diffuser restores proper airflow and temperature control throughout the refrigerator.

• Opens and closes a damper to meter cold air from the freezer into the refrigerator compartment
• Helps prevent warm spots, overcooling, and inconsistent temperatures
• Can resolve little/no airflow from the vent, food freezing near the vent, or a warm fresh food section
• Noises such as clicking or grinding from the vent area can indicate a failing diffuser
• Frost or condensation around the air passage may point to a damaged diffuser or seal

• Disconnect power before servicing; wear cut-resistant gloves
• Remove shelves/bins as needed; take off the vent cover to access the diffuser
• Disconnect the wire harness and remove mounting fasteners; transfer any gasket/seal or hardware from the original part
• After installation, restore power and allow temperatures to stabilize

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The air diffuser regulates and directs cold air between the freezer and fresh food sections to maintain even, stable cooling. Replacing a stuck or noisy diffuser restores proper airflow and temperature control throughout the refrigerator.

• Opens and closes a damper to meter cold air from the freezer into the refrigerator compartment
• Helps prevent warm spots, overcooling, and inconsistent temperatures
• Can resolve little/no airflow from the vent, food freezing near the vent, or a warm fresh food section
• Noises such as clicking or grinding from the vent area can indicate a failing diffuser
• Frost or condensation around the air passage may point to a damaged diffuser or seal

• Disconnect power before servicing; wear cut-resistant gloves
• Remove shelves/bins as needed; take off the vent cover to access the diffuser
• Disconnect the wire harness and remove mounting fasteners; transfer any gasket/seal or hardware from the original part
• After installation, restore power and allow temperatures to stabilize

This refrigerator water filter housing secures the filter cartridge and channels water through the system. Replacing a cracked or leaking housing helps restore proper water flow and leak-free dispensing and ice production.

• Holds and seals the water filter; connects the inlet and outlet water lines
• Routes filtered water to the dispenser and ice maker
• Common failure signs include leaks at the filter area, slow/no dispensing, or no ice production
• A worn housing can prevent the filter from seating or staying locked in place

• Unplug the refrigerator and shut off the water supply before starting.
• Dispense water to relieve line pressure; keep a towel handy for residual water.
• Note tube orientation; transfer any brackets or fittings from the old housing as needed. Ensure tubing is fully seated and locked.
• Restore water and power, then check for leaks and flush the system per the filter instructions.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed
