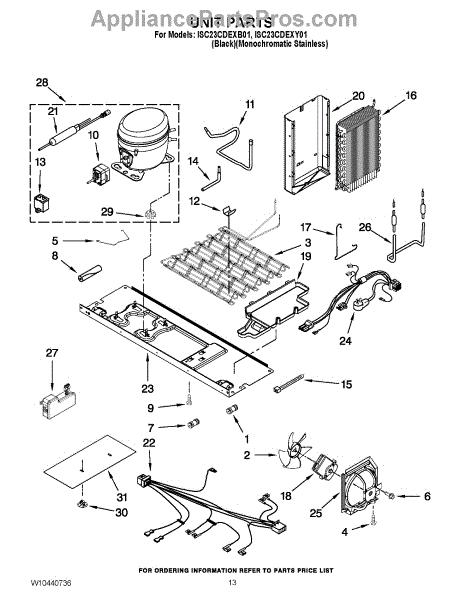

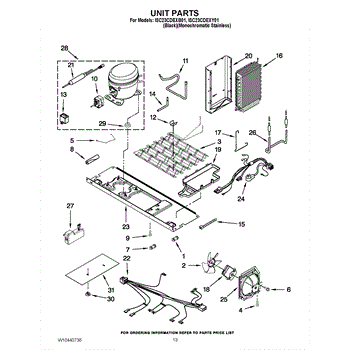

Parts for Whirlpool ISC23CDEXB01: 09 - Unit Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Fan Blade is an OEM part for Whirlpool refrigerators. It is essential for circulating air throughout the refrigerator, ensuring that the temperature remains consistent and the cooling process is efficient. The fan blade helps distribute cold air from the evaporator coils to different parts of the refrigerator and freezer compartments, maintaining an even temperature throughout.

Over time, the fan blade can become damaged due to wear and tear, obstruction by debris, or impact from moving items within the refrigerator. If the fan blade is cracked, broken, or loose, it will not be able to circulate air effectively, leading to cooling issues and potential food spoilage.

Symptoms of a bad fan blade include:

• Unusual noises coming from the refrigerator
• Inconsistent cooling or warm spots within the compartments
• The refrigerator running more frequently or for longer periods
• Frost buildup in the freezer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks

The Compressor Start Device is an OEM part for Whirlpool refrigerators. It is responsible for starting the compressor, which is crucial for the refrigeration cycle. The start device provides the necessary electrical current to initiate the compressor's operation, ensuring that the refrigerator maintains the proper cooling temperature.

You should replace the compressor start device if it becomes faulty. Causes of a bad start device can include electrical failures, wear and tear from regular use, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling issues in the refrigerator.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or at all
• The compressor not running or making a clicking sound as it tries to start
• Unusual noises coming from the compressor area
• The refrigerator cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Compressor Start Device is an OEM part for Whirlpool refrigerators. It is responsible for starting the compressor, which is crucial for the refrigeration cycle. The start device provides the necessary electrical current to initiate the compressor's operation, ensuring that the refrigerator maintains the proper cooling temperature.

You should replace the compressor start device if it becomes faulty. Causes of a bad start device can include electrical failures, wear and tear from regular use, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling issues in the refrigerator.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or at all
• The compressor not running or making a clicking sound as it tries to start
• Unusual noises coming from the compressor area
• The refrigerator cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement tube restores proper fluid routing between appliance components to stop leaks and poor flow. It's the OEM-design part used where a damaged or cracked tube causes performance issues. What it does:

• Routes water or drain flow between internal components to maintain normal operation
• Prevents leaks caused by cracked, brittle, or separated tubing
• Helps resolve symptoms like visible dripping, pooling, or inconsistent water delivery
• Restores a sealed connection when original tubing has deteriorated

• Disconnect power and shut off water supply before starting any repair
• Inspect mating fittings and clamps; replace worn clamps or seals as needed
• Slide tube fully onto fittings and secure with appropriate clamps to prevent leaks
• Run a short cycle to check for leaks after installation

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

This replacement shield is a molded protective cover that helps keep internal appliance components safe from debris, heat and moisture. It restores the barrier that prevents damage and helps maintain reliable operation. What it does

• Covers and protects internal wiring and components from contact with debris and splashes
• Helps redirect heat and reduces exposure that can accelerate wear on nearby parts
• Stops loose objects from contacting moving parts or electrical connections
• Common symptoms it addresses: visible cracks or gaps, exposed components, or panels that no longer sit flush

• One replacement shield

• Disconnect power (and water, if applicable) before starting any repair
• Inspect surrounding clips, screws and mounting tabs; replace any broken fasteners for a secure fit
• Handle carefully to avoid bending or cracking the shield during installation

The Wire Harness is an OEM part for Whirlpool-brand side-by-side refrigerators. It facilitates connection between many internal control boards and components.

Symptoms of a bad wire harness include:

• Faulty or intermittent operation of light fixtures
• Error codes displayed for no reason
• Random component failures or malfunctions
• Buzzing noises emitting from electrical areas

As the connection backbone inside refrigerators, wire harnesses endure years of constant vibration and flexing from icemakers and cooling fans. Causes of failure are typically cracks developing in older insulation from normal wear.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side models. Do not cut or shorten any wires without verifying the wire function first.

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

This heating element assembly restores heat to your dryer so clothes dry efficiently and cycle times return to normal. It replaces a failed or intermittent heater to help eliminate no-heat or low-heat drying problems. What it does

• Produces the heat needed to dry laundry during a dryer cycle
• Replaces a broken or burnt-out element that can cause no-heat or long dry times
• Works with the dryer's thermal cutoffs and cycling thermostat to regulate temperature
• Helps prevent overheating when used with functioning safety thermostats

• One heating element assembly

• Disconnect power before servicing; this is an electrical component
• Inspect and replace related safety thermostats or fuses if they show damage

This inverter box is the control module that converts and regulates power for the compressor motor in compatible refrigerators, enabling proper compressor operation and efficient cooling performance. What it does:

• Supplies and regulates the variable power signal to the refrigerator compressor motor
• Helps the compressor start and run at the correct speed for temperature control
• Can cause no cooling, intermittent compressor operation, or frequent start/stop if faulty
• Works with the main control and compressor to maintain stable refrigeration performance

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the module carefully and avoid contact with circuitry; observe ESD precautions if available
• Verify connectors and mounting position match the original before finalizing installation

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This cover-unit is the outer cabinet cover that protects internal components and gives the appliance a finished appearance. It restores a secure, neat exterior and prevents exposure to wiring or moving parts. What it does:

• Replaces a cracked, dented, or missing outer cabinet cover to restore appearance and protection
• Shields internal components from dust and accidental contact
• Helps maintain proper alignment of adjacent panels and trim
• Reduces risk of snagging or injury from exposed edges

• Disconnect power to the appliance before starting any repair
• Installation typically requires basic hand tools (screwdriver, nut driver) and care to align mounting tabs
• Inspect mounting clips and screws; replace any damaged fasteners for a secure fit

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
