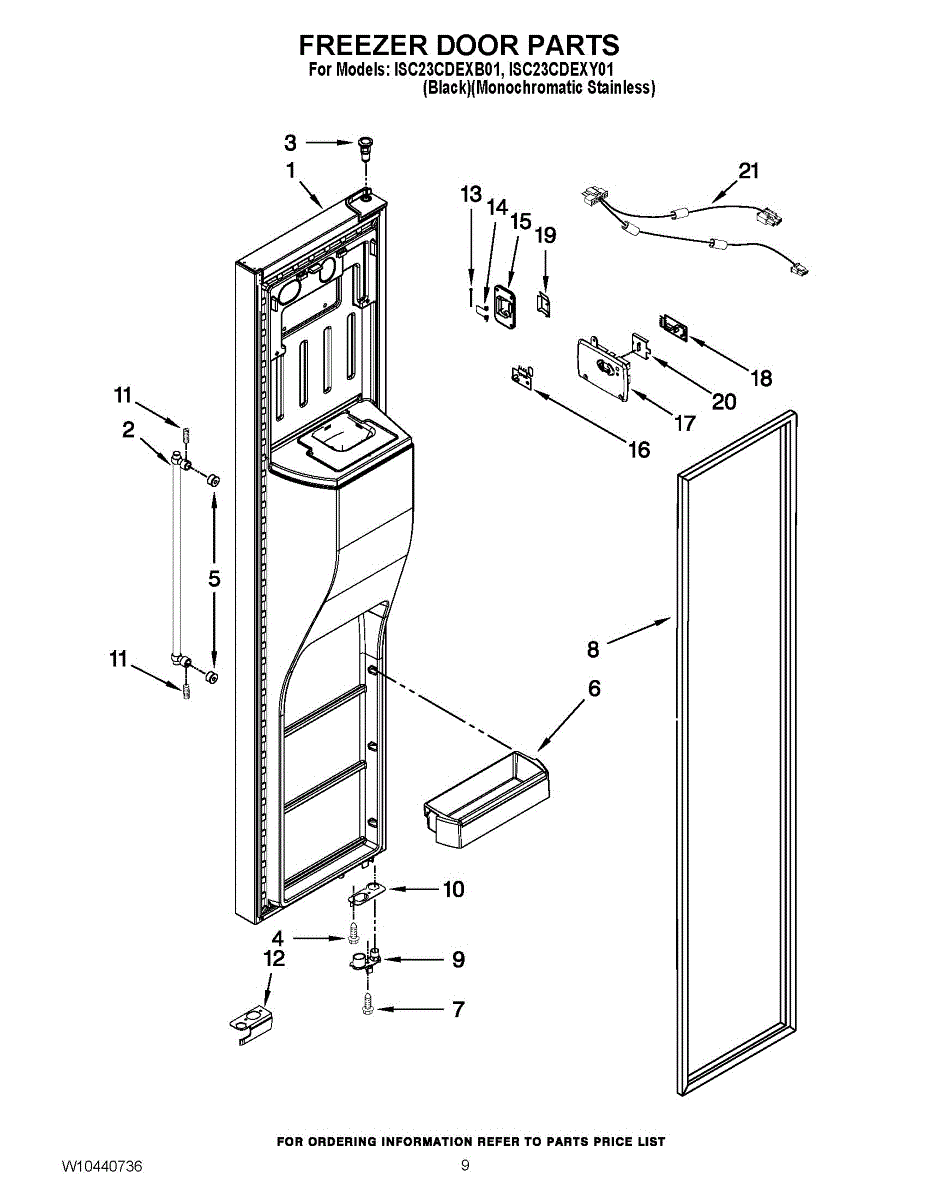

Parts for Whirlpool ISC23CDEXB01: 07 - Freezer Door Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Door Shelf Bin is a replacement interior bin that mounts to the refrigerator door to hold bottles, jars and other small items securely. It restores lost storage and helps keep frequently used items organized and accessible. What it does:

• Replaces a cracked, broken or missing door shelf bin to restore door storage capacity
• Holds bottles, condiments and small containers so items stay upright and visible
• Prevents items from sliding around or falling when the door is opened
• Fits into the door rail to provide easy access to everyday items

• Remove all items from the door before replacing the bin.
• Installation usually requires sliding or clipping the bin into the existing door rail—no special tools typically required.
• Inspect the door rail and mounting clips for damage; replace damaged clips before installing the new bin.
• For safety, unplug the appliance or disconnect power before working inside the refrigerator.

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

Color: Black

Color: Grey

This cam-door is the small plastic cam that helps the appliance door latch and move smoothly. Replacing a worn cam restores reliable door engagement and reduces slamming or misalignment. What it does:

• Guides and secures the door latch mechanism for proper opening and closing
• Helps align the door to prevent gaps or uneven sealing
• Reduces noisy or rough door movement caused by a worn cam
• Common symptom: door won't stay closed, feels loose, or binds when opening/closing

• One cam-door as shown

• Disconnect power (or unplug) before starting any repairs
• Access may require removing the outer door panel or trim—keep fasteners organized
• Handle small plastic parts carefully to avoid cracking; replace any damaged clips or screws

Thimble cam that secures and guides the dryer door latch assembly, helping the door close and stay latched so the appliance can run safely and reliably. Replaces worn or damaged door cam components. What it does:

• Engages the door latch/strike to keep the door closed during cycles.
• Helps maintain proper door alignment so the lid/door seals and latches correctly.
• A worn or broken cam can cause the door to hang, fail to latch, or prevent the dryer from starting.
• Works as the mechanical interface between the door and latch assembly.

• Disconnect power (and shut off gas supply on gas models) before servicing.
• Access typically requires removing the dryer door trim or access panel.
• Inspect the latch, strike, and mounting hardware; replace any worn or damaged fasteners when installing the new cam.

The Bracket is an OEM part for Whirlpool-brand refrigerators. These brackets are mounted internally to provide secure anchoring points for door assemblies on the refrigerator frame.

Causes of a bad bracket can include cracks from over-tightening during installation, or metal fatigue over many open/close cycles.

Symptoms of a bad bracket include:

• Loose or sagging refrigerator doors that do not close flush
• Gaps appearing around door seals
• Noises or vibrations emitting from door areas
• Doors difficult to open/close smoothly

As a core mounting component, brackets ensure doors remain firmly and safely attached year after year of use. Replacing a damaged bracket with this OEM part restores a proper secure fit. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

This COVER-WIRE protects appliance wiring from abrasion and incidental contact, helping keep connections organized and shielded. It's a simple replacement that restores the factory routing and protection for exposed harnesses. What it does:

• Shields wiring from chafing and contact with sharp edges
• Helps prevent insulation wear that can lead to exposed conductors
• Keeps harnesses routed neatly to reduce stress and snagging
• Can reduce intermittent electrical issues caused by damaged wire insulation

• One COVER-WIRE as shown

• Disconnect power (and water, if applicable) before servicing to avoid shock or damage
• Inspect surrounding wiring and connectors; replace any damaged wires or terminals
• Typically secures with factory clips or fasteners—use OEM fasteners where required

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

This replacement cover is a molded housing piece that protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded while helping reduce noise and debris entry. What it does:

• Protects internal components and wiring from physical damage and contamination
• Helps reduce vibration noise and rattling by covering exposed parts
• Restores a finished appearance to the appliance cabinet or control area
• Can prevent loose parts from shifting during operation

• Disconnect power (unplug appliance or switch off breaker) before beginning service
• Use basic hand tools; support the appliance panel while removing fasteners
• Handle with care to avoid scratching painted surfaces or breaking tabs

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. This board manages the ice maker’s production by monitoring the ice level in the ice bin, ensuring that ice is made when needed and halting production when the bin is full.

Causes of a bad ice level control board can include electrical issues such as power surges, wear and tear over time, or damage from moisture or debris.

Symptoms of a bad ice level control board include:

• The ice maker not producing ice
• Continuous ice production even when the bin is full
• Error codes related to the ice maker
• Irregular or inconsistent ice production

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This slide is the replacement rack glide that helps a rack roll smoothly in and out of the appliance, restoring proper rack movement and preventing scraping or sticking during use. Fits where the factory rack glide has worn or broken. What it does

• Provides a smooth track for a rack to slide in and out without binding
• Replaces cracked, worn or missing glide that causes rubbing or uneven movement
• Helps keep the rack properly aligned during loading and unloading
• Reduces noise and drag from a damaged or missing glide

• One replacement slide/rack glide

• Remove power supply or disconnect appliance before starting any repair
• Access the glide by sliding the rack out and removing any retainer clips or screws as required
• Snap or screw the replacement slide into place and verify smooth rack movement before restoring power
• If other rack parts are damaged, replace them to ensure proper function
