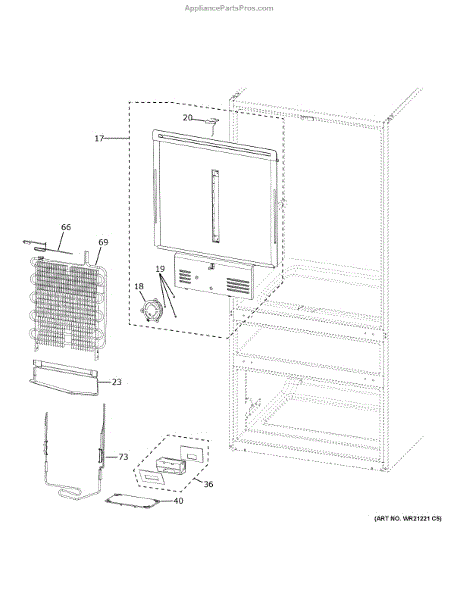

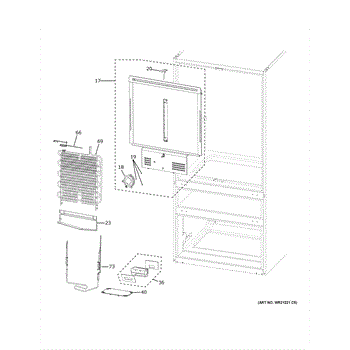

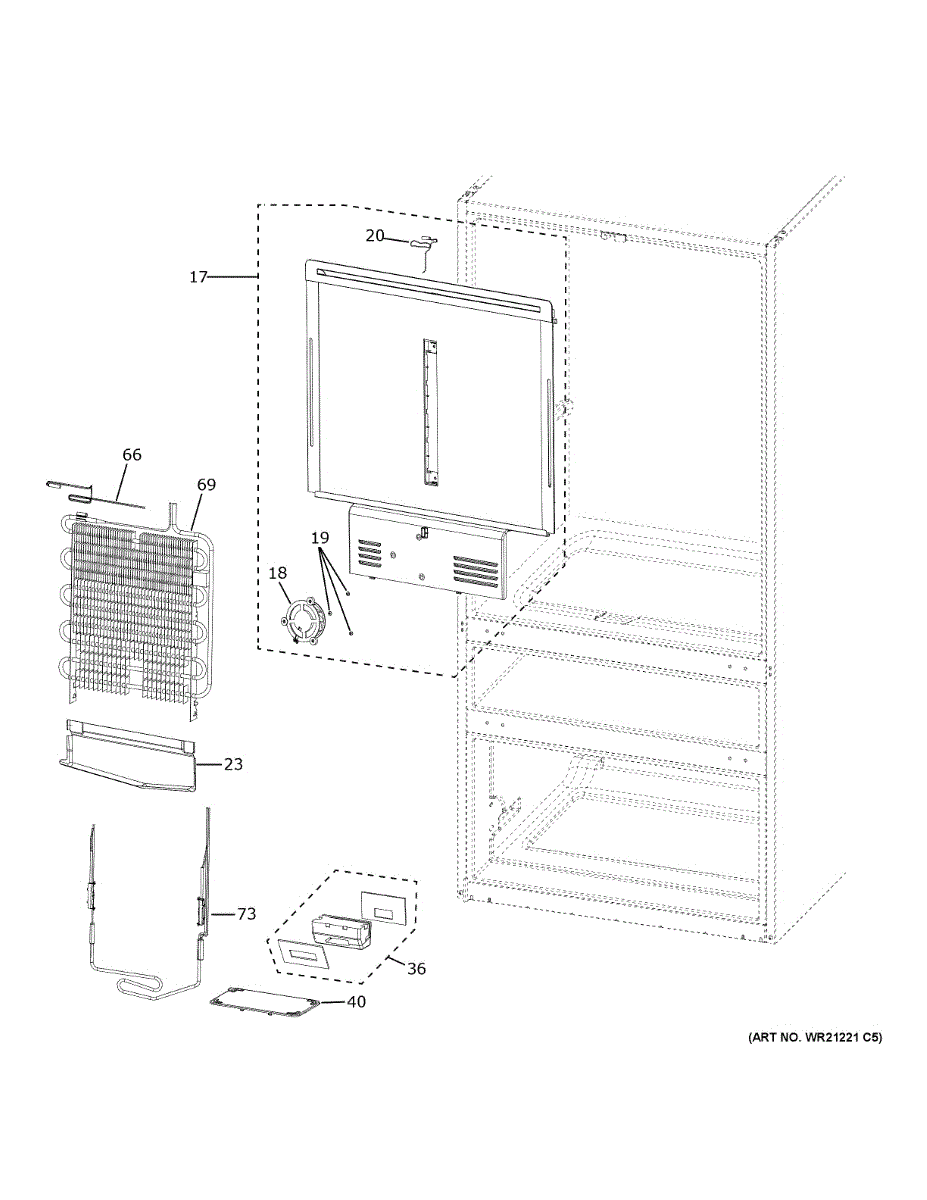

Parts for Ge CXE22DP3PED1: Refrigerator Section Parts

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. It is designed to fit in the freezer compartment, to circulate cold air and maintain a consistent temperature throughout the freezer. This fan ensures proper airflow, preventing the formation of frost and ice buildup. The felt helps reduce noise and vibration, providing a quieter and smoother operation.

A bad evaporator fan can occur due to various factors, including normal wear and tear, motor failure, or damage to the fan blades. If you notice symptoms such as unusual noises, reduced cooling performance, or frost accumulation in the freezer, it may indicate a need to replace the evaporator fan.

Symptoms of a bad evaporator fan include:

• Unusual noises coming from the freezer
• Reduced cooling performance
• Frost accumulation in the freezer

Restore your refrigerator's freezer compartment by replacing the faulty freezer fan with felt using this genuine OEM part.
This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


A direct-replacement screw used to secure appliance panels and components so parts sit correctly and stay fixed during operation. Restores secure mounting and helps stop rattles, gaps, and loose trim or panels. What it does

• Fastens panels, brackets, or trim so parts remain aligned and stable.
• Prevents vibrating or rattling caused by loose or missing fasteners.
• Restores proper fit where a stripped, damaged, or missing screw caused gaps or movement.
• Keeps internal components properly secured to maintain safe operation.

• One replacement screw

• Disconnect power to the appliance before servicing to reduce shock risk.
• Use the correct screwdriver or bit to avoid stripping the head.
• Thread carefully and do not overtighten — stop when snug to avoid damaging threads or plastic parts.
• If threads are damaged, replace the mating fastener or insert as needed rather than forcing the screw.

The Convertible Thermistor is an OEM replacement part for GE refrigerators. It helps regulate and monitor the internal temperature of the refrigerator, ensuring cooling. The thermistor senses the temperature inside the refrigerator and sends signals to the control board to adjust the cooling settings accordingly. It helps maintain consistent temperatures and preserving the freshness of your food.

A bad convertible thermistor can occur due to various factors, including electrical malfunctions, damage to the thermistor, or improper calibration. If you notice symptoms such as inconsistent cooling, temperature fluctuations, or the refrigerator not reaching the desired temperature, it may indicate a need to replace the thermistor.

Symptoms of a bad convertible thermistor include:

• Inconsistent cooling
• Temperature fluctuations
• Refrigerator not reaching desired temperature

Restore your refrigerator by replacing the faulty convertible thermistor with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Defrost Thermistor is an OEM replacement part for GE refrigerators. It monitors temperature to control defrost cycles and prevent frost buildup. Common causes of failure in this thermistor include wear and tear over time, electrical issues, or damage from moisture exposure.

Symptoms of a failing defrost thermistor include:

• Irregular cooling in the refrigerator or freezer compartments
• Excessive ice buildup in the freezer
• Inconsistent or improper defrosting cycles

Replacing the thermistor restores proper temperature and defrost function. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This evaporator assembly circulates refrigerant to remove heat from the freezer compartment, restoring normal cooling and frost control. It is the evaporator coil packaged with attached foam insulation blocks for proper fit and thermal sealing. What it does

• Evaporates refrigerant to absorb heat from the freezer compartment for normal cooling.
• Promotes even freezing and helps prevent excessive frost build-up when functioning correctly.
• Can be replaced when the evaporator is corroded, damaged, or leaking and causing poor cooling.
• Works with the evaporator fan and defrost system to maintain freezer temperature and airflow.

• One evaporator assembly with attached foam blocks as shown.

• Disconnect power to the appliance before beginning any repair.
• Replacement may require handling refrigerant lines.
• Avoid bending or crushing the coil fins and foam blocks during installation to preserve performance and sealing.
• Verify defrost components (heater, bi-metal/thermostat, and control) and fan operation when replacing the evaporator.

This defrost heater melts frost and ice from the evaporator coil so the refrigerator can cool properly. It restores normal airflow and helps prevent excessive frost buildup that can block cooling. What it does:

• Heats the evaporator coil during the defrost cycle to remove ice and frost.
• Helps restore proper airflow and cooling when frost buildup restricts performance.
• Common fix for heavy frost on the evaporator, long run times, or reduced cooling.
• Works with the refrigerator's defrost control and thermostat to operate only during defrost.

• One evaporator defrost heater assembly.

• Disconnect power to the appliance before attempting any service.
• Access is typically behind the freezer evaporator cover; handle the evaporator fins and wiring carefully.
• Verify defrost heater continuity with a multimeter before replacing; replace if open or damaged.
