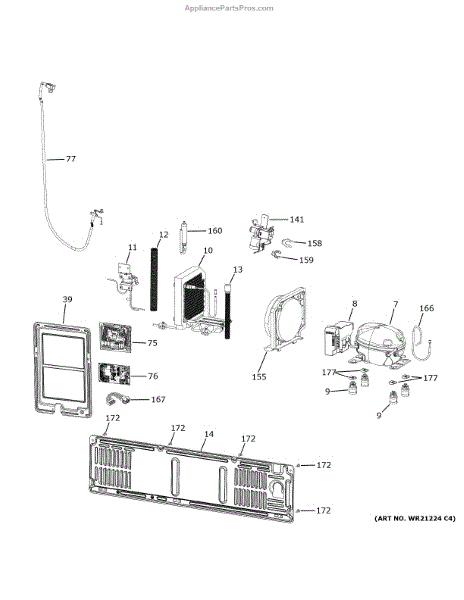

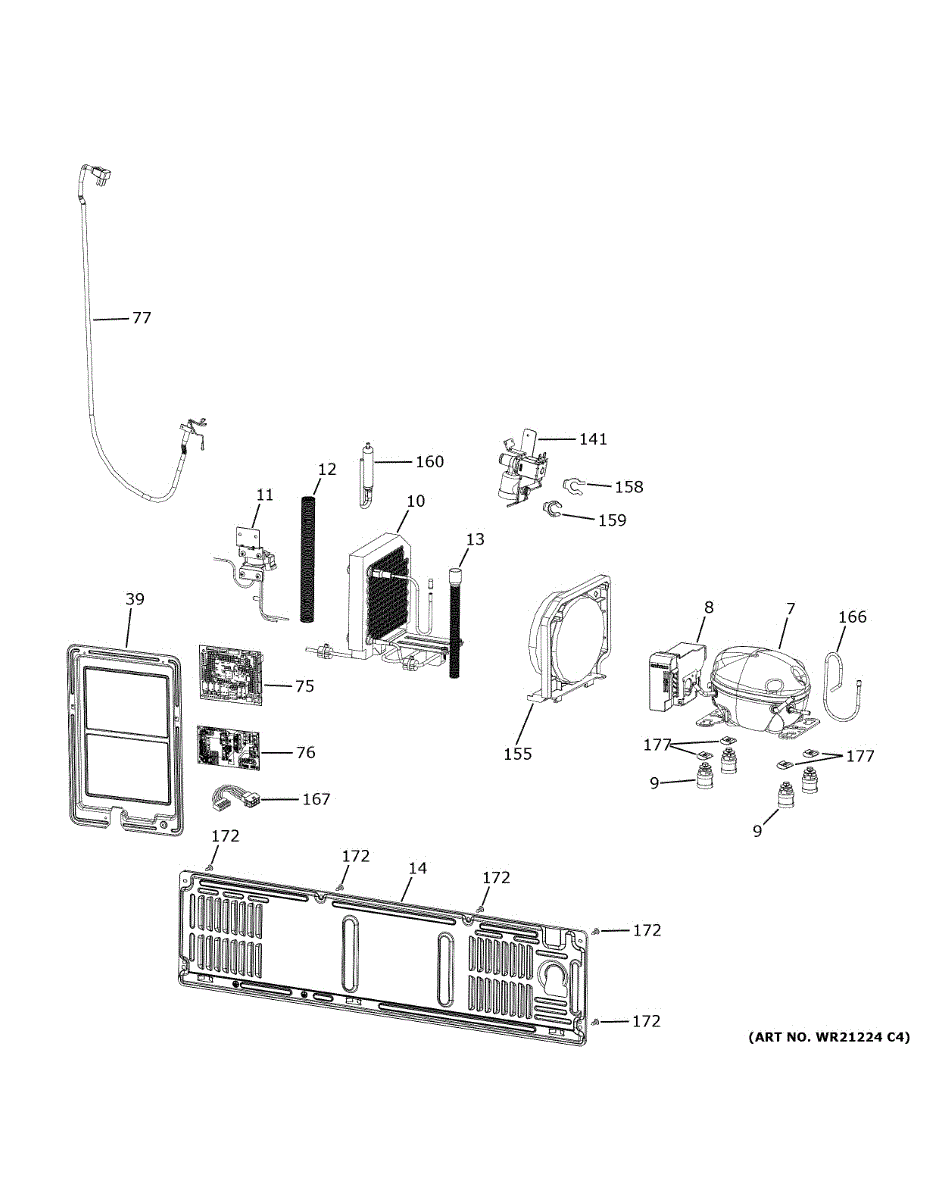

Parts for Ge CXE22DP3PED1: Machine Compartment Parts

This inverter is the refrigerator compressor drive that controls variable-speed compressor operation for efficient cooling and quieter performance. Replaces a failed inverter to restore proper compressor control and stabilize temperature cycling. What it does:

• Converts control signals to variable power for the compressor motor, enabling speed modulation
• Helps maintain consistent cooling by adjusting compressor output as needed
• Can stop compressor cycling or prevent the compressor from starting when failed
• May produce error codes or cause temperature fluctuations when defective

• One inverter assembly

• Disconnect power before testing or replacing to avoid electrical shock
• Mount in the original location and reconnect all wiring and connectors securely
• Inspect related wiring and connectors for damage before reassembly

This 3-way water inlet valve routes water to the dispenser and ice maker, restoring controlled water flow for cold-water dispensing and ice production. It replaces a worn or leaking valve to help stop unwanted leaks and restore normal water delivery. What it does:

• Directs incoming water to the ice maker and the dispenser as needed
• Opens and closes water flow in response to the fridge's control signals
• Helps stop leaks or continuous water flow when the valve fails
• Commonly replaced when the dispenser or ice maker doesn't get water or when the valve leaks

• Turn off water supply and unplug the appliance before starting work
• Use basic hand tools; keep a towel to catch residual water when disconnecting lines
• Inspect and tighten fittings; replace damaged water lines or seals if present
• After installation, restore power/water and check all connections for leaks while cycling dispenser/ice maker

The Power Supply Board is an OEM part for GE refrigerators. This printed circuit board receives power from the appliance’s cord and safely distributes appropriate low-voltage current to control modules, sensors, displays, and other components requiring electricity to function properly.

Causes of a bad power supply board can include short circuits, corrosion of internal traces over time, or failures of individual electronic components like capacitors or transistors.

Symptoms of a bad power supply board include:

• Refrigerator fails to power on at all
• Lights, displays, or modules intermittently lose power
• Abnormal electrical smells or burning odors present
• Tripping of the refrigerator’s internal fuse

This GE OEM replacement ensures a consistent, regulated flow of power throughout the appliance. With high reliability even in demanding cool temperatures, it is also suitable for retrofitting certain Hotpoint, RCA, or Kenmore-branded models depending on circuitry compatibility.


The Power Cord is an OEM part for GE refrigerators responsible for supplying electrical power to your refrigerator, allowing it to function properly and keep your food fresh.

A bad power cord can be caused by wear and tear over time, damage due to bending or twisting, or electrical issues. If you notice that your refrigerator is not receiving power or if there are intermittent power failures, it may indicate a problem with the power cord.

Symptoms of a bad power cord include:

• Refrigerator not turning on or not cooling properly
• Frequent power outages or tripped circuit breakers
• Visible damage to the cord, such as fraying or exposed wires
• Electrical sparks or burning smell near the cord

Replace your faulty power cord with this genuine OEM part to ensure a reliable and safe power supply for your refrigerator. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Valve Water is an OEM part for GE refrigerators. As part of the water supply system, the valve controls the flow of water into the refrigerator.

Causes of a bad valve water are typically wear and tear over time, or a break or blockage developing inside the small valve parts. Not addressed, it can lead to larger plumbing issues.

Symptoms of a bad valve water include:

• No water dispensing or ice making
• Slow or inconsistent water flow from the dispenser
• Water leaks inside around the valve area
• Loud clanking or grinding noises coming from the valve

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.


The Condenser Fan Motor is an OEM replacement part for GE refrigerators. It is designed to ensures proper airflow, dissipating heat and preventing the compressor from overheating. It helps to regulate the temperature inside the refrigerator, ensuring efficient operation and preservation of your food.

A bad condenser fan motor can occur due to various factors, including normal wear and tear, motor failure, or damage to the fan blades. If you notice symptoms such as unusual noises, warm temperature inside the refrigerator, or the compressor running excessively, it may indicate a need to replace the condenser fan motor.

Symptoms of a bad condenser fan motor include:

• Unusual noises coming from the condenser unit
• Warm temperature inside the refrigerator
• Excessive running of the compressor

Restore your refrigerator by replacing the faulty condenser fan motor with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This quick-connect clip secures 5/16-inch water tubing in push-to-connect fittings to prevent accidental release and leaks at the joint. Restore a reliable hold on dispenser and icemaker lines when the original clip is missing or damaged. What it does:

• Locks the release ring (collet) on a 5/16-inch quick-connect fitting to retain tubing
• Helps prevent water drips or leaks at the connector
• Keeps tubing from slipping out, supporting steady water flow to dispenser/ice maker
• Common symptoms: leak at fitting, loose/disconnected tubing, no/low water or ice

• 1 quick-connect clip (5/16)

• Unplug the appliance and shut off the water supply; dispense water to relieve line pressure
• Ensure the tubing end is cut square; push it fully into the fitting until seated
• Insert the clip beneath the fitting's collet to lock; tug gently to verify retention
• Restore water and power, then check all connections for leaks

• Designed for 5/16-inch OD water tubing quick-connect fittings

This 1/4-inch quick-connect locking clip secures water tubing in push-to-connect fittings on your refrigerator's water and ice system. It locks the tube in place to help prevent leaks and accidental disconnection at the fitting. What it does:

• Locks 1/4-inch OD tubing into compatible push-to-connect fittings
• Helps maintain a secure seal to reduce drips at water line connections
• Replaces a missing, cracked, or loose clip on filter heads, inlet valves, or inline couplers
• Symptoms include leaks at a fitting or a tube that won't stay seated

• One 1/4-inch quick-connect locking clip

• Disconnect power and shut off the water supply before servicing; dispense water to relieve pressure
• Remove the old clip; ensure the tubing end is clean and cut square
• Fully insert the tube into the fitting until it bottoms out, tug lightly to seat, then install the clip in the collet groove
• Restore water and check all connections for leaks

• Designed for fittings that use 1/4-inch OD tubing. It will not fit 5/16-inch or 3/8-inch quick-connect fittings.
