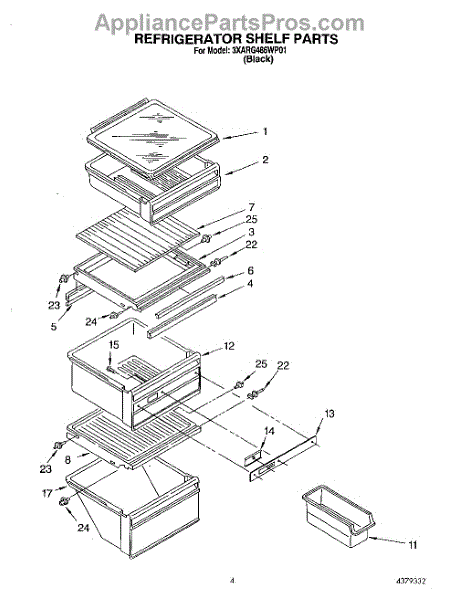

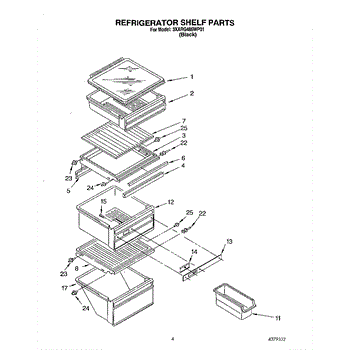

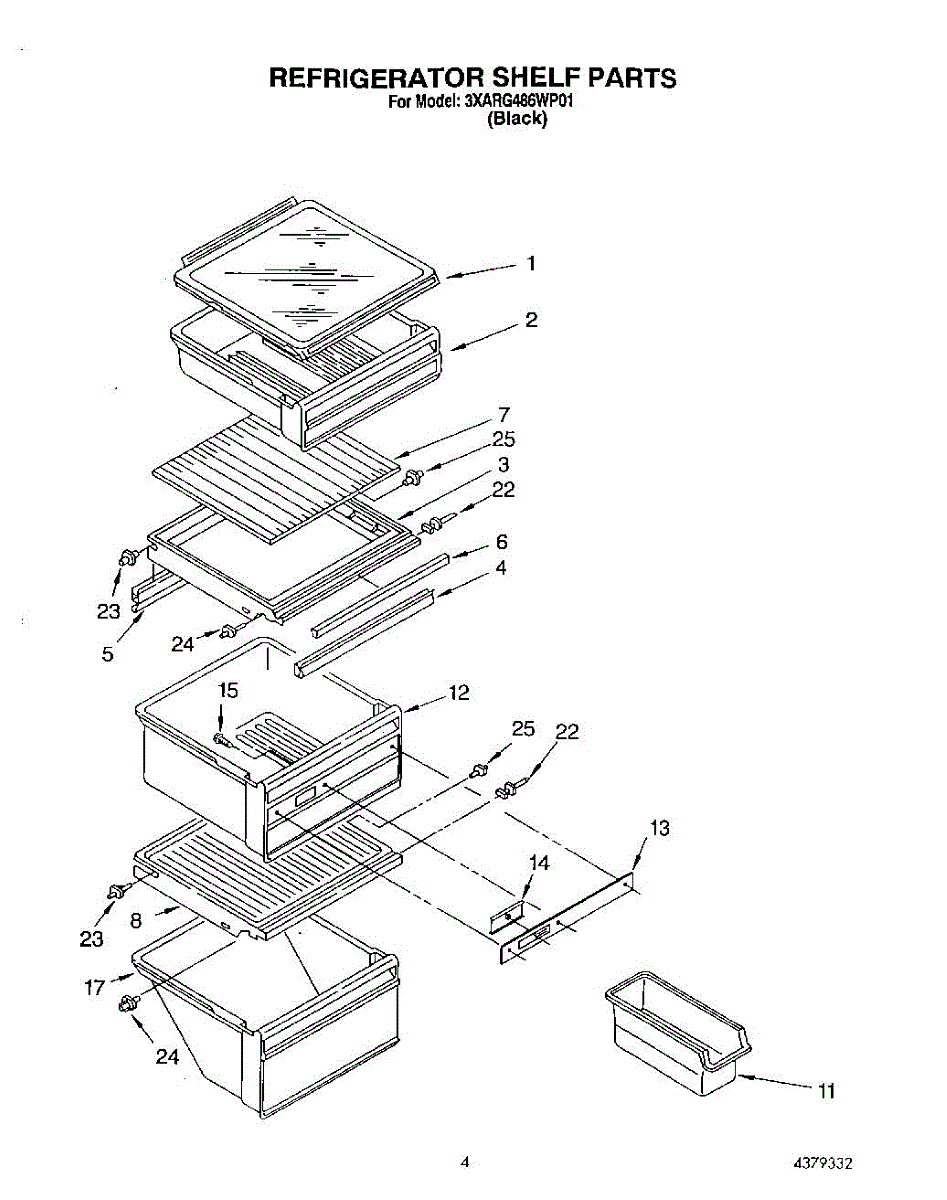

Parts for Whirlpool 3XARG486WP01: 03 - Refrigerator Shelf Parts

The Shelf Frame is an OEM replacement part for Whirlpool refrigerators. It is an internal frame component that provides structure and support for refrigerator shelves. Measures about 17 inches wide by 17 inches deep.

Causes of a bad shelf frame can include damage like dents, bends or cracks that compromise strength. Repeated impact over the lifespan may weaken metal mounting rails.

Symptoms of a bad shelf frame include:

• Shelves that sag, bow or dislodge from their tracks
• Inability to optimally organize refrigerator interiors
• Potential spills if shelves are overloaded
• Restricted access until replacement restores functionality

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

Please note: Does not include glass. For the glass order WP1114687.

Color: clear. Measures about 16-3/4 X 14-1/2 inches.

Cover frame that installs above the meat/deli drawer in your refrigerator. Replace if cracked, broken, or missing to restore the shelf surface.

Ice container cracked or broken? This refrigerator ice cube bin stores ice from your automatic ice maker. Simple snap-in installation takes minutes.

This part has been discontinued and is no longer available.

This gray foam filter cushions and protects the appliance display/control board from moisture, dust and debris, helping maintain reliable panel operation and prolong electronic component life. What it does:

• Shields the display/control board from common household moisture, splashes and dust
• Helps prevent debris build-up that can interfere with button/soft-touch operation
• Reduces the risk of shorting or corrosion on exposed board areas caused by contaminants
• Restores intended fit and protection when original panel foam is missing, torn or compressed

• Disconnect power before servicing to avoid shock or damage to electronics
• Replace through the control-panel or inner-door access per your model's service instructions
• Handle foam gently and seat fully around the board; do not use solvents or adhesives unless specified by the OEM

Replacement shelf stud kit for refrigerator compartments. Secures adjustable shelves to interior liner. Needed when original studs crack or break off.

Refrigerator shelf support stud.

Replacement shelf stud kit for refrigerator compartments. Secures adjustable shelves to interior liner. Needed when original studs crack or break off.
