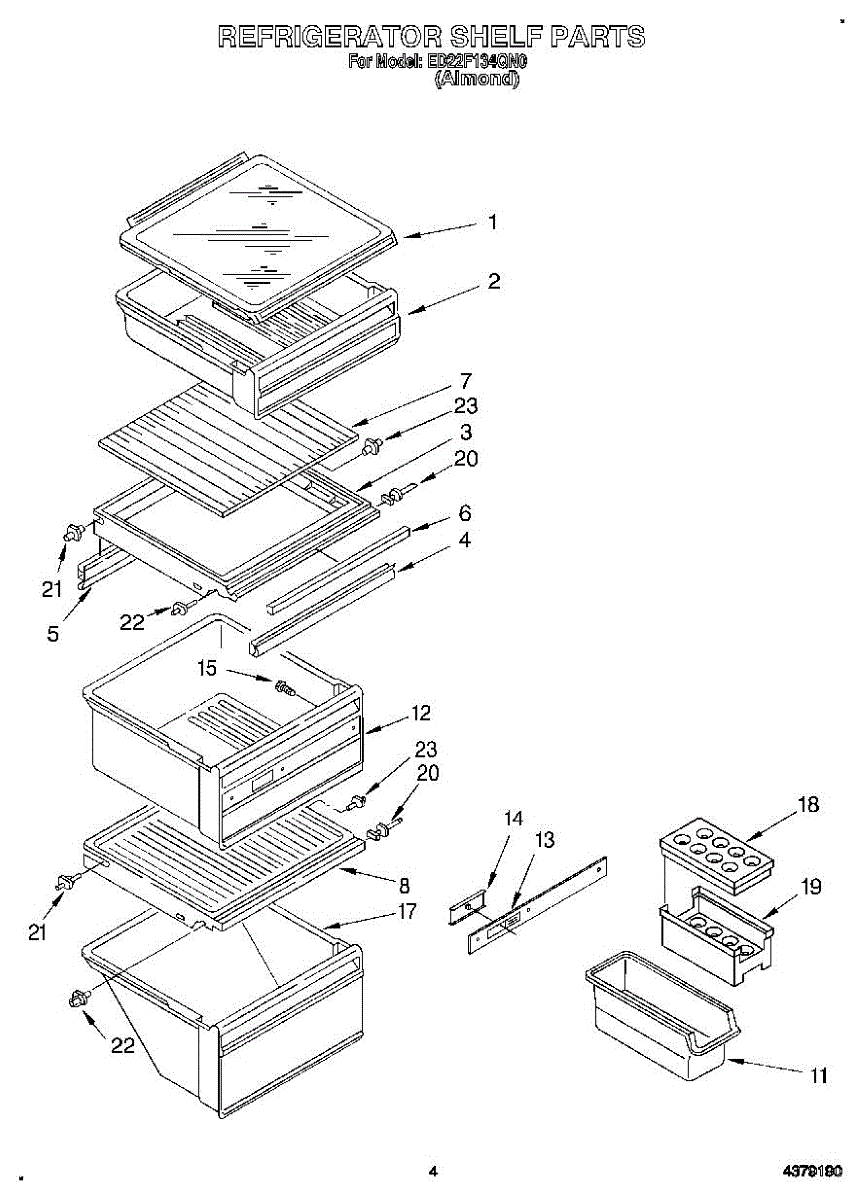

Parts for Whirlpool ED22F134QN0: 03 - Refrigerator Shelf Parts

The Shelf Frame is an OEM replacement part for Whirlpool refrigerators. It is an internal frame component that provides structure and support for refrigerator shelves. Measures about 17 inches wide by 17 inches deep.

Causes of a bad shelf frame can include damage like dents, bends or cracks that compromise strength. Repeated impact over the lifespan may weaken metal mounting rails.

Symptoms of a bad shelf frame include:

• Shelves that sag, bow or dislodge from their tracks
• Inability to optimally organize refrigerator interiors
• Potential spills if shelves are overloaded
• Restricted access until replacement restores functionality

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

Please note: Does not include glass. For the glass order WP1114687.

Color: clear. Measures about 16-3/4 X 14-1/2 inches.

Cover frame that installs above the meat/deli drawer in your refrigerator. Replace if cracked, broken, or missing to restore the shelf surface.

Ice container cracked or broken? This refrigerator ice cube bin stores ice from your automatic ice maker. Simple snap-in installation takes minutes.

This part has been discontinued and is no longer available.

This is a flexible film strip ribbon connector that links the display board to the main control board in a range or oven. It carries signals between the two boards so the display can show settings, temperature, and timer information. Replace this ribbon if the display is blank, flickering, shows partial characters, or intermittently loses communication with the control board.

This part has been discontinued and is no longer available.

Replacement shelf stud kit for refrigerator compartments. Secures adjustable shelves to interior liner. Needed when original studs crack or break off.

This small plastic or metal stud inserts into the interior wall of the refrigerator to support shelves or the crisper drawer cover. It provides a stable mounting point that holds the shelf securely in place. Replace this stud if it is cracked, broken, or missing, causing shelves to sit unevenly or fall out of position.

Replacement shelf stud kit for refrigerator compartments. Secures adjustable shelves to interior liner. Needed when original studs crack or break off.
