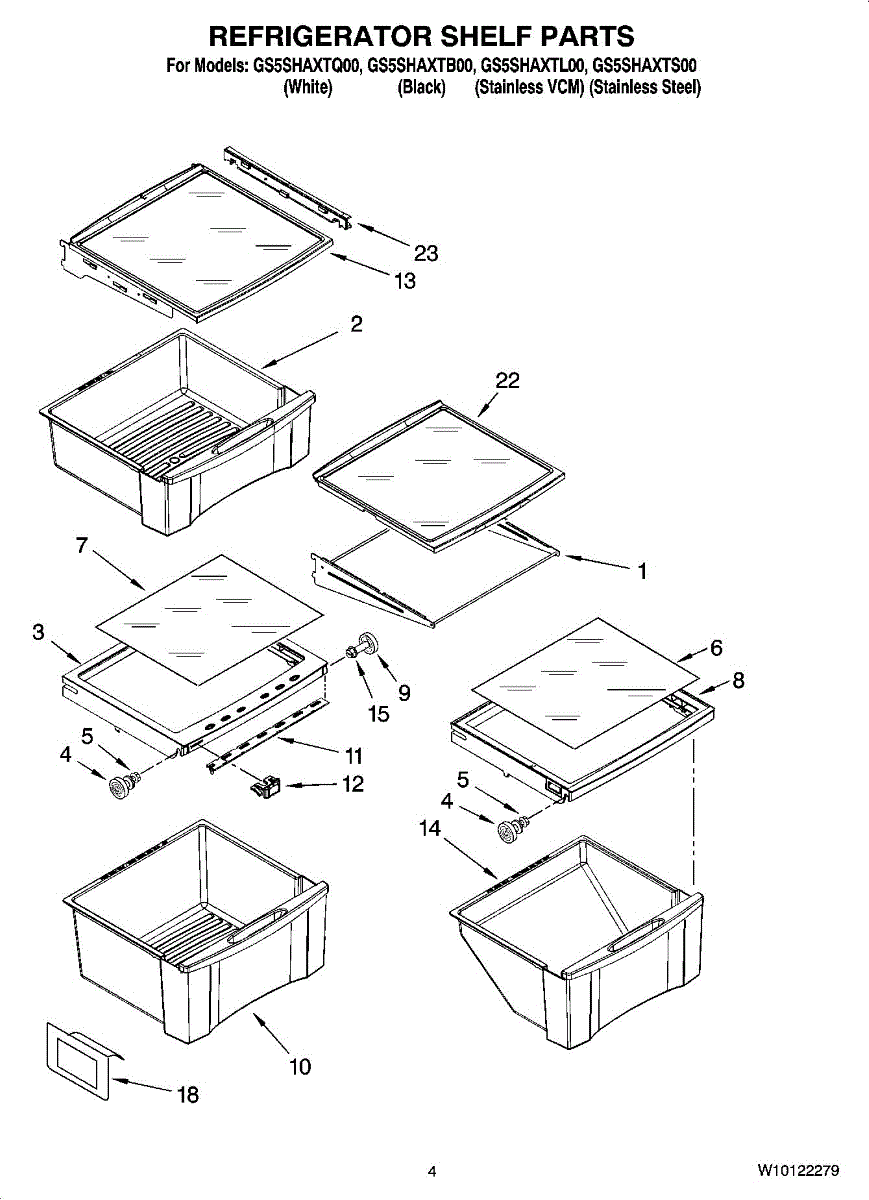

Parts for Whirlpool GS5SHAXTS00: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Color: clear. Measures about 19 inches wide by 6-1/2 inches high by 16 inches deep.

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

This refrigerator crisper cover glass is the removable glass insert that sits in the crisper cover frame, creating the shelf above the drawers. Replace a cracked or missing insert to restore a flat, sturdy storage surface.

• Forms the flat shelf surface above the crisper drawers when seated in the cover frame
• Helps maintain drawer humidity by completing the crisper cover assembly
• Replaces cracked, chipped, shattered, or missing glass
• Restores safe support for items stored on the shelf

• Disconnect power and clear the area before servicing
• Wear cut-resistant gloves; handle glass edges carefully
• Lift/slide the old pane out; remove any fragments from the frame channels
• Insert the new glass fully into the frame grooves and ensure it sits level

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

Color: clear. Measures about 16 inches wide by 9 inches high by 15 inches deep.

This shelf-pan assembly replaces a damaged or missing shelf in the refrigerator compartment. It restores a level, spill-containing surface and properly supports the drawer/pan beneath it for smooth, organized food storage.

• Forms the shelf surface above a refrigerator drawer/pan and supports normal food loads
• Aligns and supports the drawer so it slides and seats correctly
• Helps contain small spills to the shelf area for easier cleanup
• Common symptoms: cracked or broken shelf, damaged tabs, sagging, or drawer binding/misalignment

• Disconnect power and remove food from the area for safe access
• Slide out the drawer, then lift the old shelf straight up and off the support tabs/rails
• Set the new shelf evenly onto the supports and ensure it is fully seated
• The drawer slides freely and the shelf is level before restoring power

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

This air deflector directs chilled air inside the refrigerator's fresh-food compartment to maintain even cooling and proper circulation. It replaces a damaged or missing deflector so cold air reaches interior shelves and drawers. What it does:

• Guides refrigerated air from the evaporator outlet into the fresh-food section for more even temperatures
• Helps prevent warm spots and uneven cooling on shelves and in drawers
• Restores correct airflow after cracking, warping, or breakage
• Can reduce frost buildup caused by improper air direction

• One air deflector

• Disconnect power to the appliance before beginning any work
• Remove interior shelves or drawers as needed for access
• This part typically snaps into place; align tabs and press until secured
• Handle gently to avoid cracking; verify fit and airflow after installation

The Pan Slide is an OEM part for Whirlpool refrigerators, designed to support and facilitate the smooth gliding of crisper or deli drawers. It attaches to the refrigerator's interior wall, providing a track for the drawers to slide in and out easily. This ensures that users can access their stored food items with convenience and minimal effort.

Causes of a bad Pan Slide can include physical damage from overloading the drawers, wear and tear from frequent use, or cracking due to temperature variations within the refrigerator.

Symptoms of a bad Pan Slide include:

• Crisper or deli drawers sticking or difficult to move
• Visible cracks or breaks in the pan slide
• Drawers that sag or fall off the track when opened

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
