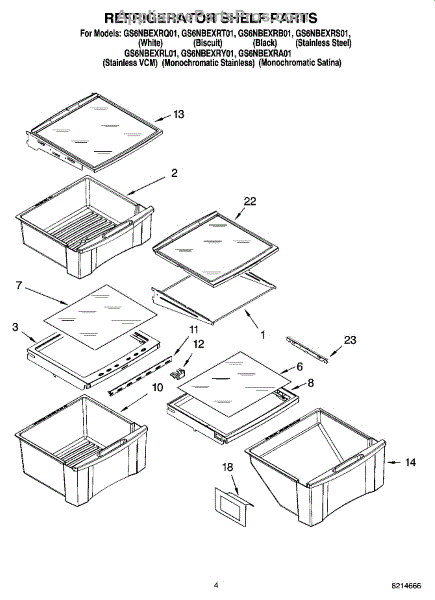

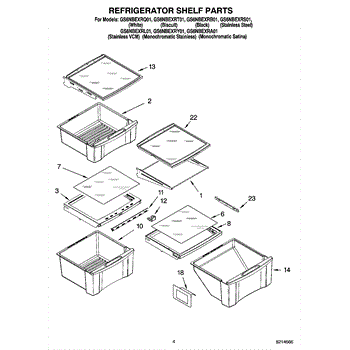

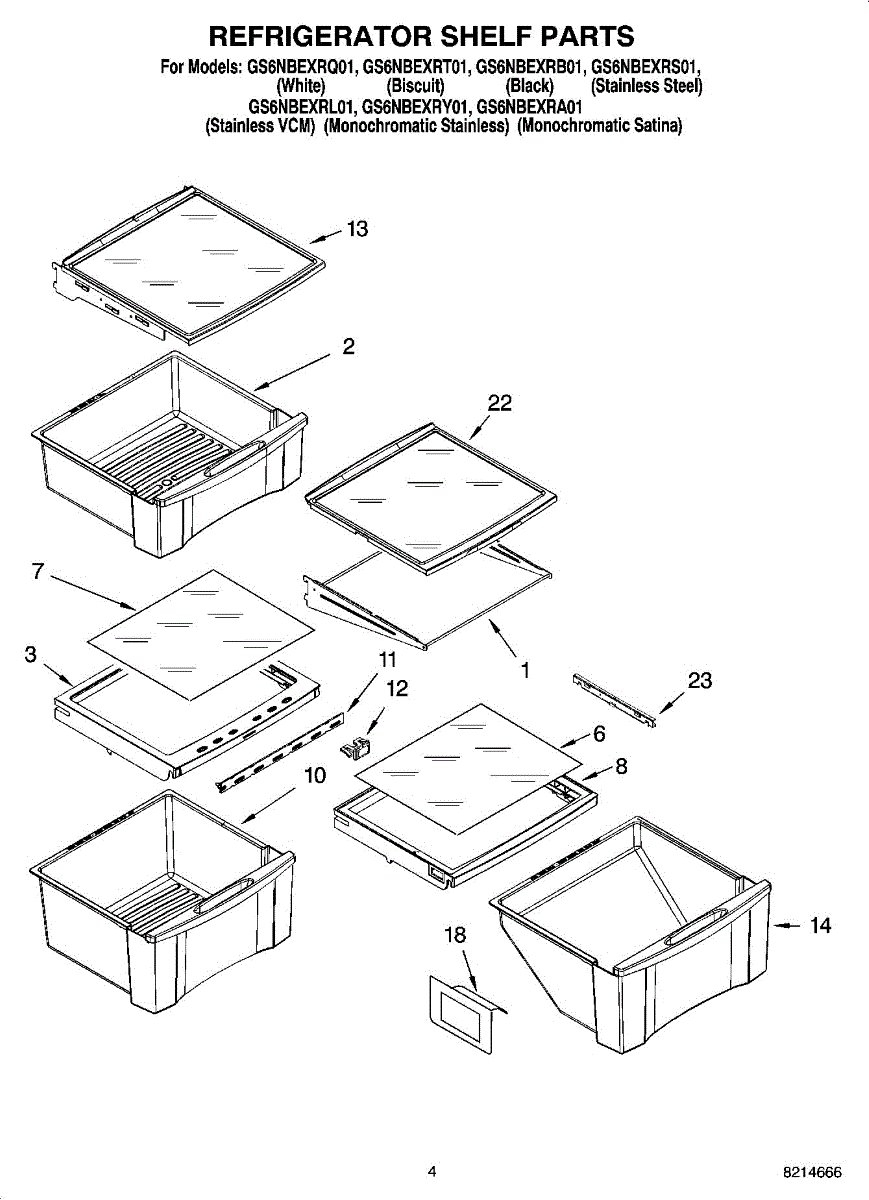

Parts for Whirlpool GS6NBEXRT01: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Color: clear. Measures about 19 inches wide by 6-1/2 inches high by 16 inches deep.

This refrigerator crisper cover glass is the removable glass insert that sits in the crisper cover frame, creating the shelf above the drawers. Replace a cracked or missing insert to restore a flat, sturdy storage surface.

• Forms the flat shelf surface above the crisper drawers when seated in the cover frame
• Helps maintain drawer humidity by completing the crisper cover assembly
• Replaces cracked, chipped, shattered, or missing glass
• Restores safe support for items stored on the shelf

• Disconnect power and clear the area before servicing
• Wear cut-resistant gloves; handle glass edges carefully
• Lift/slide the old pane out; remove any fragments from the frame channels
• Insert the new glass fully into the frame grooves and ensure it sits level

Color: clear. Measures about 16 inches wide by 9 inches high by 15 inches deep.

This shelf-pan assembly replaces a damaged or missing shelf in the refrigerator compartment. It restores a level, spill-containing surface and properly supports the drawer/pan beneath it for smooth, organized food storage.

• Forms the shelf surface above a refrigerator drawer/pan and supports normal food loads
• Aligns and supports the drawer so it slides and seats correctly
• Helps contain small spills to the shelf area for easier cleanup
• Common symptoms: cracked or broken shelf, damaged tabs, sagging, or drawer binding/misalignment

• Disconnect power and remove food from the area for safe access
• Slide out the drawer, then lift the old shelf straight up and off the support tabs/rails
• Set the new shelf evenly onto the supports and ensure it is fully seated
• The drawer slides freely and the shelf is level before restoring power

This air deflector directs chilled air inside the refrigerator's fresh-food compartment to maintain even cooling and proper circulation. It replaces a damaged or missing deflector so cold air reaches interior shelves and drawers. What it does:

• Guides refrigerated air from the evaporator outlet into the fresh-food section for more even temperatures
• Helps prevent warm spots and uneven cooling on shelves and in drawers
• Restores correct airflow after cracking, warping, or breakage
• Can reduce frost buildup caused by improper air direction

• One air deflector

• Disconnect power to the appliance before beginning any work
• Remove interior shelves or drawers as needed for access
• This part typically snaps into place; align tabs and press until secured
• Handle gently to avoid cracking; verify fit and airflow after installation

The Pan Slide is an OEM part for Whirlpool refrigerators, designed to support and facilitate the smooth gliding of crisper or deli drawers. It attaches to the refrigerator's interior wall, providing a track for the drawers to slide in and out easily. This ensures that users can access their stored food items with convenience and minimal effort.

Causes of a bad Pan Slide can include physical damage from overloading the drawers, wear and tear from frequent use, or cracking due to temperature variations within the refrigerator.

Symptoms of a bad Pan Slide include:

• Crisper or deli drawers sticking or difficult to move
• Visible cracks or breaks in the pan slide
• Drawers that sag or fall off the track when opened

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
