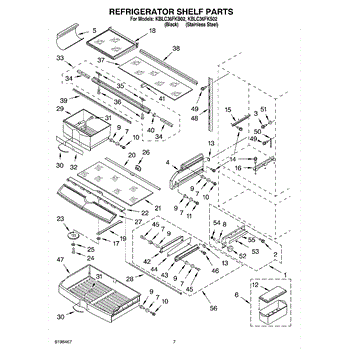

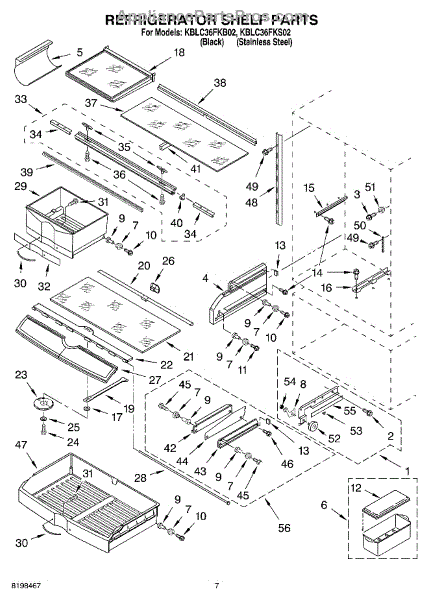

Parts for Kitchenaid KBLC36FKB02: 05 - Refrigerator Shelf Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 8-18 x 1 inch.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This flat washer provides a secure bearing surface for a fastener, helping distribute load and protect mounting surfaces. It helps maintain tight connections so assemblies stay aligned and operate quietly. What it does:

• Distributes bolt or nut pressure to prevent surface damage
• Helps keep fasteners from loosening under normal vibration
• Reduces wear between mating parts for longer life
• Can improve fit and alignment at mounting points
• Reduces noise or rattling caused by loose hardware

• Disconnect power before servicing the appliance and follow all safety instructions
• Replace only with the same style and size washer for proper fit
• Inspect mating surfaces and fasteners; replace any damaged hardware
• Tighten fasteners to the manufacturer's recommended torque; avoid overtightening

This 8-32 x .340 machine screw secures small appliance panels and components for a reliable fit. It's a simple replacement fastener when original screws are missing, stripped, or worn. What it does:

• Fastens panels, brackets, and internal components where 8-32 threads are required
• Provides a short, firm hold for thin materials and assemblies
• Useful when original mounting screws are lost or damaged
• Matches OEM thread size and length for correct fit in designed screw bosses

• One 8-32 x .340 machine screw

• Use the correct screwdriver or nut driver to avoid stripping the head
• Do not overtighten; snug to secure without deforming plastic or stripping threads
• Confirm screw length and thread size match the original before installation
• Disconnect power and follow appliance safety precautions when accessing internal parts

6 - 19 x .250

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This replacement screw secures appliance panels and components to restore proper fit and stop loose or rattling parts. A simple, OEM-compatible fastener that helps maintain safe, stable operation and original assembly alignment. What it does:

• Secures panels, trim, brackets or components to prevent movement and vibration
• Restores proper fit when a screw is missing or stripped
• Helps eliminate rattling, gaps, or misaligned parts
• Fits the OEM threaded holes and fastening points

• Disconnect power (and gas if applicable) before accessing internal components
• Use the correct driver to avoid stripping the head; hand-start threads before final tightening
• Do not overtighten—stop when snug to avoid damaging threads or plastic parts
• Keep removed hardware organized to ensure correct reassembly

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

A small hex retaining nut used to secure fittings and components in place on compatible Whirlpool appliances. Durable metal construction keeps assemblies tight and prevents loosening from vibration or normal use. What it does:

• Secures threaded studs, bolts, or fittings to maintain proper assembly alignment
• Helps prevent parts from loosening during normal operation or vibration
• Commonly used on panels, brackets, or internal component mounts
• Serves as a simple, serviceable fastener for repair or reassembly tasks

• One metal hex nut

• Disconnect power and water (when applicable) before servicing the appliance
• Use the correct size wrench or socket to tighten; avoid over-tightening which can strip threads
• Keep track of small parts and fasteners during disassembly to ensure correct reassembly
• If the original nut is corroded or damaged, replace it with this new nut of the same thread size
