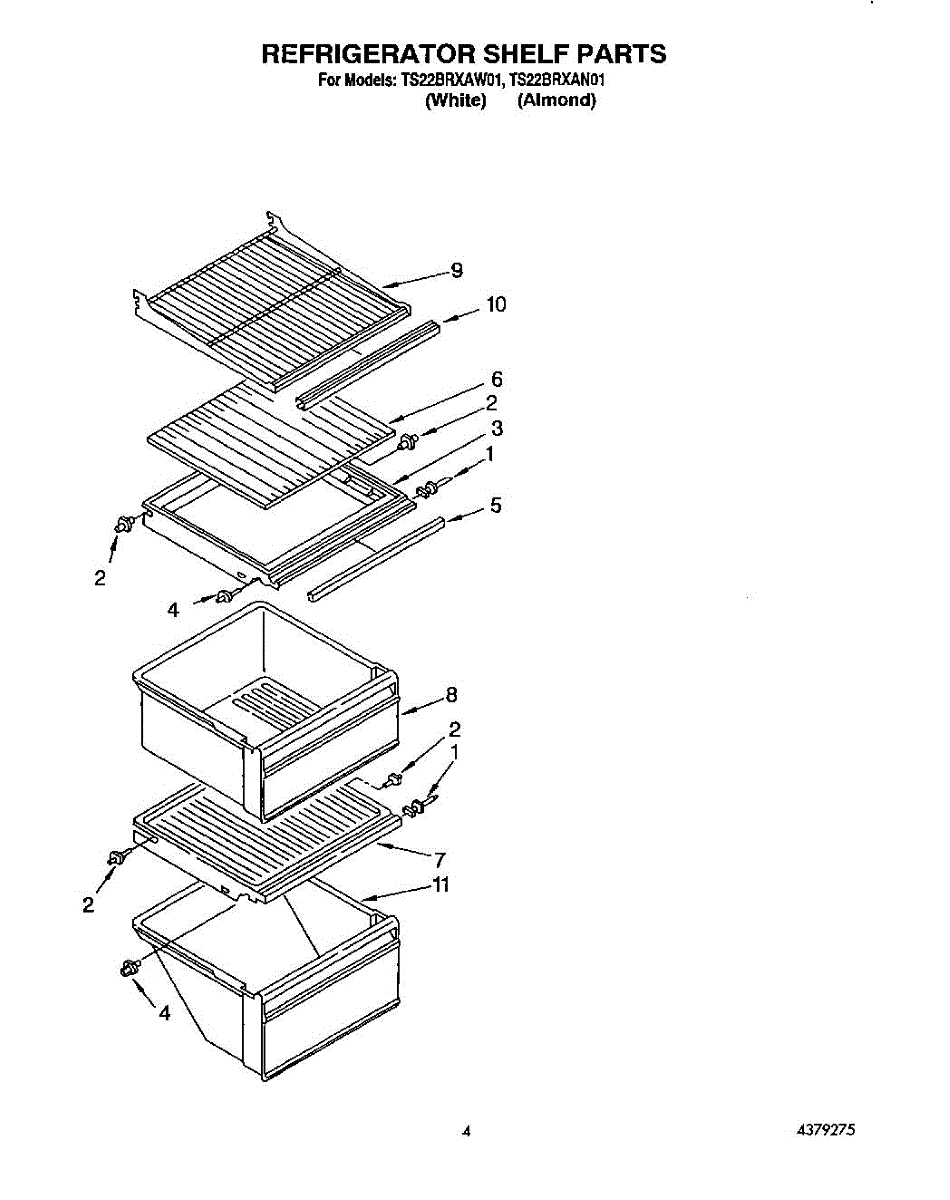

Parts for Whirlpool TS22BRXAN01: 03 - Refrigerator Shelf Parts

Replacement shelf stud kit for refrigerator compartments. Secures adjustable shelves to interior liner. Needed when original studs crack or break off.

Replacement shelf stud kit for refrigerator compartments. Secures adjustable shelves to interior liner. Needed when original studs crack or break off.

The Shelf Frame is an OEM replacement part for Whirlpool refrigerators. It is an internal frame component that provides structure and support for refrigerator shelves. Measures about 17 inches wide by 17 inches deep.

Causes of a bad shelf frame can include damage like dents, bends or cracks that compromise strength. Repeated impact over the lifespan may weaken metal mounting rails.

Symptoms of a bad shelf frame include:

• Shelves that sag, bow or dislodge from their tracks
• Inability to optimally organize refrigerator interiors
• Potential spills if shelves are overloaded
• Restricted access until replacement restores functionality

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

Please note: Does not include glass. For the glass order WP1114687.

This small plastic or metal stud inserts into the interior wall of the refrigerator to support shelves or the crisper drawer cover. It provides a stable mounting point that holds the shelf securely in place. Replace this stud if it is cracked, broken, or missing, causing shelves to sit unevenly or fall out of position.

Color: clear. Measures about 16-3/4 X 14-1/2 inches.

Cover frame that installs above the meat/deli drawer in your refrigerator. Replace if cracked, broken, or missing to restore the shelf surface.

Plastic crisper pan bin for refrigerator produce storage. Replaces cracked, broken, or missing pans to restore proper vegetable drawer function.
