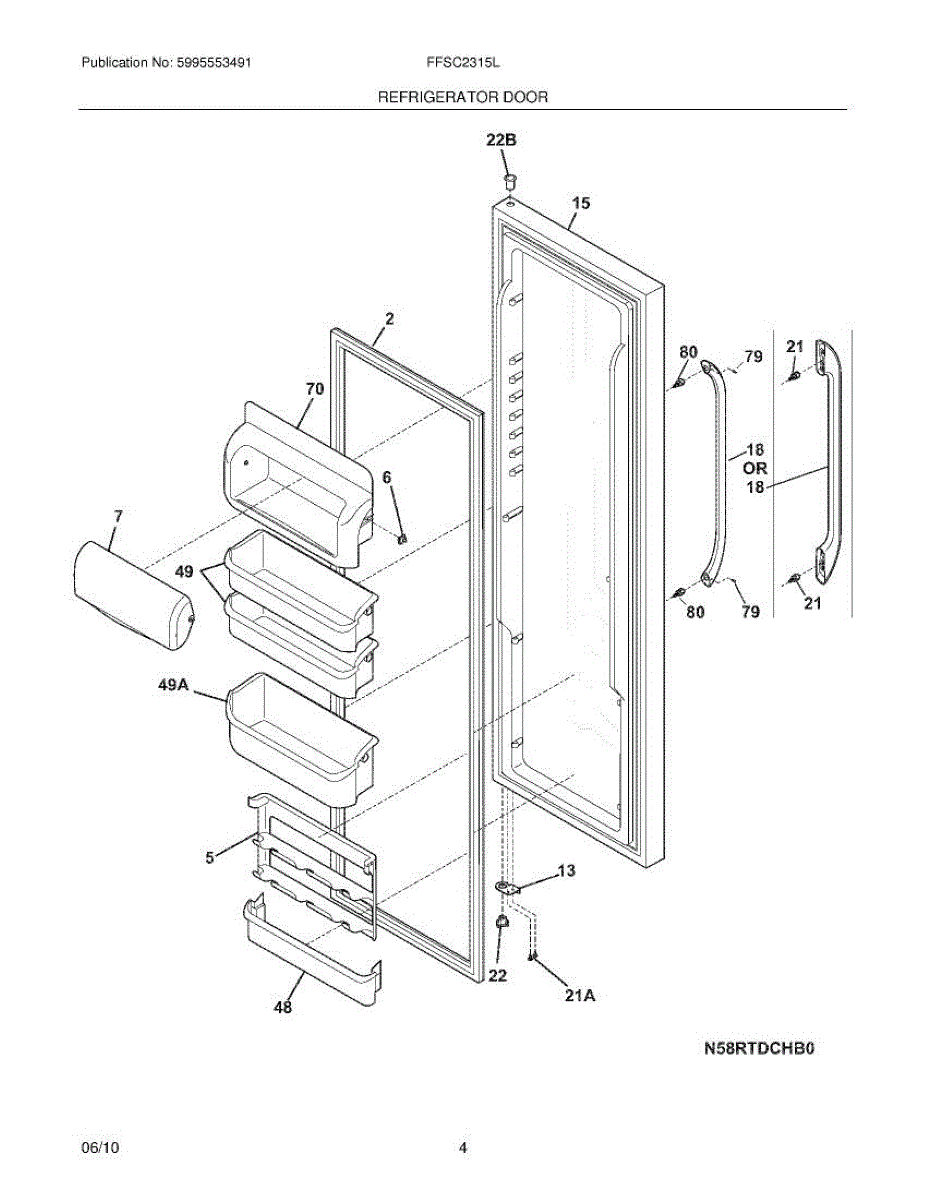

Parts for Frigidaire FFSC2315LP0: 05 - Refrigierator Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This replacement door gasket fits the refrigerator compartment. It forms a tight seal between the door and cabinet to help keep cold air in, limit moisture at the door, and maintain consistent temperatures. What it does:

• Seals the fresh food door opening to prevent air leaks
• Helps maintain stable interior temperature and humidity
• Reduces condensation and frost around the door perimeter
• Common failure signs: torn, warped, or compressed gasket; door not sealing; persistent condensation; temperature fluctuations; longer run times

• 1 refrigerator fresh food door gasket

• Disconnect power before servicing
• Lay the gasket flat to relax; gently warm with hot water or low heat to remove kinks
• Remove the old gasket; on many models, lift the liner lip or loosen retainer screws to release it
• Press the new gasket fully into the channel; check corners for a uniform seal and adjust door alignment if needed

The Can Rack is an OEM part for Frigidaire refrigerators. It provides shelving located internally for organized storage of canned drinks. The can rack creates additional capacity within the refrigerator compartment above other sliding shelves and drawers.

Causes of a bad can rack can include being damaged from accidental impacts if heavy items are dropped onto it from above over time.

Symptoms of a bad can rack include:

• Bent or misshapen wires that no longer securely hold cans
• Broken off sections that reduce usable shelf space
• Loose assembly unable to be positioned properly on refrigerator walls

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This dairy door is the flip-up cover for the refrigerator's dairy compartment on the fresh-food door. It keeps butter and cheese covered and contained, restoring a clean, finished look when the original cover is cracked or missing.

• Covers the dairy compartment and hinges open for easy access
• Helps keep small dairy items contained and organized on the door
• Replaces a cracked, warped, discolored, loose, or missing cover
• Closes properly when seated on the original hinge posts

• Disconnect power before servicing
• Remove the old cover by releasing its tabs from the hinge posts
• Align the new cover with the hinge posts and press to snap into place
• Avoid forcing brittle plastic; allow the part to reach room temperature before installation

This door stop is the replacement part that limits a refrigerator door's swing to prevent over-extension and protect the hinge and cabinet. It restores proper door alignment and helps the door close reliably. What it does:

• Stops the door at the correct open position to prevent damage to hinges and adjacent cabinetry
• Helps maintain door alignment so the seal engages fully for consistent cooling
• Reduces slamming and uneven wear that can cause noisy or misaligned doors
• Works at the hinge area to control movement rather than as a latch or gasket

• One door stop

• Designed for straightforward replacement at the hinge; remove power only if working near electrical components
• Keep hardware from the original part; replace only the components shown in the manufacturer diagram
• Inspect hinge and surrounding parts for wear while replacing the stop; tighten loose hinge screws as needed

This outer refrigerator door replaces a damaged, dented, or corroded door panel to restore appearance and help the fridge seal properly. It's the main exterior door shell that attaches to the cabinet and holds trim and hardware. What it does

• Replaces a cracked, dented, or cosmetically damaged outer door to restore the appliance's look
• Provides the mounting surface for hinges, handles, and trim pieces
• Helps maintain proper door alignment so the gasket can seal and cold air stays inside
• Stops visible corrosion or wear on the refrigerator front that can worsen over time

• One outer refrigerator door panel

• Door panels are large and may require two people to remove and install safely
• Some door-mounted parts (hinges, handles, trim, gaskets) may need to be transferred from the old door
• Unplug the appliance or disconnect power before working near electrical components; follow OEM instructions
• Handle with care to avoid scratching the finish during installation

This replacement door handle restores a solid, comfortable grip for opening and closing your refrigerator door and refreshes the appliance's appearance when the original handle is cracked, loose, or missing.

• Provides the handhold to open and close the refrigerator door
• Mounts to the outer door using existing factory hardware
• Helps resolve a cracked, broken, loose, or missing handle
• Improves door control and overall appearance

• Disconnect power before servicing and protect the door surface from scratches
• Note handle orientation; transfer/reuse existing mounting hardware if applicable
• Align with mounting points; start fasteners by hand and tighten evenly without overtightening
• The handle is secure and the door opens and closes smoothly

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This hinge bearing supports the refrigerator door pivot, reducing friction and helping the door open and close smoothly while maintaining proper alignment. Replacing a worn bearing restores smoother movement and helps reduce sagging or noise. What it does:

• Provides a low-friction pivot surface for the refrigerator door hinge.
• Helps maintain proper door alignment so the gasket seals correctly.
• Reduces hinge noise, squeaks and wobble caused by worn bearings.
• Common symptom fixes: door sagging, uneven closing, or noisy hinge movement.

• Disconnect power to the appliance before beginning any repair; turn off water if working near an ice/water dispenser.
• Remove or support the door and contents to prevent damage—doors can be heavy and require two people.
• Replace the bearing following the manufacturer's instructions; keep fasteners and hinge pins in their original order.
• After installation, check door alignment and gasket seal; tighten mounting screws as needed.

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

This door bin (also called a door shelf) mounts to the inner door panel and holds bottles, jars, and condiments. Replacing a cracked or missing bin restores storage capacity and keeps items upright when you open and close the door.

• Adds organized storage space on the door for frequently used items
• Attaches to molded rails/tabs to hold contents securely during door movement
• Replace if the bin is cracked, warped, or the retaining hooks are broken
• Common symptoms: bin falls off, won't stay in place, items slide out, or the bin is missing

• Unplug the appliance before servicing
• Lift the old bin straight up and out of the door-liner tabs; transfer contents
• Align the new bin with the same slots and press down firmly until fully seated
• Distribute weight evenly and avoid overloading after installation

The Door Bin is an OEM replacement part for Frigidaire refrigerators. Mounted on the fresh food compartment door, the white bin provides storage for snacks and beverages.

Causes of needing replacement include cracks or fractures over time from repeated loading/unloading of contents. Warping plastic that no longer securely clips into door rails is also remedied.

Symptoms of a failing bin consist of:

• Items freely sliding around uncontained during opening/closing of the door
• Difficulty completely emptying or accessing corners for cleaning
• Inability to re-secure basket into floor rails keeping it attached

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore ranges.

The Door Bin is an OEM replacement part specific to Frigidaire-brand refrigerator doors. As an interior storage component, the door bin provides convenient access to commonly used items.

Symptoms of a damaged or worn door bin include:

• Warping, cracks, or splits develop in the plastic material
• Detached or loose hinges prevent secure attachment
• Items inside shifting or falling out during opening/closing

Causes involve repeated opening/closing stresses over time weakening the plastic. Temperature fluctuations from door openings also affect integrity.

This genuine Frigidaire door bin is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
