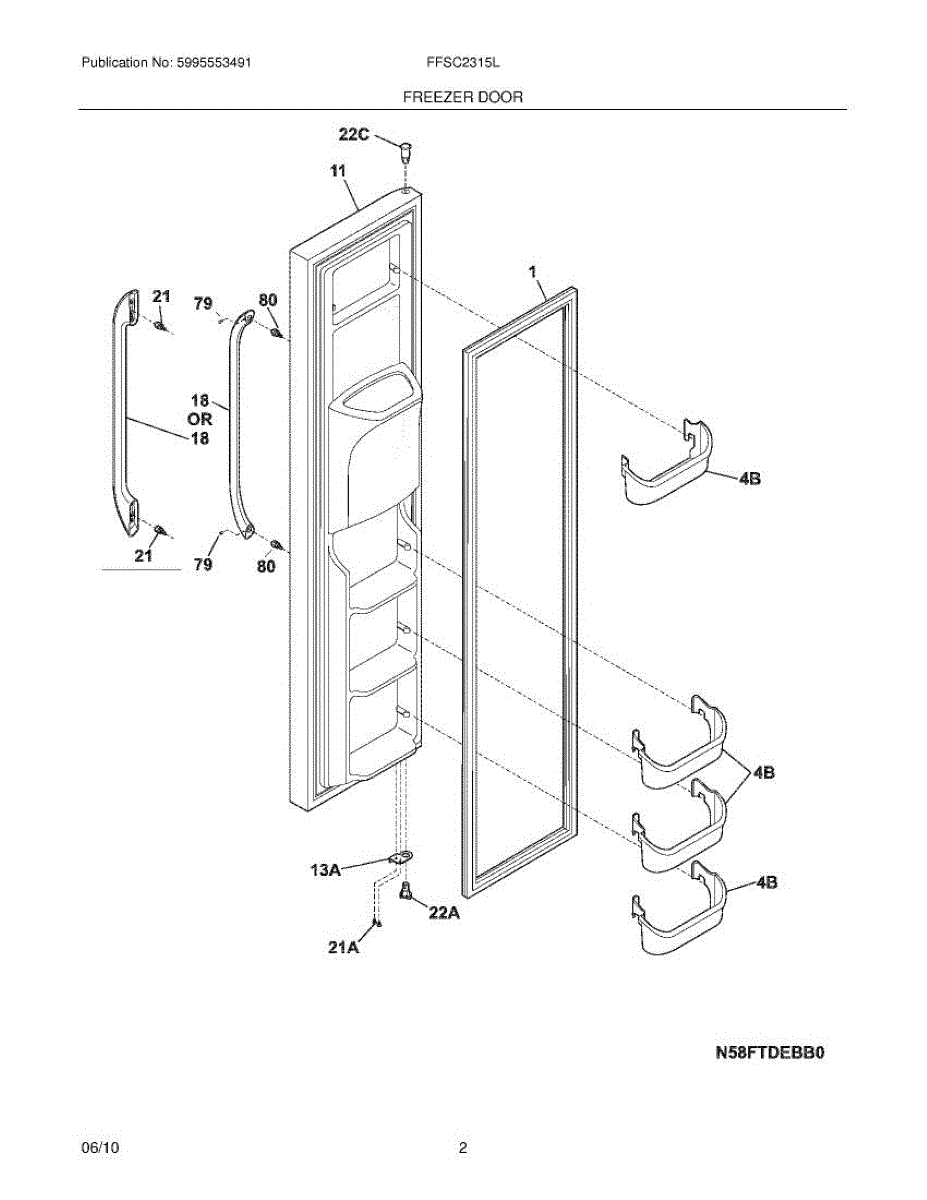

Parts for Frigidaire FFSC2315LP0: 03 - Freezer Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This freezer door gasket forms the airtight seal between the freezer door and cabinet. Replacing a worn or damaged seal helps keep cold air in, reduce frost buildup, and restore proper temperatures and efficiency.

• Creates a tight perimeter seal to prevent warm air leaks and moisture intrusion
• Helps maintain stable freezer temperature and humidity
• Reduces frost and ice accumulation around the door area
• Common symptoms: visible gaps or tears, door not sealing fully, condensation at the door edge, heavy frost near the door

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or use gentle, low heat) to relax and ease installation; do not overheat
• Remove the old gasket; seat the new gasket fully into the door channel (some models require loosening and retightening retainer screws)
• Verify an even seal all around; perform a paper/dollar-bill test and adjust corners as needed

Replace a cracked or missing refrigerator bin door to keep items contained and organized. This cover restores proper function so contents stay put and are easy to access when opening and closing the refrigerator. What it does:

• Serves as the cover for a storage bin and pivots open/closed
• Helps retain contents to prevent items from falling out during door movement
• Restores secure, tidy storage when the original door is damaged or missing
• Common symptoms: cracked plastic, broken hinge tabs, won't latch, won't stay attached

• 1 bin door

• Unplug the appliance and remove items from the bin before starting
• Release the old door from its side tabs/hinges; remove any debris from the mounting points
• Align the new door's hinge pins/tabs with the bin's slots and press to snap into place
• Check for smooth pivot and proper latching before reloading items

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

This door hinge bearing fits the refrigerator door hinge and provides a smooth, low-friction pivot point. Replacing a worn bearing restores smoother door movement and helps maintain proper alignment and a reliable gasket seal. What it does:

• Provides a low-friction surface between the hinge pin and door
• Helps keep the door aligned for consistent gasket contact
• Reduces squeaks, scraping, or binding during opening and closing
• Helps with symptoms like door sagging, not closing fully, or uneven sealing

• 1 hinge bearing

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Replace the bearing in the same orientation; reassemble hardware securely
• Reinstall the door and ensure smooth swing and full gasket contact around the perimeter

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
