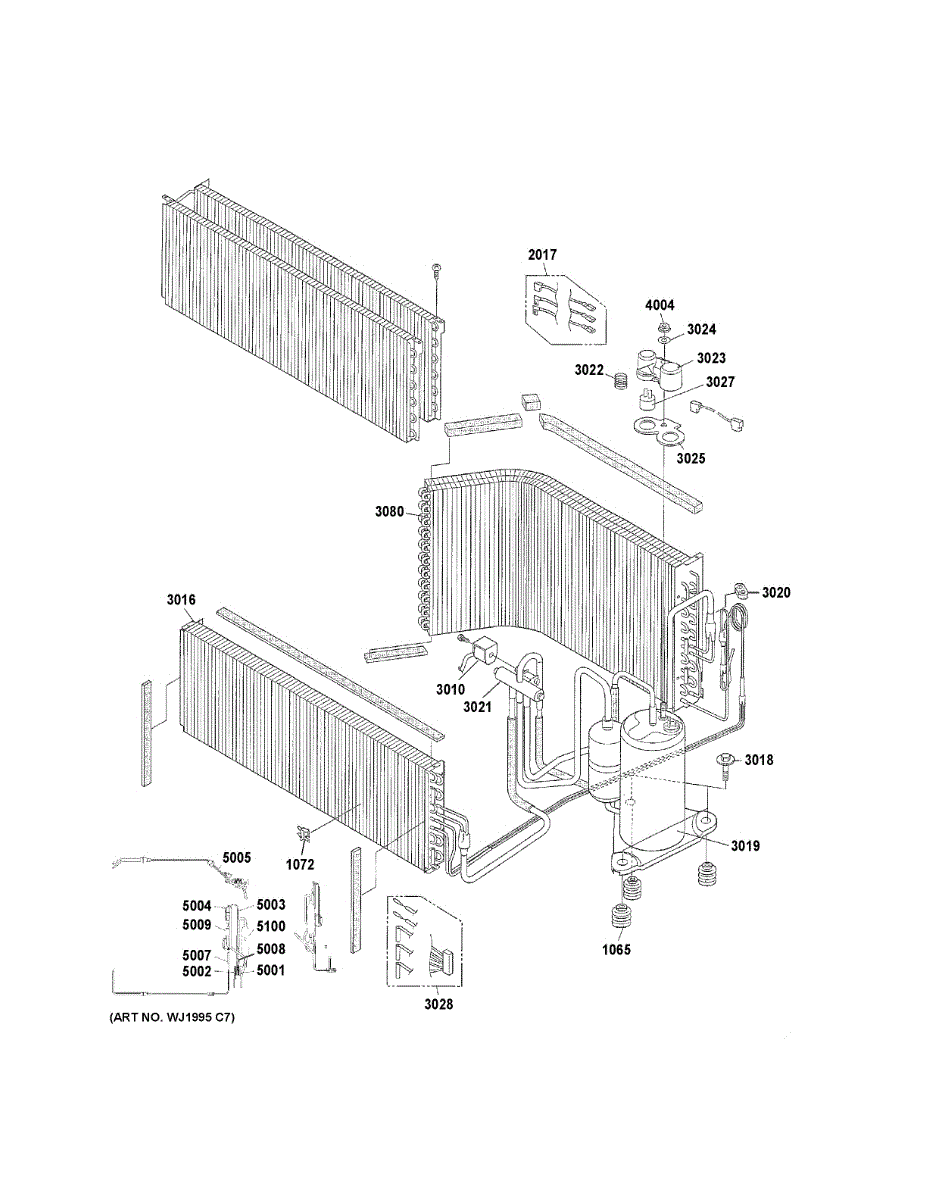

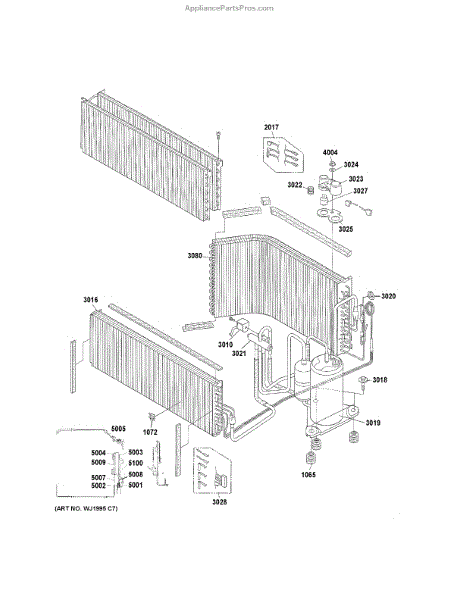

Parts for Ge AZ61H12EACW3: Sealed System Parts

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.

This evaporator coil circulates refrigerant through the refrigerator's evaporator section so the appliance can remove heat and keep food cold. Durable replacement to restore proper cooling performance when the coil is compromised. What it does:

• Transfers heat from the refrigerator interior to the refrigerant for cooling
• Supports normal frost/defrost cycles and airflow through the evaporator
• Can help resolve symptoms like reduced cooling or abnormal frost buildup near the evaporator
• Works with the appliance's sealed refrigeration components to maintain temperature balance

• One evaporator coil

• Disconnect power to the appliance before starting any repair
• Handle the coil carefully to avoid bending fins or damaging connections

A compressor protector that helps prevent compressor damage by interrupting power when the motor overheats or draws excessive current. Replaces a failed protector to restore proper compressor protection and help avoid costly compressor replacement. What it does:

• Senses excessive heat or current at the compressor and opens the circuit to stop the compressor from running.
• Helps prevent compressor burnout and wiring damage caused by overheating or locked-rotor conditions.
• Common symptom linkage: refrigerator runs but cooling is poor or compressor will not start and only hums intermittently.
• Works with the compressor start system to improve reliability when the protector is functioning correctly.

• Disconnect power to the appliance before starting any repair.
• Mount and connect the protector to the compressor terminals exactly as the original part was installed.
• Handle terminals carefully to avoid bending or damaging compressor leads.
• If the compressor or start components show other signs of failure, inspect the start relay, overload, and wiring; replace any damaged parts.

This thermistor is the refrigerator temperature sensor that helps the control board monitor and regulate cooling. Replacing a faulty sensor restores accurate temperature readings and consistent cooling performance. What it does:

• Measures internal refrigerator/freezer temperature and sends readings to the control board
• Helps the control board adjust compressor and fan operation for stable temperatures
• Can cause incorrect temperature display or uneven cooling when it fails
• Linked to excessive running, frequent defrost cycles, or poor cooling performance

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring harness carefully; avoid kinking or damaging the lead
• Ensure the connector is fully seated and any mounting clip or bracket is secured
• Some panel removal may be required; follow for access and reassembly

This lead tube is a direct-replacement service part used where a rigid small-diameter tube is required to route fluid or gas between components. It restores proper routing and connection points for safe, reliable appliance operation. What it does

• Provides a rigid connection path for fluids or gases between appliance components
• Restores proper alignment and sealing where a damaged or corroded tube causes leaks
• Helps stop symptoms such as visible leaks, loss of supply to a component, or poor system performance
• Supports secure attachment at fittings and compression joints when used with compatible hardware

• Replace only with the exact OEM part or an approved equivalent to maintain fit and sealing
• Shut off and isolate power and any fluid or gas supply before starting work
• Inspect fittings and seals; replace any damaged compression ferrules or gaskets as needed
