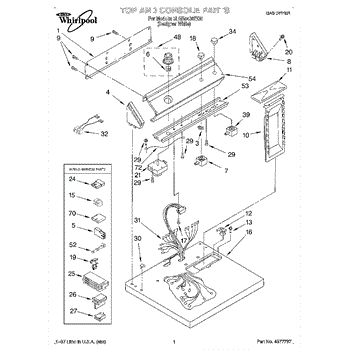

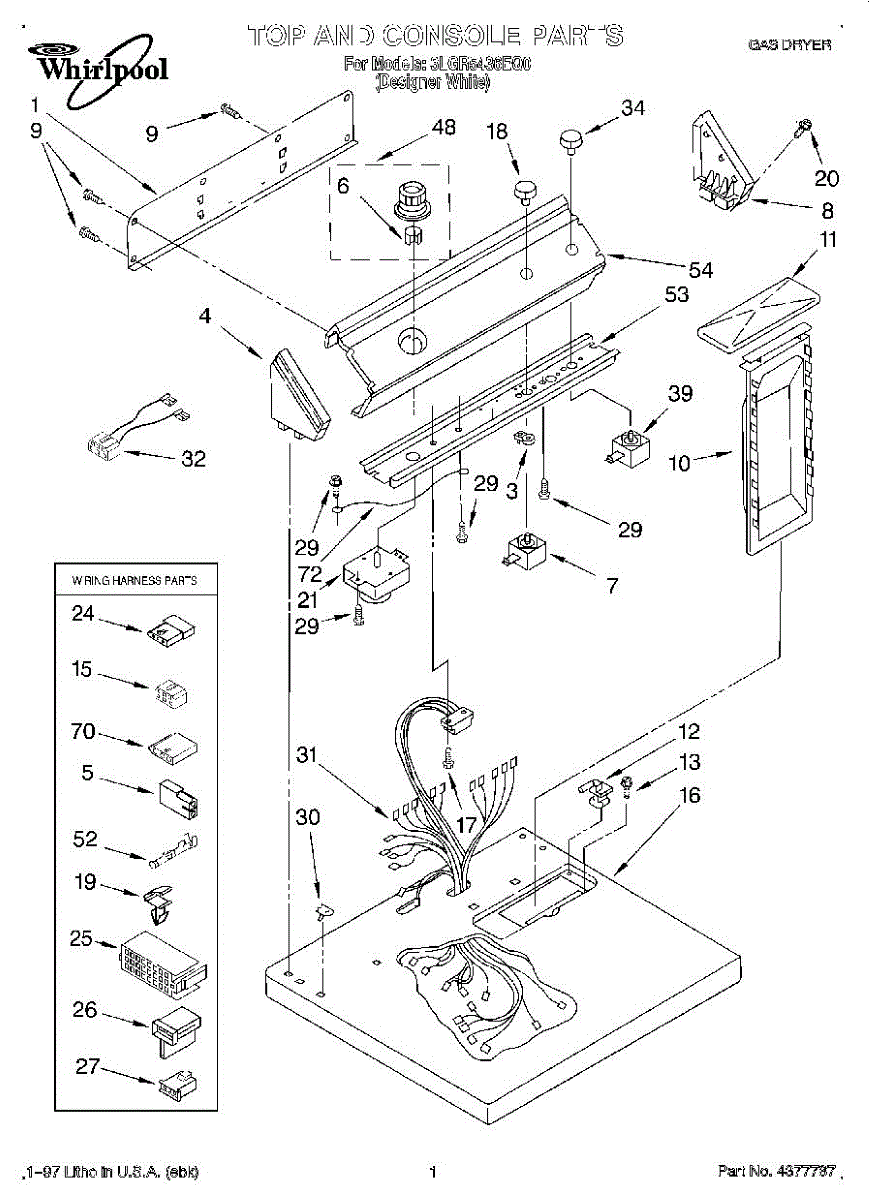

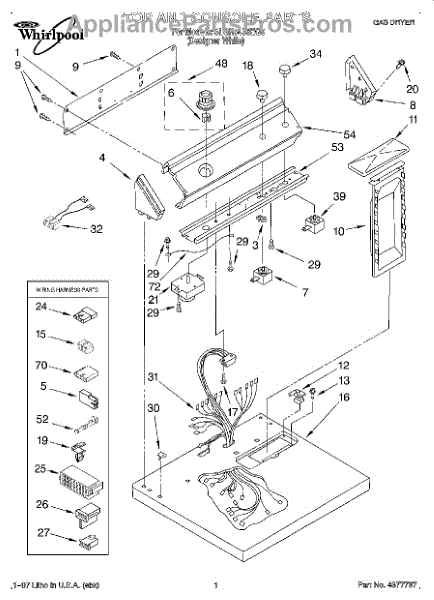

Parts for Whirlpool 3LGR5436EQ0: 01 - Top And Console, Lit / Optional Parts

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

White. Includes both left and right hand side.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A push-button signal switch that completes the user input circuit to the control board so selections register and the appliance responds to commands. Replaces a worn or unresponsive front-panel switch to restore reliable button operation. What it does:

• Sends the user's button press signal to the control board so commands are recognized
• Commonly replaced when front-panel buttons are unresponsive or intermittently work
• Helps restore proper cycle selection and control responsiveness
• Works as the user-input contact in the control/display assembly

• Disconnect power before starting repair to avoid shock or injury.
• Access the control panel per your model's service instructions; handle the display and wiring gently.
• Verify connector orientation and secure all harness connections before reassembling.
• Test operation after reassembly to confirm the new switch functions correctly.

White. Includes both left and right hand side.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Lint Screen is an OEM part for Whirlpool dryers. It is crucial for trapping lint and debris from clothes during the drying process, helping to prevent these materials from clogging the dryer vent or causing potential fire hazards. This lint screen measures approximately 20 1/2" x 7 1/2".

Symptoms of a bad Lint Screen include:

• Tearing or holes in the screen that allow lint to pass through
• Excessive lint accumulation in the dryer or vent
• The dryer taking longer than usual to dry clothes

Causes of a bad lint screen can stem from normal wear and tear, improper cleaning practices that lead to build-up and degradation, or accidental damage during handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the 19 inch long filter order 339392V.

Right handed Hinge

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

Specs: 10-16 x 1/2 inch.

White

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This is a replacement mechanical cycle timer (M480-2) that restores cycle selection and timed control on compatible laundry appliances. It lets your appliance advance through wash/dry cycles so loads finish correctly. What it does:

• Controls cycle advancement and timing for selected wash/dry programs
• Routes power to motors, heaters and pumps at the correct cycle stages
• Replacing a faulty timer often resolves intermittent timing, stuck-position, or no-cycle issues

• One replacement timer assembly (M480-2)

• Disconnect power before beginning service to avoid shock or injury
• Mark or photograph wire locations, then transfer all wires to the new timer exactly
• May require removal of the control panel or console to access the timer; use appropriate hand tools
• Test appliance through a full cycle after installation to confirm correct operation

For mating plug use 691707.

This replacement clamp secures flexible hoses and lines to prevent leaks and keep connections tight. It restores a secure seal so appliances move water or air without escaping at the joint. What it does:

• Secures inlet, drain or water lines to fittings and housings
• Helps stop leaks from loose or worn hose connections
• Keeps hoses from slipping off during operation or vibration
• Commonly replaced when clamps are corroded, broken, or no longer hold tension

• Inspect hose and fitting for damage before installing the new clamp
• Position clamp over the hose barb and tighten evenly until snug; avoid over-tightening
• Use appropriate tools (pliers or clamp driver) and follow appliance safety procedures
• Disconnect power and shut off water supply when working on water lines

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Push-in.

Color: White.

The Start Switch is an OEM replacement part for Whirlpool dryers. It is an electronic component responsible for initiating the heating elements and tumble cycles upon user command from the control panel.

Causes of a bad start switch involve general wear over extended use. Failure of the internal conducting surfaces interrupts circuit activation as well.

Symptoms of a bad start switch include:

• Heating elements or tumble cycles that will not engage properly
• Dryer fails to operate or stops mid-cycle unexpectedly
• Control panel appears non-responsive to selections
• Error codes related to ignition or power delivery faults

Note: This dryer push-to-start switch has 2 terminals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric dryer models.

This replacement timer knob lets you set and turn the dryer's cycle timer smoothly and reliably, restoring easy selection of drying times and cycle settings. Designed as the correct white knob assembly for compatible Whirlpool dryers. What it does:

• Fits onto the dryer timer shaft so you can rotate and select drying cycles and times.
• Replaces a cracked, stripped, loose or missing timer knob that prevents proper control.
• Provides a secure, tactile grip for accurate setting changes.
• Matches the original White finish for a clean, factory look.

• Disconnect the dryer from power before servicing.
• Most knobs pull straight off the timer shaft; align splines and press the replacement fully into place.
• Inspect the shaft and any retained plastic insert; transfer insert if the replacement does not include it.
• If knob is difficult to remove, use steady, even force or a soft-padded puller to avoid damaging the control panel.

For mating terminal use [AP31136300].

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
