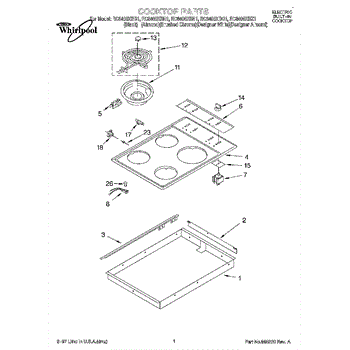

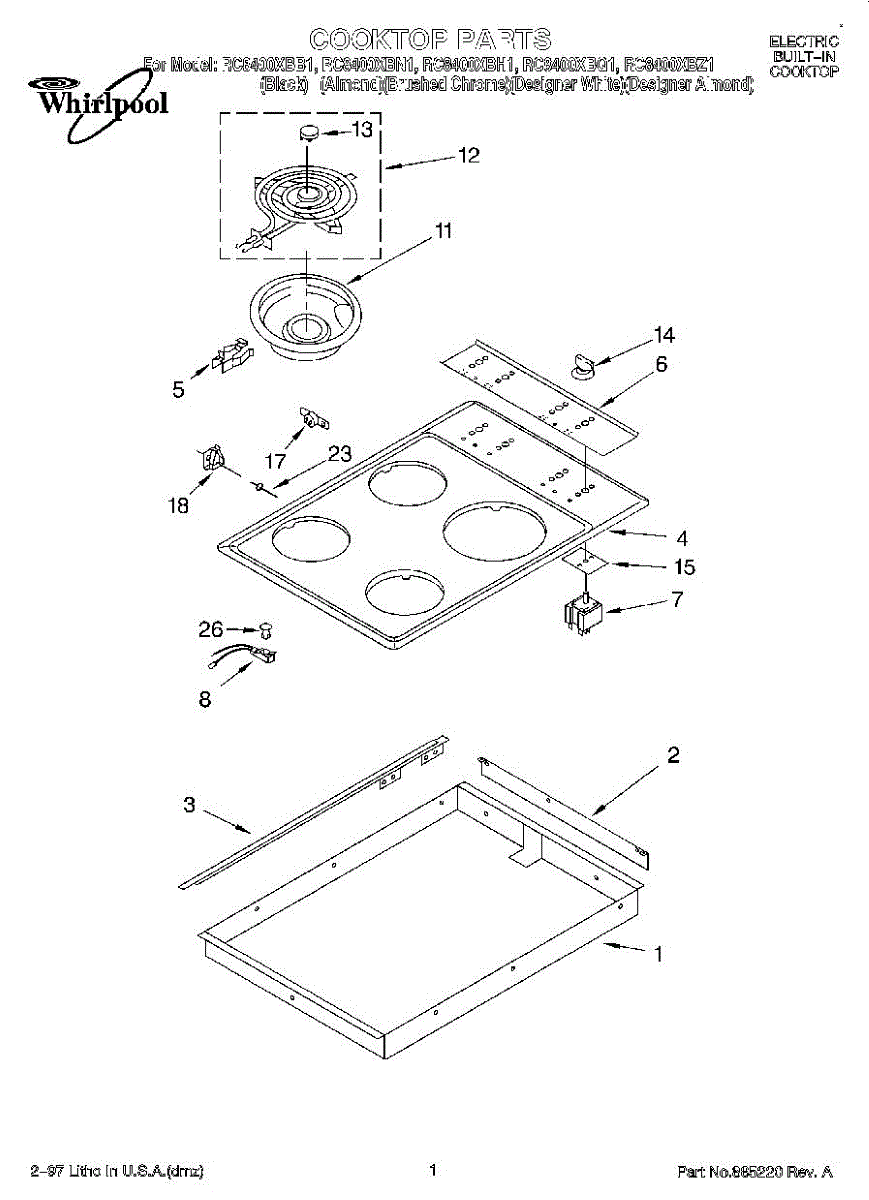

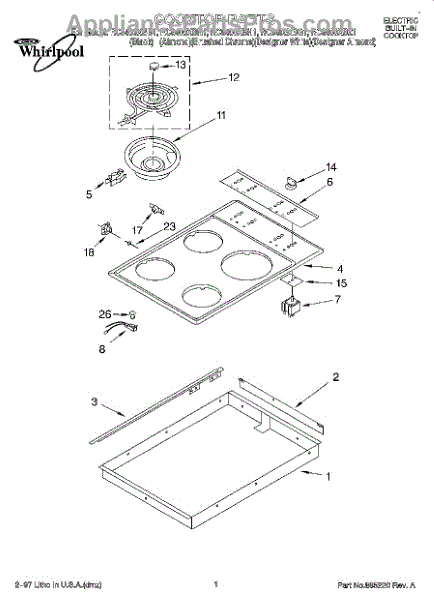

Parts for Whirlpool RC8400XBW1: 01 - Section Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

This part has been discontinued and is no longer available.

Used on the 8" element. Red Shaft

Used on the 6" element. Silver shaft

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Removable drip pan installs beneath range burners to catch spills and food debris. Replace when cracked, warped, or heavily stained for a cleaner cooktop.

Replacement 8 inch drip pan for electric ranges and cooktops. Installs under burner element to catch spills. Replace when rusted, stained, or worn.

Drip pan installs beneath burner elements to catch spills and crumbs. Replace if cracked, rusted, stained, or worn. Keeps your stovetop clean.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

This part has been discontinued and is no longer available.

White control knob that attaches to the surface burner's infinite switch. Replace this knob if yours is cracked, broken, yellowed, or missing.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

This fixed thermostat monitors and limits temperature to protect the appliance's system and components. It's a simple, non-adjustable sensor/limit switch used where a set cutoff temperature is required for safe operation. What it does:

• Opens or cuts power when the monitored temperature reaches its fixed limit to prevent overheating
• Helps stop continuous heating cycles caused by a failed control or sensor
• Commonly used as a safety cutoff in temperature-control circuits
• Can resolve symptoms like persistent overheating, failure to stop heating, or temperature-related shutdowns

• One fixed thermostat (single unit)

• Disconnect power before inspecting or replacing the thermostat to avoid shock or damage
• Handle gently; avoid bending terminals or stressing sensing elements

Factory rivet fastener secures panels, brackets, and trim on cooktops and ranges. Replace worn, missing, or drilled-out rivets to restore alignment.

Factory rivet fastener secures panels, brackets, and trim on cooktops and ranges. Replace worn, missing, or drilled-out rivets to restore alignment.

10-24 x 1/2 inch mounting screw for securing appliance panels, handles, brackets, and internal components. Replace lost, stripped, or damaged screws.

Hardware kit for securing cooktop to countertop. Includes mounting brackets and fasteners. Replace if brackets are bent, screws stripped, or missing.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification
