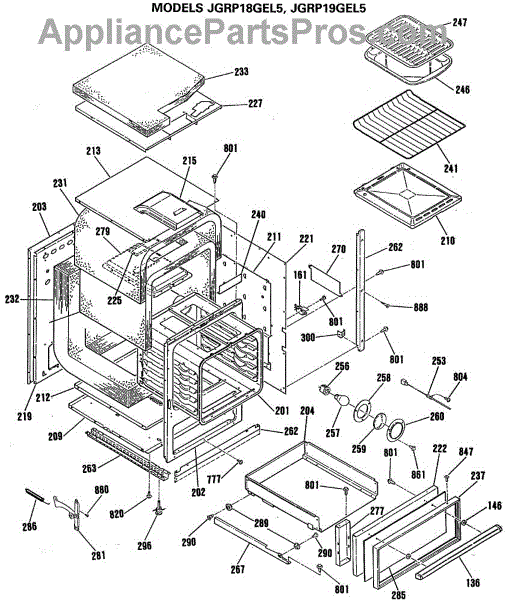

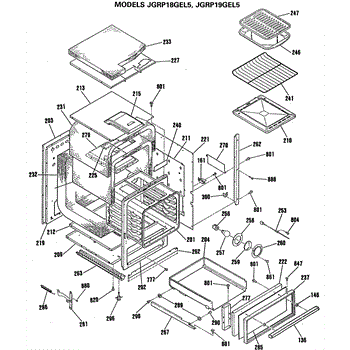

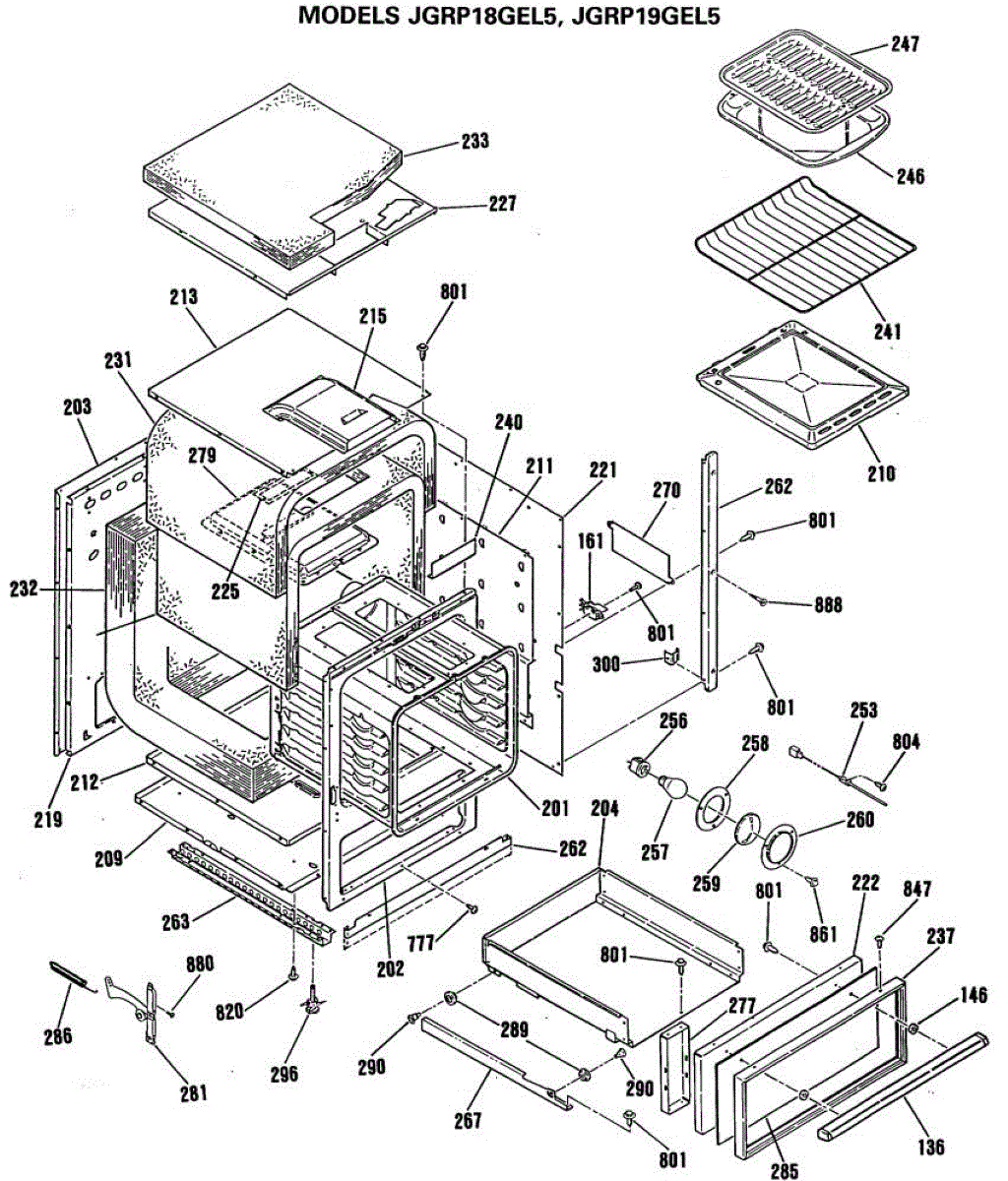

Parts for Ge JGRP18GEL5: 02 - Section2 Parts

The Oven Rack is an OEM part for GE ovens. This sturdy and durable rack is designed to fit securely in the oven's interior, providing a stable surface for baking and roasting. It is adjustable, allowing you to customize the cooking space to accommodate various dish sizes and ensure even heating.

Common causes of a bad oven rack include warping from prolonged exposure to heat, bending under heavy cookware, or rust and corrosion from moisture.

Symptoms of a bad oven rack include:

• Difficulty in sliding the rack in and out
• Warped or bent rack affecting stability
• Rust or corrosion on the rack's surface
• Inconsistent cooking results due to uneven rack positioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven lamp holder is the heat-resistant socket that secures the interior light bulb and connects it to the appliance's wiring, restoring dependable visibility so you can check food and rack positions without opening the door as often.

• Holds and powers the oven light bulb inside the cooking cavity
• Maintains a solid electrical connection to prevent flickering or intermittent lighting
• Replace if the light won't turn on with a known-good bulb
• Also replace if the socket is cracked, charred, loose, or shows signs of arcing

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the lens and bulb to access the holder; some models require access from the rear panel
• Transfer wires to the new holder one at a time and secure the mounting clip/tabs
• Reinstall the bulb and lens, restore power, and test; use the bulb type specified for your model

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

This adjustable leveling leg raises and stabilizes the appliance to ensure it sits squarely on uneven floors, improving operation and preventing rocking. Designed as a direct replacement to restore proper height and stability. What it does:

• Supports appliance weight and lets you adjust height to level the unit
• Restores a stable, wobble-free fit on uneven or sloped floors
• Helps keep doors, drawers and sealing surfaces aligned for proper operation
• Common symptom fixes: appliance rocks, sits unevenly, or door/drawer alignment is off

• One adjustable leveling leg

• Unplug the appliance (and shut off water/gas if applicable) before working underneath it
• Tip or raise the unit slightly with appropriate support to access leveling leg safely
• Thread the leg in or out to adjust height; use pliers or a wrench only if needed
• Check appliance level after adjustment and test for stability before normal use

ST10-16 X 7/16"

Package of 12

Nickel

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing
