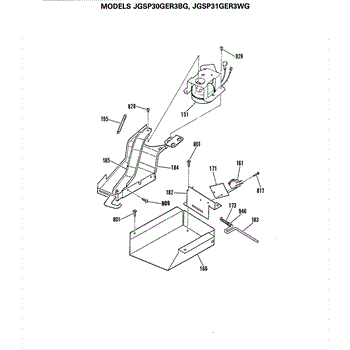

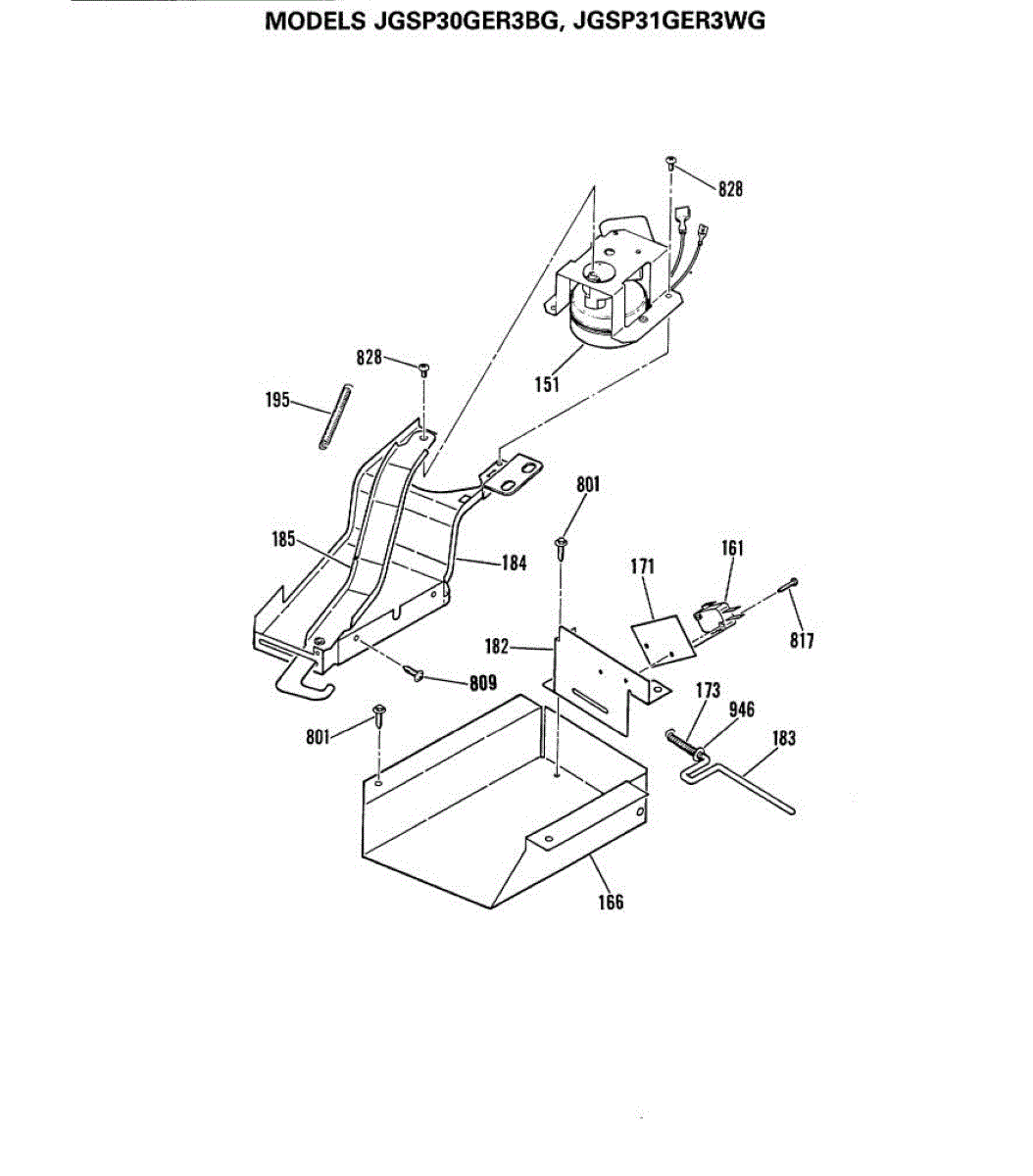

Parts for Ge JGSP30GER3BG: 02 - Section2 Parts

This oven door latch assembly secures the door during the self-clean cycle and reports lock status to the control. Replace a worn or failed latch to restore safe locking and reliable self-clean operation.

• Locks the oven door during self-clean to prevent opening at high temperatures
• Signals the control when the door is locked or unlocked
• Helps the oven start and complete a self-clean cycle safely
• Typical symptoms: self-clean won't start or finish, door won't lock/unlock, lock motor runs continuously or is noisy, lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access is typically from the top or behind the control panel; remove panels as required and note linkage/switch orientation
• Transfer any linkages or mounting hardware from the original latch in the same orientation
• Manually cycle the latch to verify smooth operation before restoring power and testing self-clean

ST10-16 X 7/16"

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping
