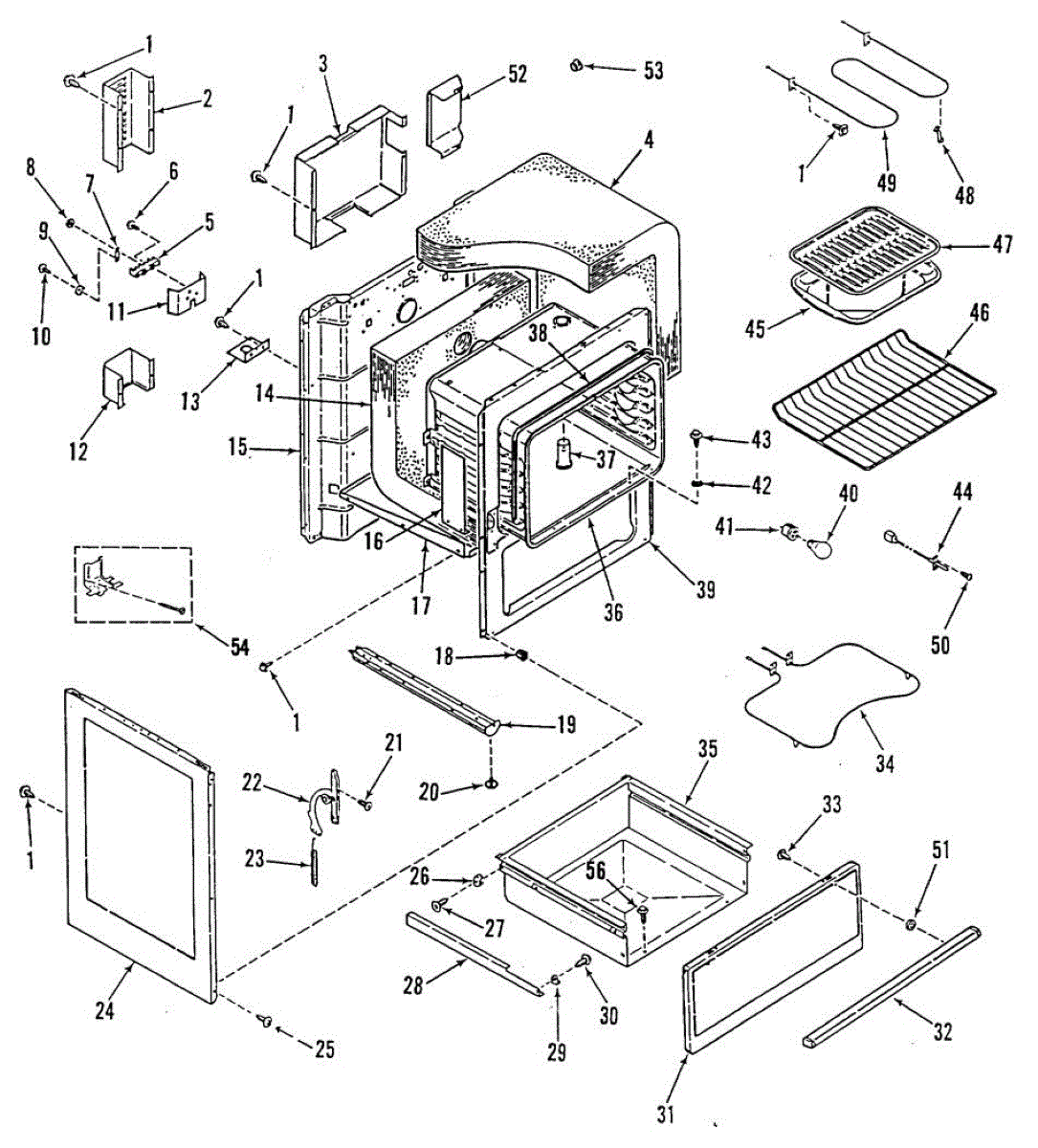

Parts for Ge L3B150GL0: 02 - Section2 Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This 6-inch surface element restores steady, even heat to the small burner on your electric range. Replace a burned-out coil to get back to reliable boiling, simmering, and everyday cooking performance.

• Converts electrical power into heat at the 6-inch burner position
• Helps when the small surface burner won't heat or heats unevenly
• Common signs include visible hot spots, blistering, or burned/loose terminals
• Seats in the drip bowl and connects to the proper surface element receptacle

• Disconnect power at the breaker or unplug the range; allow the element to cool before servicing
• Lift the old element from the drip bowl and pull straight out from the receptacle; avoid twisting or bending the coil
• Inspect the element receptacle for heat damage; replace the receptacle if contacts are burned or loose
• Fully seat the new element and ensure it sits level in the drip bowl before use
