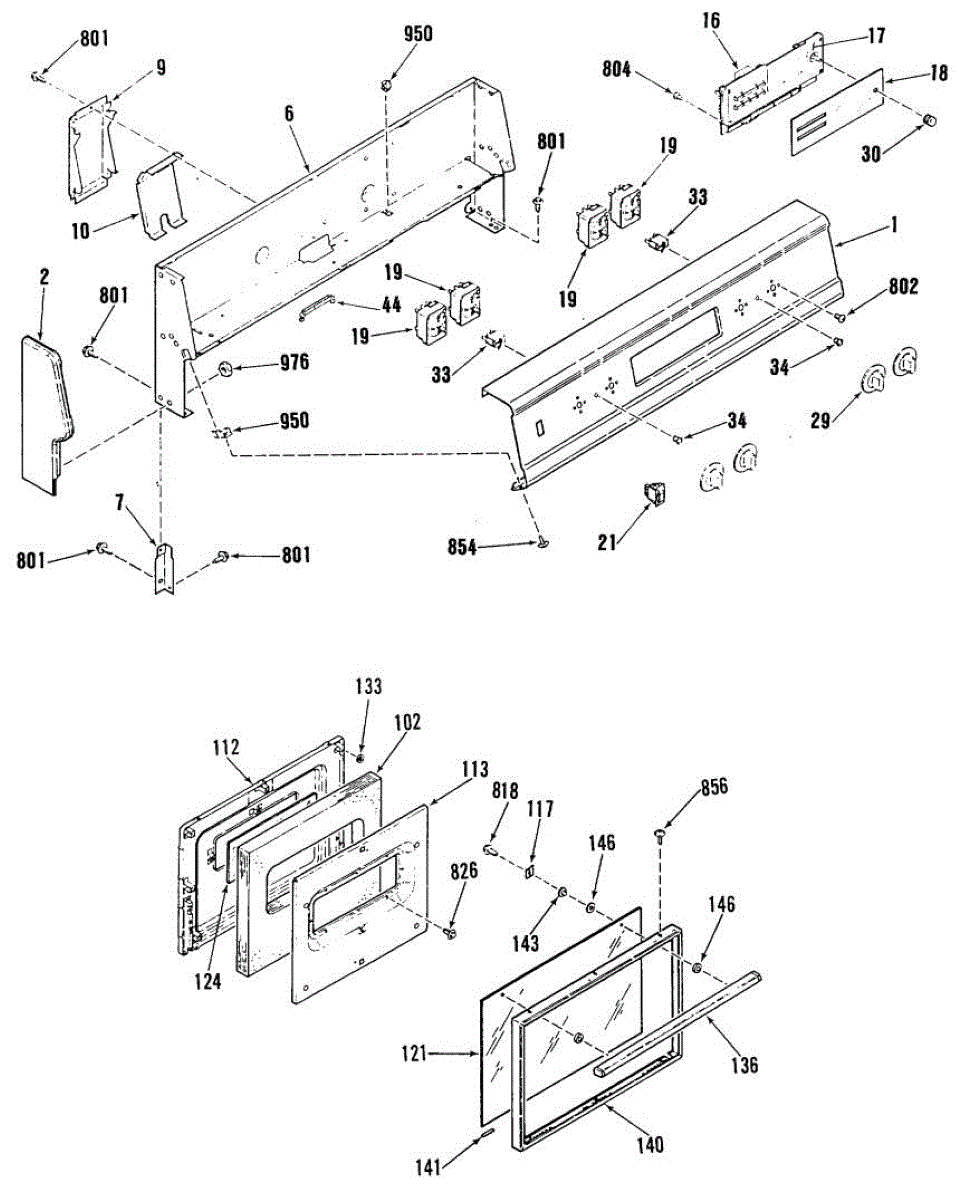

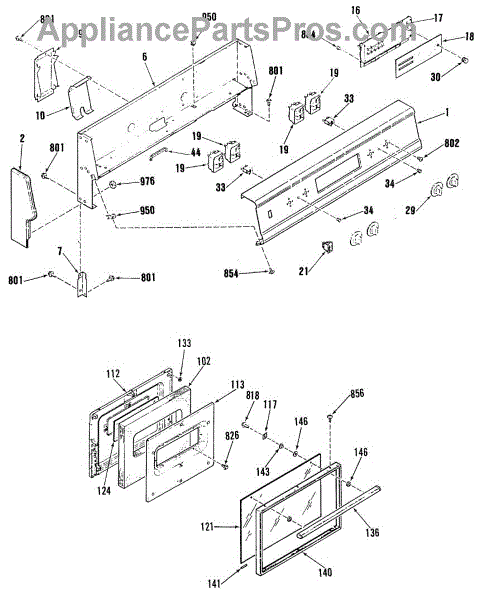

Parts for Ge L3B150GL0: 01 - Section1 Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Bake Element is an OEM part for GE ovens. This element is located at the bottom of the oven and is primarily responsible for providing the heat necessary for baking. When the oven is turned on, electricity flows through the element, causing it to heat up and glow red-hot. This bake element has ¼” push-on wire terminals. If you are unable to use your old wire connectors, order TJMA02875-1.

Symptoms of a failing oven bake element include:

• Oven not heating up properly or taking longer to heat
• Uneven cooking or baking
• Element not glowing or only partially glowing during operation
• Visible signs of blistering, cracks, or holes on the element

Causes of oven bake element failure typically include general wear and tear from regular use, exposure to high temperatures which can weaken the element over time, or electrical issues such as short circuits.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. It provides the necessary heat for broiling by producing high-intensity radiant heat from the top of the oven, allowing for cooking and browning foods.

Causes of a bad broil element can include repeated high-heat exposure, physical damage from cleaning or food spills, and electrical surges.

Symptoms of a bad broil element include:

• Inconsistent or no heat during the broiling cycle
• Visible signs of damage, such as blisters or breaks in the element
• Sparking or unusual noises when the broil function is engaged
• Uneven cooking or browning of food

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Chain from floor to range design

The Hinge, Left Side is an OEM part for GE ovens. It provides support and allows for the smooth operation of the oven door, ensuring it opens and closes properly.

Causes of a bad hinge can include wear and tear over time, rust or corrosion due to exposure to heat and moisture, and damage from accidental impact or improper handling.

Symptoms of a bad hinge, left side include:

• Difficulty in opening or closing the oven door
• Oven door not staying securely closed
• Door misalignment
• Squeaking or creaking noises when moving the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Door Hinge is an OEM part for GE ovens and allows the oven door opens and closes smoothly and securely. The hinge facilitates easy access to the oven's interior, contributing to a user-friendly cooking experience.

Over time, the right door hinge can wear out or become damaged due to frequent use and the constant stress of holding the door's weight. Causes of a bad hinge include metal fatigue, rust, and physical impact.

Symptoms of a malfunctioning Right Door Hinge include:

• The oven door feels loose or wobbly when opened or closed.
• Difficulty in fully closing the oven door, which may affect the oven's ability to maintain temperature.
• A noticeable squeaking or grinding noise during the door's operation.
• Visible wear or damage to the hinge itself.

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Package of 12

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

Includes 12 washers.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
