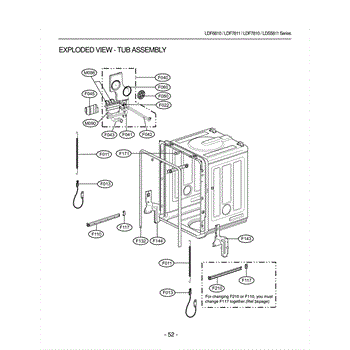

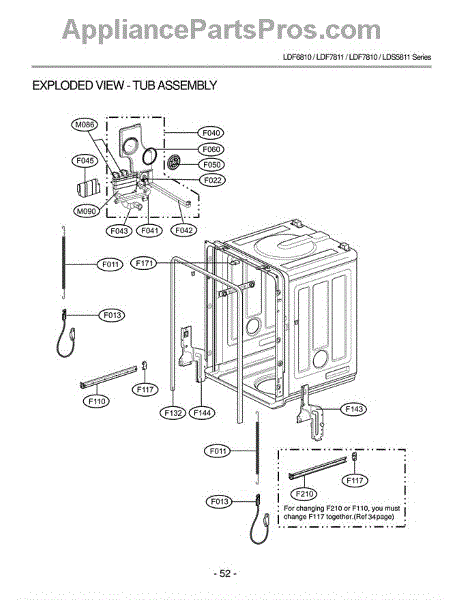

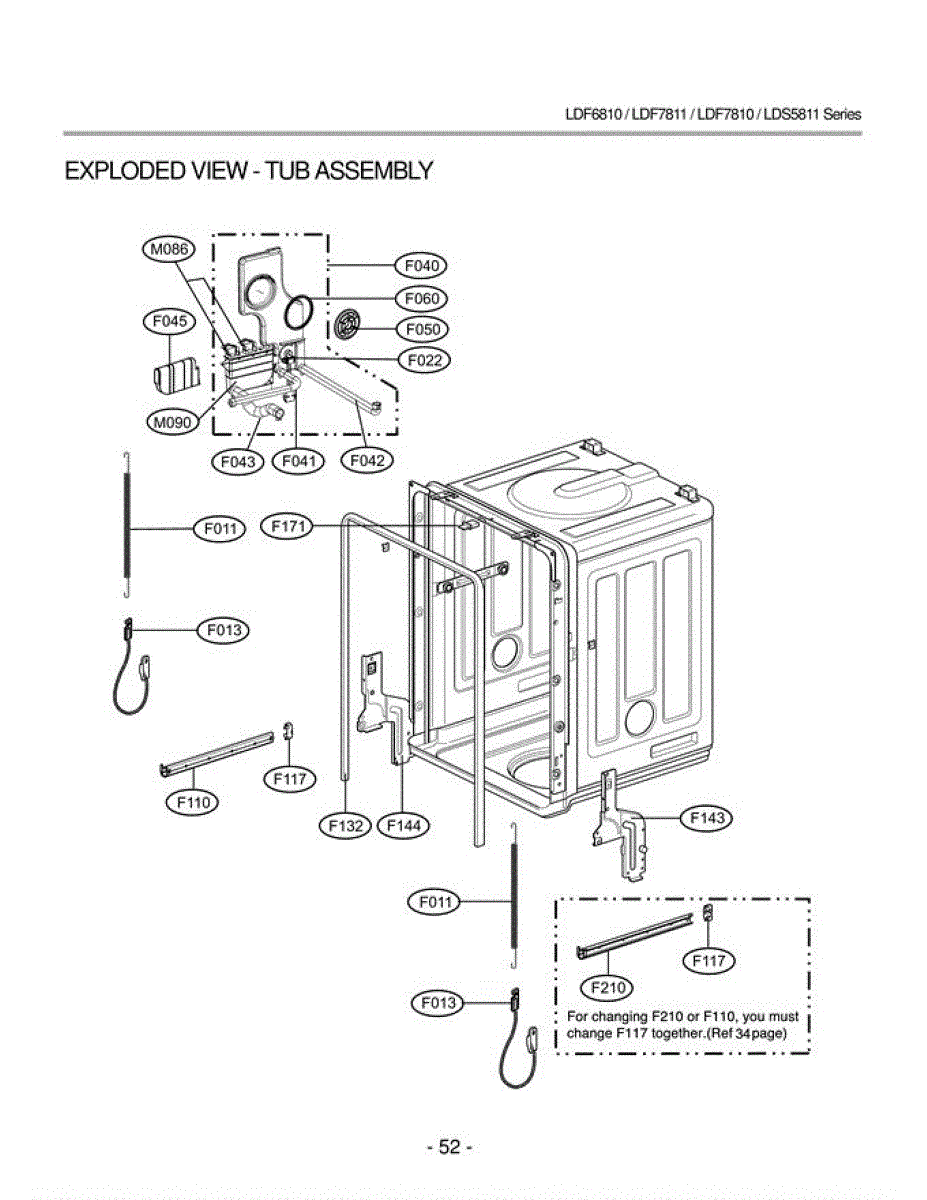

Parts for Lg LDS5811ST / ASTEEUS: Section 2 Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This door hinge spring counterbalances the dishwasher door so it opens smoothly and stays where you set it. Replace a weakened or broken spring to restore proper door tension and prevent the door from dropping or slamming.

• Provides the tension that counterbalances the door through the hinge mechanism
• Helps the door open/close smoothly and remain at a desired angle
• If failed, symptoms include the door dropping quickly, feeling heavy, uneven side-to-side movement, or a loud snap when opening

• Disconnect power and turn off water supply before servicing
• Support the door and remove the toe-kick/access panel to reach the hinge area
• The spring is under tension—use gloves/eye protection and carefully relieve tension from the hinge hook
• Install the new spring in the same mounting holes/positions; check door balance (many techs replace springs in pairs for even tension)

The Door Hinge Cable Assembly is an OEM replacement part for LG dishwashers. It consists of cables and springs that connect the dishwasher door to the tub, allowing controlled door opening and closing movements. The cable assembly allows for smooth opening and closing of the dishwasher door while providing counterbalancing weight to offset the door weight. It has 2-inch by 3/4-inch plastic pieces and an 8-inch rope section.

Causes of hinge cable failure stem from repeated opening/closing actions gradually fatiguing the cable material combined with potential corrosion developing on springs over years of use cycles.

Symptoms of a damaged hinge cable assembly include:

• Difficulty opening or closing the dishwasher door smoothly
• Door drifting open or slamming shut without control
• Visible slack, fraying or kinking in cable sections
• Rattling or grinding noises during door movements

This genuine LG assembly is also compatible with select Sears/Kenmore dishwasher models as well.

This dishwasher sensor assembly contains the thermistor that monitors wash-water temperature and sends readings to the control. Replacing a faulty sensor restores accurate heating and cycle timing for consistent cleaning and to prevent temperature-related interruptions. What it does:

• Measures wash-water temperature via an NTC thermistor
• Sends a resistance signal to the control to manage heater operation and cycle timing
• Helps maintain target temperatures for proper cleaning performance
• Common failure symptoms include no heat or overheating, long/short cycles, temperature-related errors, or poor cleaning/drying

• Disconnect power at the breaker and shut off water before servicing
• Access the sump area from the bottom; you may need to pull the dishwasher forward for clearance
• Expect some residual water—protect the area with towels
• Seat the sensor fully in the sump opening, reconnect the harness, and run a test cycle to check for leaks and proper heating

This guide assembly is the track that supports and directs a dishwasher rack as it slides in and out. Replace a worn or damaged guide to restore smooth rack movement, alignment, and reliable loading. What it does:

• Provides the sliding path that supports and guides the dishrack
• Maintains rack alignment to prevent derailment
• Helps the rack extend and retract smoothly without binding
• Common symptoms: rack hard to slide, tilts or falls off track, scraping/grinding noises, visible cracks or broken tabs on the guide

• 1 guide assembly

• Disconnect power and shut off water before servicing the dishwasher
• Pull the rack out and remove any end caps or stops to access the guide
• Release locking tabs or screws, note orientation, and swap the old guide with the new one
• Reinstall stops/end caps and test rack travel for smooth operation

This inlet hose routes fresh water into the dishwasher during the fill cycle. Replace a cracked, kinked, or leaking hose to restore proper water flow and help prevent puddles or water damage beneath the unit.

• Routes water into the dishwasher during fill
• Maintains a sealed path to help prevent leaks
• Common fix for leaks under the unit, visible cracks/kinks, or slow/no fill
• Replaces aged, brittle, swollen, or punctured tubing

• Disconnect power and shut off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing the old hose
• Note the original routing; transfer and secure existing clamps/fittings as needed
• Restore water and run a short cycle while checking all connections for leaks

This hose connector links internal water lines inside the dishwasher and maintains a secure, leak-resistant seal for proper water flow during each cycle. Replacing a worn connector helps stop leaks and keeps cleaning performance reliable.

• Joins internal water lines/components with a tight, reliable seal
• Helps prevent drips and leaks at a hose connection point
• Supports consistent water circulation through the wash system
• Typical symptoms: puddles under the unit, moisture around the base, visible cracks/swelling at the connector, or a loose fit

• Unplug the dishwasher and turn off the water supply before servicing
• Remove the toe-kick/access panel; place a towel to catch residual water
• Note hose routing and orientation; fully seat the connector and transfer/reuse existing clamps
• After reassembly, run a short cycle and inspect all connections for leaks

This is a common fastening nut used to secure panels, trim, or components on compatible LG appliances. It provides a simple, reliable way to hold mating parts in place and restore proper fit and function. What it does

• Secures panels, brackets, or hardware to prevent movement or vibration
• Stops rattling or loose parts caused by a missing or worn nut
• Restores proper alignment when replacing damaged or stripped fasteners
• Works where a standard threaded nut is required for reassembly

• One common nut as pictured

• Disconnect power and water before servicing the appliance
• Use the properly sized wrench or socket to avoid rounding the nut
• Do not overtighten; tighten until snug and secure per OEM torque guidance
• Replace like-for-like—thread size and type match the original

This gasket creates a watertight seal at its designated connection point in the dishwasher, helping keep wash water contained throughout the cycle. Replacing a worn seal helps stop nuisance leaks and protects nearby cabinetry and floors. What it does:

• Forms a tight, leak-resistant seal between mating dishwasher components
• Helps keep wash water inside the tub to maintain proper cleaning performance
• Wear, flattening, or tears can allow drips or pooling during/after cycles
• Common clues: visible damage, moisture at the mounting area, or water on the floor near the unit

• 1 gasket

• Disconnect power and turn off the water supply before servicing
• Access the gasket location per your model's service information; note the old seal's orientation
• Clean the channel/mating surfaces; seat the new gasket evenly without stretching or twisting
• Reassemble and run a short test cycle to check for leaks

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Float Assembly is an OEM replacement part for LG dishwashers. It is a sensor located inside the dishwasher that monitors water levels during wash cycles. The float assembly precisely indicates water levels to the control system to determine adequate water is available throughout the cleaning and rinsing functions. Proper water level detection is crucial for achieving sparkling clean dishes.

Causes of a faulty float include mineral buildup on sensors overtime, cracks or leaks developing, and damage to electrical wiring from impacts.

Symptoms of a bad float assembly include:

• Incomplete or inefficient wash cycles due to low water levels
• Water remaining in the bottom of the tub after a cycle
• Drainage issues related to inaccurate water level readings
• Error codes related to improper filling and draining of water

This OEM LG part is also compatible with some Sears/Kenmore models.

A replacement rail assembly that supports the dryer drum and helps maintain smooth, quiet rotation. Restores proper drum alignment and reduces rubbing or scraping sounds when the drum turns. What it does:

• Supports and guides the dryer drum for stable rotation
• Helps prevent drum wobble, friction noises, and uneven wear
• Restores correct drum alignment after rail or support failure
• Can improve noisy operation caused by worn or damaged rails

• One rail assembly

• Disconnect power before beginning repair; for gas dryers also shut off gas supply
• Drum removal is commonly required for access — follow the OEM service instructions
• Inspect adjacent drum glides, rollers, and seals and replace if worn

This door gasket forms the airtight, watertight seal around the dishwasher tub opening. A fresh, pliable seal helps prevent leaks, reduce noise, and ensure proper wash performance by keeping water and steam inside the cabinet.

• Creates a continuous seal between the tub and door to prevent leaks
• Can help resolve water leaking from the sides or bottom of the door
• May improve door closure feel if the old seal is flattened, torn, or brittle
• Replacing a worn gasket can reduce cycle noise and moisture escaping during operation

• Unplug the dishwasher and shut off water supply before service
• Gently pull out the old gasket from the channel; clean the groove of debris and residue
• Press the new gasket evenly into the channel, keeping equal length on both sides and top
• Close the door and let the gasket settle; check for even compression and test for leaks

The Door Gasket is an OEM part for LG dishwashers. It forms a watertight seal around the dishwasher door, preventing leaks during the wash cycle. This gasket ensures that water stays inside the dishwasher, promoting efficient cleaning and protecting your kitchen from water damage.

Causes of a bad door gasket can include regular wear and tear, buildup of detergent residue, or damage from closing the door on obstructive items. Over time, the gasket can become brittle or cracked, compromising its sealing capabilities.

Symptoms of a bad door gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformities in the gasket
• The dishwasher door not closing properly
• Increased moisture or puddles around the base of the dishwasher

This OEM LG part is also compatible with Sears/Kenmore models.

This hinge assembly secures and pivots a refrigerator or freezer door to ensure proper alignment and smooth opening. Replaces a worn or damaged door hinge to restore stable door movement and a tight seal. What it does:

• Supports the appliance door and provides a pivot point for opening and closing.
• Restores correct door alignment to help maintain an even seal and reduce gaps.
• Reduces sagging, scraping, or uneven movement caused by a worn hinge.
• Works with the cabinet mounting point to keep the door stable during use.

• One hinge assembly

• Turn off power to the appliance and remove stored items from the door before starting.
• Use proper tools and follow OEM instructions or service manual for safe removal and installation.
• Handle glass shelves and door panels carefully; some installations require temporary support of the door.

This door latch and lock assembly secures the dishwasher door and signals the control that it's safely closed. Replacing a worn latch restores firm door closure, a reliable seal, and consistent cycle operation. What it does:

• Locks the door so cycles can start and continue without interruption
• Helps compress the door gasket for a proper, leak-resistant seal
• Sends a door-closed signal to the control
• Common symptoms: won't start with the door shut, door won't latch or pops open, cycle pauses when jostled, water leaking at the door edge

• One door latch/lock assembly

• Disconnect power at the breaker before servicing
• Remove the inner door panel to access the latch at the top of the door
• Note wire connector positions; move them to the new assembly and secure the latch
• Check latch engagement with the strike and adjust alignment if needed before reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
