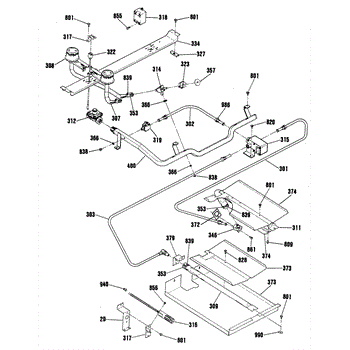

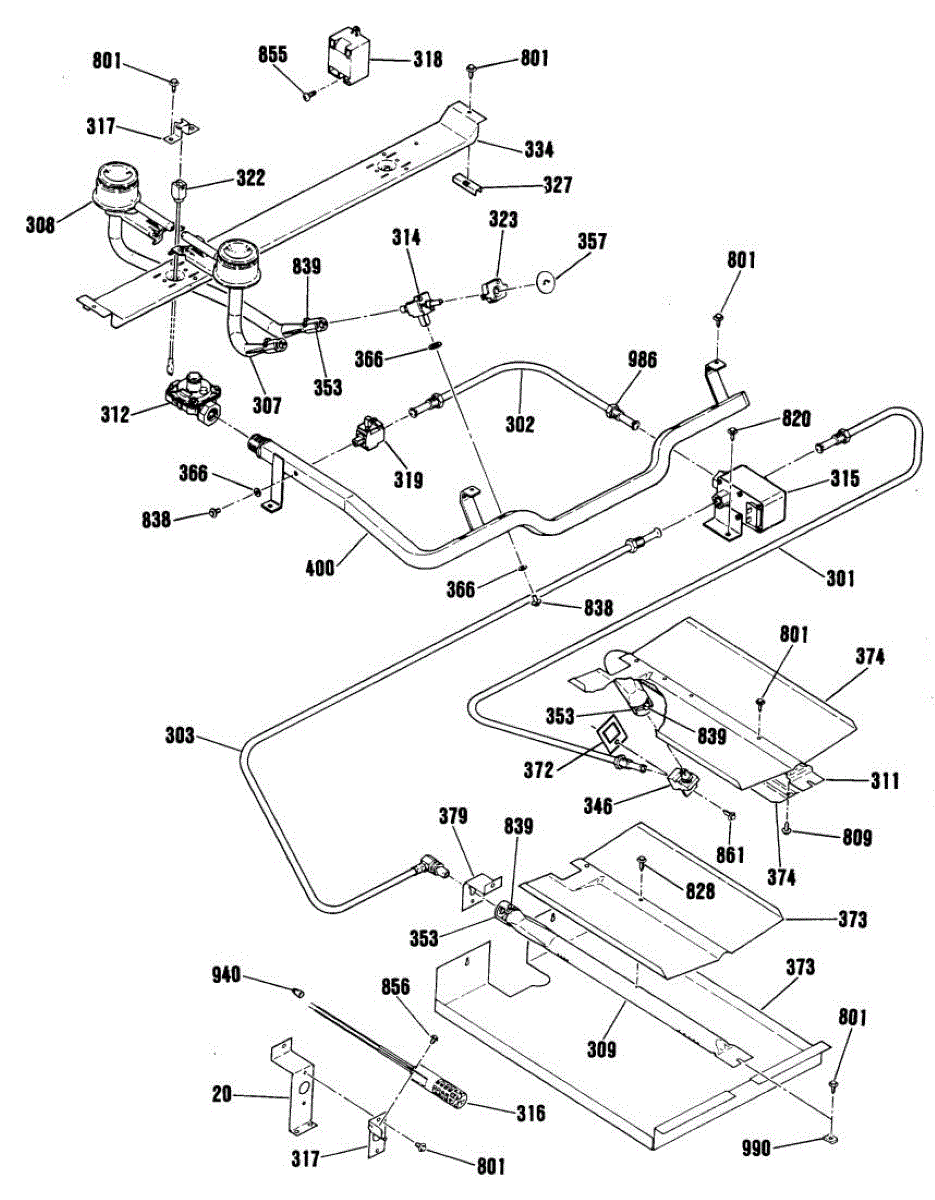

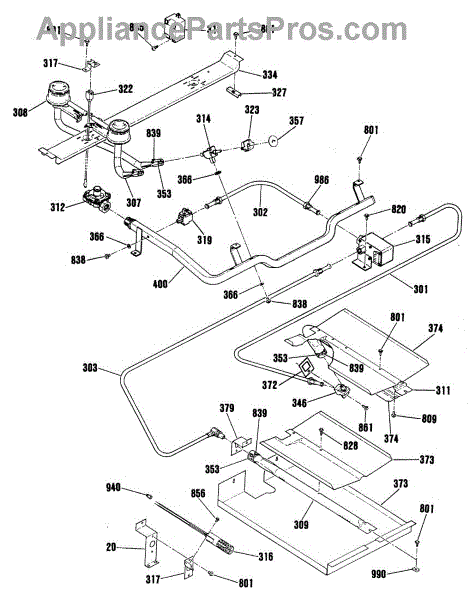

Parts for Ge JGDS10GER1WH: 03 - Section3 Parts

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This orifice fitting bracket secures the orifice/fitting assembly to the appliance, keeping the fuel delivery components aligned for reliable burner operation. It replaces a worn or damaged bracket to restore stable positioning of the orifice. What it does:

• Holds the orifice/fitting in the correct position on the manifold or burner assembly.
• Prevents movement or misalignment that can cause uneven flames or ignition problems.
• Helps maintain a secure connection between the orifice and fuel line/fitting.
• Common symptom: loose or wobbly orifice, inconsistent burner operation, or difficulty igniting.

• One orifice fitting bracket.

• Turn off the gas supply and unplug the appliance before beginning any work.
• Installation typically requires removing access panels and securing the bracket with the existing fasteners; keep original hardware unless replacement is specified.
• After installation, check for proper alignment and ensure there are no gas leaks before returning the appliance to service.

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

Package of 12

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

Nickel

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a package of twelve replacement nuts used to secure appliance panels and components. These genuine-style nuts restore fastener retention to reduce looseness and rattling and help keep parts aligned during operation. What it does:

• Secures panels, brackets, and fasteners to maintain proper component alignment
• Prevents vibration-related loosening that can cause noise or intermittent contact
• Replaces missing or damaged nuts that can allow parts to shift or fall off
• Used wherever the matching nut size and thread are required by the appliance

• Disconnect power (and gas, if applicable) before servicing the appliance.
• Verify the nut size and thread match the stud or bolt before installation.
• Hand-start threads, then tighten with the appropriate driver or wrench; avoid overtightening.
