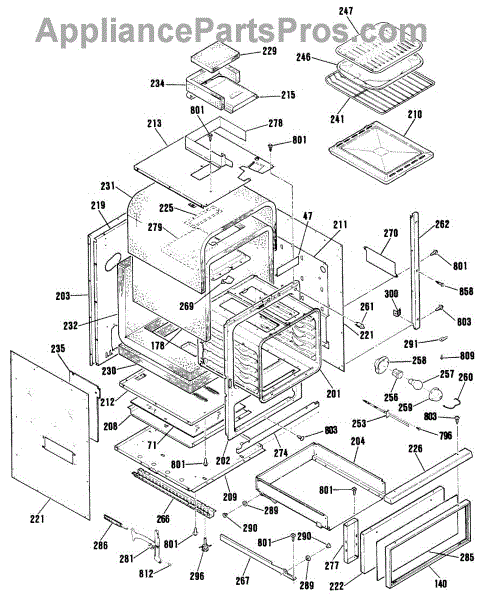

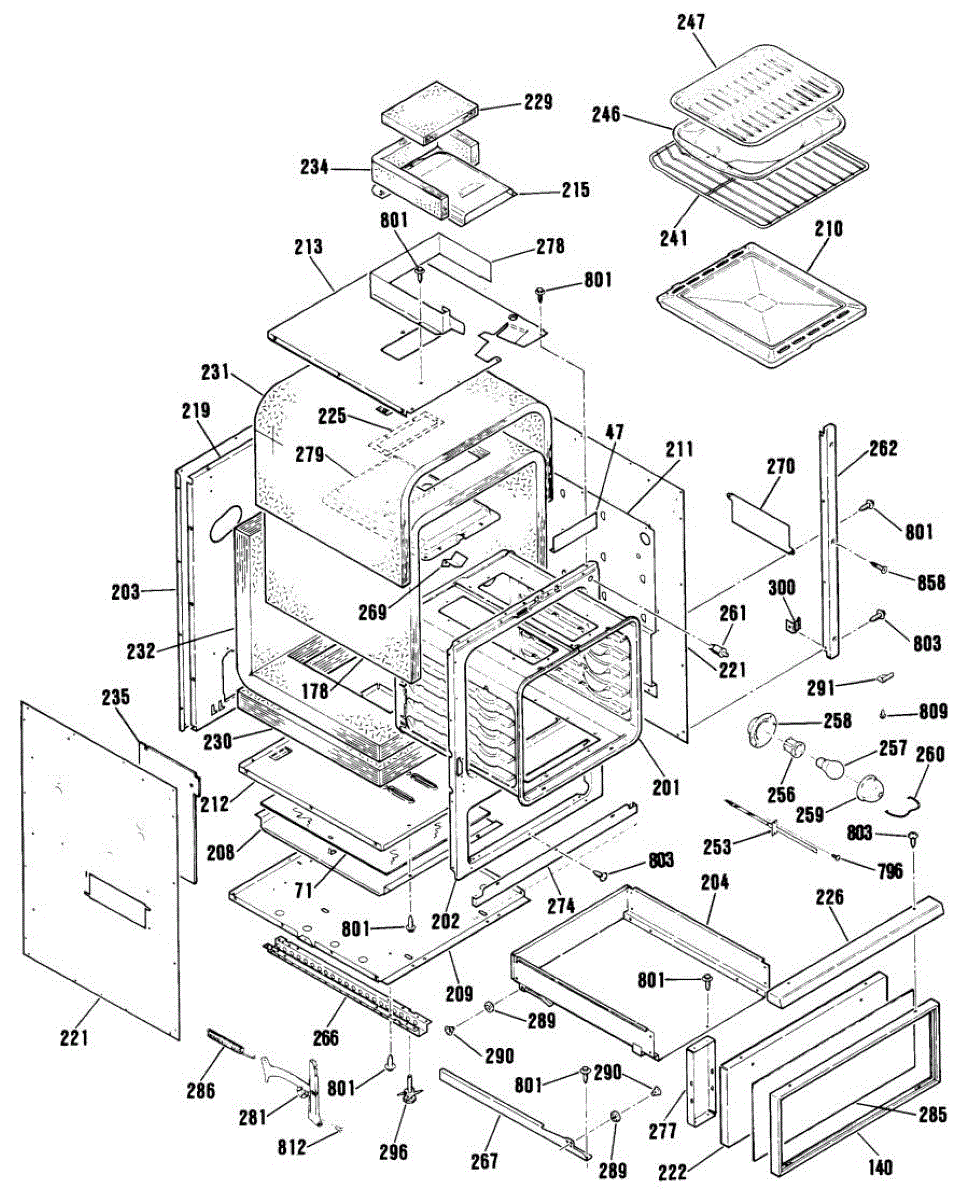

Parts for Ge JGRP17WET2WW: 03 - Section3 Parts

The Oven Rack is an OEM part for GE ovens. This sturdy and durable rack is designed to fit securely in the oven's interior, providing a stable surface for baking and roasting. It is adjustable, allowing you to customize the cooking space to accommodate various dish sizes and ensure even heating.

Common causes of a bad oven rack include warping from prolonged exposure to heat, bending under heavy cookware, or rust and corrosion from moisture.

Symptoms of a bad oven rack include:

• Difficulty in sliding the rack in and out
• Warped or bent rack affecting stability
• Rust or corrosion on the rack's surface
• Inconsistent cooking results due to uneven rack positioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven lamp holder is the replacement socket that secures and powers the interior oven light, restoring safe illumination for checking food without opening the door. Designed to fit industry-standard oven lamp bulbs. What it does:

• Provides a secure electrical connection and mounting point for the oven light bulb
• Enables interior oven illumination so you can monitor cooking without opening the door
• Commonly replaces cracked, burned, or loose lamp sockets that cause the light to flicker or not work
• Works with the oven's existing wiring and bulb type

• Disconnect power to the appliance at the breaker before servicing to avoid shock
• Replace only when the oven is cool; use gloves to protect hands and bulb surfaces
• Inspect wiring and connectors for damage; replace any damaged wiring per OEM guidance

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This light cup support secures the interior lighting assembly and helps position the light socket and lens for reliable illumination. It restores proper alignment and contact for the refrigerator or freezer interior light. What it does:

• Holds the light socket and lens in place to prevent shifting or detachment
• Ensures consistent light alignment so the bulb illuminates the interior correctly
• Addresses symptoms like a loose or hanging light, intermittent contact, or misaligned lens
• Compatible with common GE refrigerator interiors where the original cup support is used

• One light cup support

• Disconnect power before accessing the interior light assembly to avoid shock
• Remove the old cup support by unsnapping or unfastening retaining tabs as required
• Press the replacement into position until retaining tabs engage; test light function before reassembling shelves

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

The Overlay Panel Lower is an OEM replacement part for GE ranges. It covers the lower panel of the range, providing an attractive facade that protects the internal components.

The overlay panel takes wear and tear from regular use and cleaning, so it's important for maintaining the aesthetic of the appliance. Over time, excessive heat exposure and harsh chemicals can cause damage like discoloration, cracks or chips to the panel.

Symptoms of a damaged overlay panel include:

• Appearance issues like scratches, discoloration or cracks in the surface
• Loose or sagging panel that no longer fits securely
• Difficulty closing the lower panel securely

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This adjustable leveling leg raises and stabilizes the appliance to ensure it sits squarely on uneven floors, improving operation and preventing rocking. Designed as a direct replacement to restore proper height and stability. What it does:

• Supports appliance weight and lets you adjust height to level the unit
• Restores a stable, wobble-free fit on uneven or sloped floors
• Helps keep doors, drawers and sealing surfaces aligned for proper operation
• Common symptom fixes: appliance rocks, sits unevenly, or door/drawer alignment is off

• One adjustable leveling leg

• Unplug the appliance (and shut off water/gas if applicable) before working underneath it
• Tip or raise the unit slightly with appropriate support to access leveling leg safely
• Thread the leg in or out to adjust height; use pliers or a wrench only if needed
• Check appliance level after adjustment and test for stability before normal use

This is a small replacement screw used to secure appliance panels and components, restoring proper fit and preventing loose parts. It's a direct-fit fastener commonly used in various GE appliance assemblies. What it does

• Secures trim, panels, brackets or control components to prevent movement and rattling.
• Replaces missing, stripped, or corroded screws that can allow gaps or vibration.
• Helps restore proper alignment of parts that can cause noise or loose-feeling doors/panels.

• Use the matching screw hole and thread; do not force or cross-thread the screw.
• Hand-start the screw, then tighten with the correct screwdriver to a snug fit—avoid over-tightening.
• Disconnect power before working near electrical components; follow appliance safety procedures.

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing
