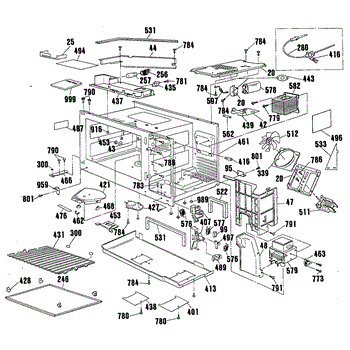

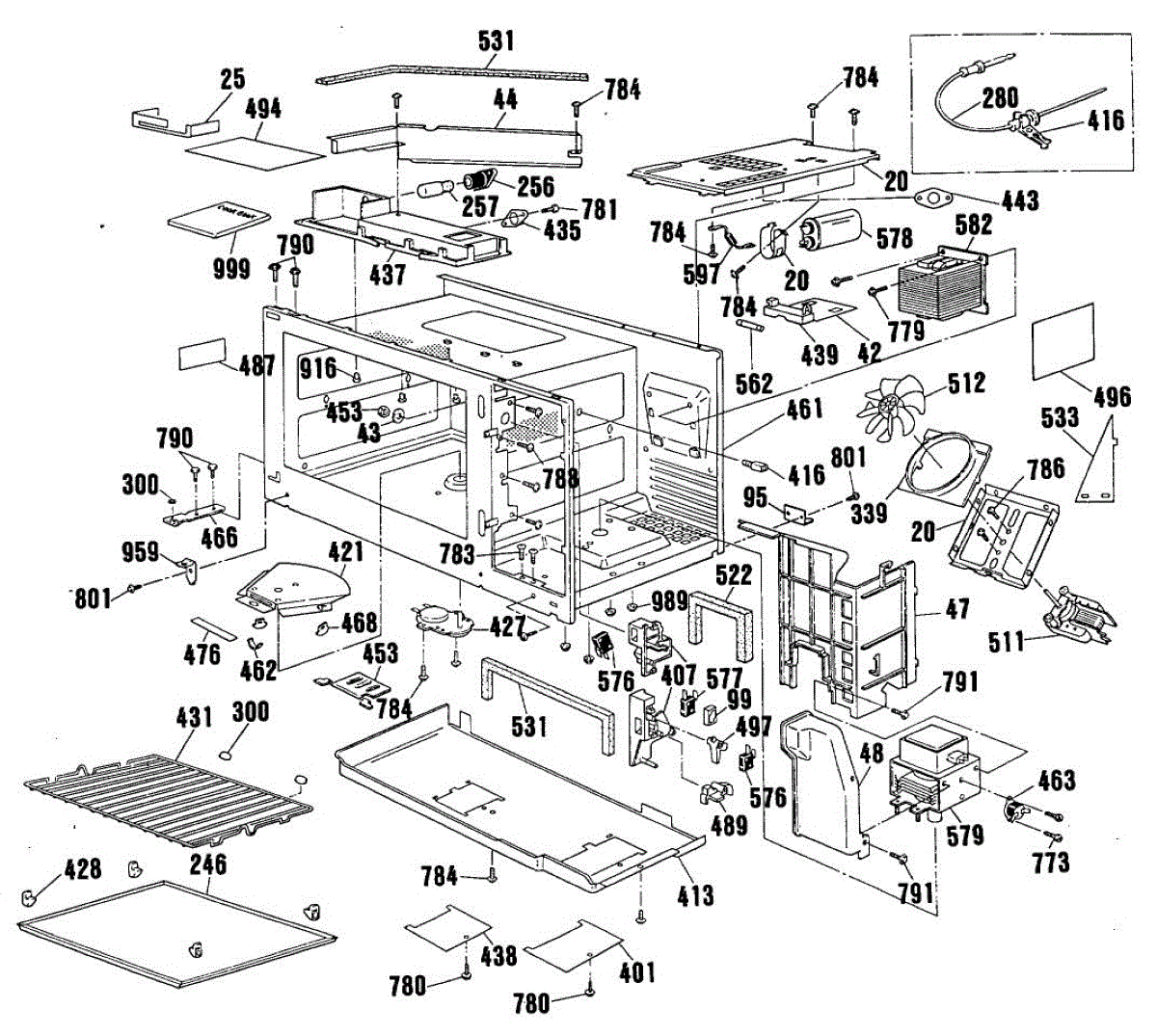

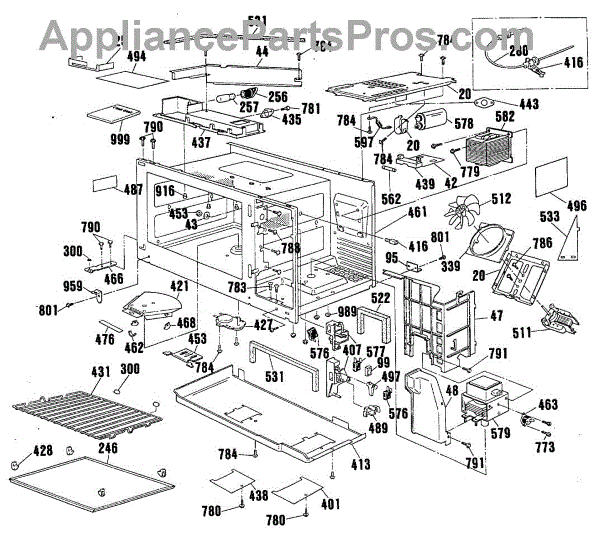

Parts for Ge JKP64GP1: 03 - Section3 Parts

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This oven lamp holder is the heat-resistant socket that secures the interior light bulb and connects it to the appliance's wiring, restoring dependable visibility so you can check food and rack positions without opening the door as often.

• Holds and powers the oven light bulb inside the cooking cavity
• Maintains a solid electrical connection to prevent flickering or intermittent lighting
• Replace if the light won't turn on with a known-good bulb
• Also replace if the socket is cracked, charred, loose, or shows signs of arcing

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the lens and bulb to access the holder; some models require access from the rear panel
• Transfer wires to the new holder one at a time and secure the mounting clip/tabs
• Reinstall the bulb and lens, restore power, and test; use the bulb type specified for your model

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vent trim (black) is a replacement decorative cover that finishes the vent opening and restores the appliance's factory appearance. It protects internal components and helps direct exhaust airflow while providing a clean, finished look. What it does

• Covers and seals the vent opening to reduce visible gaps and protect internal parts
• Restores the appliance's exterior finish when the original trim is cracked, chipped, scratched, or missing
• Helps maintain proper airflow path and reduces light leaks around the vent area
• Prevents rattling or movement caused by damaged or loose trim pieces

• One vent trim (black) as pictured

• Turn off and unplug the appliance or disconnect power before beginning work
• Typically secures with screws or mounting clips; have a screwdriver set ready
• Handle gently to avoid scratching the new trim; align clips before fastening
• Follow OEM service instructions for fitment and torque; replace damaged clips or fasteners

This part has been discontinued and is no longer available.

This caution label is an adhesive warning decal that replaces a worn or missing safety sticker on your appliance, restoring visible safety information and manufacturer warnings. It helps keep safety messages readable and in place. What it does:

• Replaces a faded or damaged caution/warning decal commonly found near controls or service areas
• Restores legible safety instructions and hazard symbols that help prevent misuse
• Adhesive backing secures the decal to metal or plastic surfaces for long-lasting adhesion
• Small, lightweight part intended solely to display safety/caution information

• One adhesive caution/warning label

• Clean and dry the mounting surface before applying to ensure proper adhesion
• Peel backing and press label firmly in place; avoid repositioning once adhered
• Do not cover vents, sensors, or moving parts when applying the decal
• For safety, disconnect power to appliance before accessing interior panels near the label

This replacement cushion is a small rubber/foam bumper that cushions moving parts and reduces vibration and noise for a quieter, smoother appliance operation. It helps prevent metal-on-metal contact and wear where installed. What it does:

• Absorbs shock and vibration to protect panels, doors, or components
• Dampens noise caused by moving or rattling parts
• Prevents direct metal-to-metal contact and cosmetic wear
• Helps maintain proper alignment of the part it cushions

• Disconnect power to the appliance before beginning any work
• Typically press-fits into a mounting hole or snaps into place; no special tools usually required
• Inspect mating surfaces for damage or debris and clean before installing

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

This is a replacement mounting screw used to secure panels and components on compatible appliances. It restores proper fit and prevents rattling or loose parts for a safe, stable appliance. What it does:

• Secures panels, trim, brackets or small components in place
• Replaces missing or stripped fasteners that cause rattling or loose parts
• Helps maintain appliance alignment and safe operation when installed properly
• Small fastener for interior or exterior appliance assemblies

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver and hand-start threads to avoid cross-threading
• Do not overtighten; snug until secure to prevent stripping or damaging parts

This is a genuine replacement mounting screw used to secure panels and components on compatible appliances, restoring safe, stable connections and stopping loose or vibrating parts. Easy to swap when other fasteners are stripped or lost. What it does:

• Fastens panels, trim, and internal components to the appliance chassis
• Restores secure fitment to stop rattling, gaps, or misaligned panels
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the original mounting screw is used on the appliance

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit and apply steady pressure to avoid stripping the head
• Do not overtighten; snug until parts are secure to prevent cracking or thread damage

ST10-16 X 7/16"

This lower trim clip secures the appliance's lower trim or kickplate, keeping panels aligned and preventing rattles or gaps. It's a small but essential fastener for a finished, stable exterior. What it does:

• Holds the lower trim or kickplate in place to keep the front panel aligned
• Prevents trim from sagging, rattling, or separating from the cabinet
• Restores a secure fit after a broken or worn clip
• Works behind the trim to keep visible edges flush for a clean appearance

• The lower trim clip shown

• Disconnect power to the appliance before starting work to avoid electrical hazards
• Access the clip by removing the lower trim or kickplate per your model's service instructions
• Use appropriate hand tools and gentle pressure to avoid cracking trim pieces
• Replace any damaged clips with matching parts; inspect surrounding fasteners for wear
