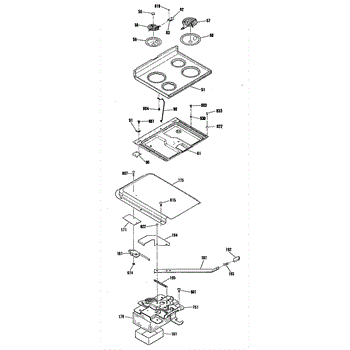

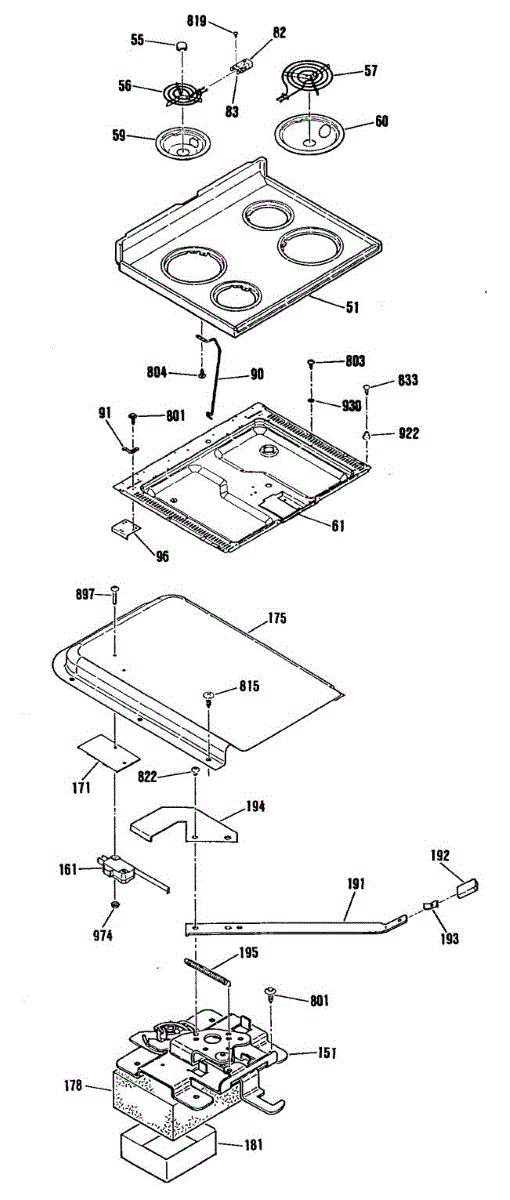

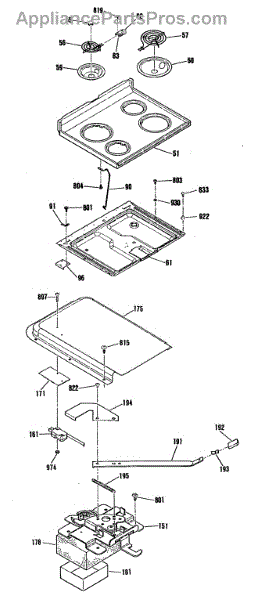

Parts for Ge L3B325GL3: 03 - Section3 Parts

This 6-inch surface element restores steady, even heat to the small burner on your electric range. Replace a burned-out coil to get back to reliable boiling, simmering, and everyday cooking performance.

• Converts electrical power into heat at the 6-inch burner position
• Helps when the small surface burner won't heat or heats unevenly
• Common signs include visible hot spots, blistering, or burned/loose terminals
• Seats in the drip bowl and connects to the proper surface element receptacle

• Disconnect power at the breaker or unplug the range; allow the element to cool before servicing
• Lift the old element from the drip bowl and pull straight out from the receptacle; avoid twisting or bending the coil
• Inspect the element receptacle for heat damage; replace the receptacle if contacts are burned or loose
• Fully seat the new element and ensure it sits level in the drip bowl before use

This 8-inch surface burner element is the plug-in coil used on many electric ranges. Replacing a worn or failed element restores reliable heating and more even cooking performance on your stovetop.

• Provides heat to pots and pans when energized by the surface control
• Common fix for an element that won't heat or only heats partially
• Addresses visible coil damage such as breaks, blisters, or burned spots
• Corrects intermittent heating caused by an open or failing element

• Disconnect power to the range/unplug before servicing and ensure the element is cool
• Lift the old coil slightly, then pull straight out from the receptacle
• Inspect the receptacle/terminal block and drip bowl; replace if overheated or damaged
• Fully insert the new element terminals into the receptacle, seat the coil level, and test

The Drip Pan is an OEM part for GE ranges. This part is located under the burner to catch spills, drips, and crumbs during cooking. The drip pan helps maintain cleanliness by containing messes, making it easier to keep the cooktop clean and preventing spills from reaching the internal components of the appliance. Note: This is the drip pan used with the 6-inch element. For the drip pan used with 8-inch element, order WB31K5025.

Causes of a bad drip pan can include regular wear and tear, discoloration from repeated use, or damage from heavy pots and pans.

Symptoms of a bad drip pan include:

• Visible cracks or holes in the pan
• Rust or significant discoloration
• Difficulty in cleaning the pan
• The pan not fitting securely under the burner

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. It sits underneath the burners to catch spills, drips, and splatters during cooking, preventing these residues from reaching the internal components of the appliance. This helps in maintaining cleanliness and safety, while also making it easier to clean the stovetop.

Causes of a bad drip pan can include prolonged exposure to high heat, which can cause warping or discoloration, and the accumulation of food debris and grease, which can lead to corrosion or foul odors.

Symptoms of a bad Drip Pan include:

• Visible rust or corrosion
• Warping or misalignment with the burners
• Persistent stains or burnt-on food that cannot be cleaned
• Unpleasant odors emanating from the stove area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Nickel

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets
