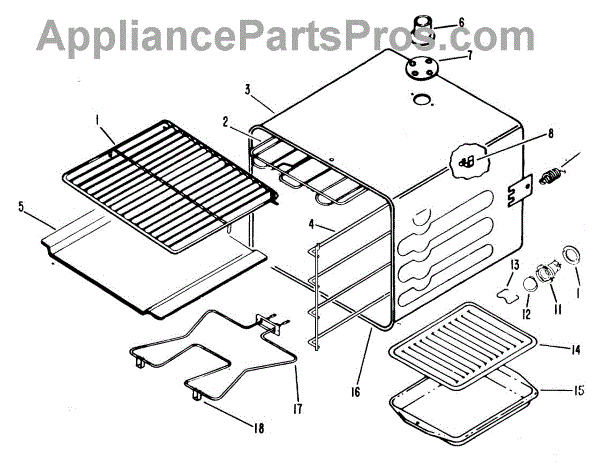

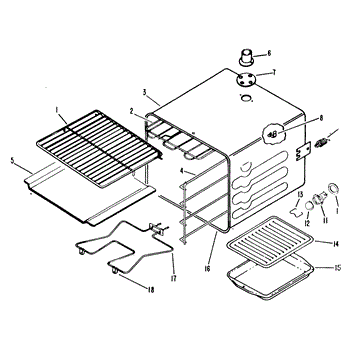

Parts for Ge RB636X02: 03 - Section3 Parts

This broil unit is the upper-oven heating assembly that provides direct high heat for broiling, browning and finishing dishes. Replaces a worn or failed broil element to restore proper broil performance. What it does:

• Produces the direct radiant heat used for broiling and browning food
• Replaces a visibly burnt, broken, or non-heating broil element
• Helps correct uneven browning or lack of upper-oven heat during broil cycles
• Works as the main heat source for the oven's broil function

• One broil unit assembly

• Disconnect power to the appliance at the breaker or unplug before servicing
• Allow the oven to cool completely; use gloves to protect hands from sharp edges
• Remove oven racks and access panel as required to reach the broil element
• Verify proper operation after installation

Package of 12

Includes 12 washers.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Silicone Oven Door Gasket About 44.5" Long. Cross Section Resembles '2'.

This GE oven heating element is an OEM part for GE wall ovens and ranges. The element measures 18” wide x 15 1/2” deep With 1-1/2 inches from the mounting bracket to the end of the terminals that are screw-type. It generates 2585 watts at 240 volts or 1940 watts at 208 volts of heat within the oven cavity.

Symptoms of a bad heating element are:

• Inadequate or uneven baking with cold spots
• The oven taking excessively long to preheat or maintain set temps
• Tripped circuit breakers indicating element failure

Causes of a bad heating element include deterioration of coil insulation from sustained exposure to temperatures upwards of 500°F. Normal wear reduces heat output over many years of use.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
