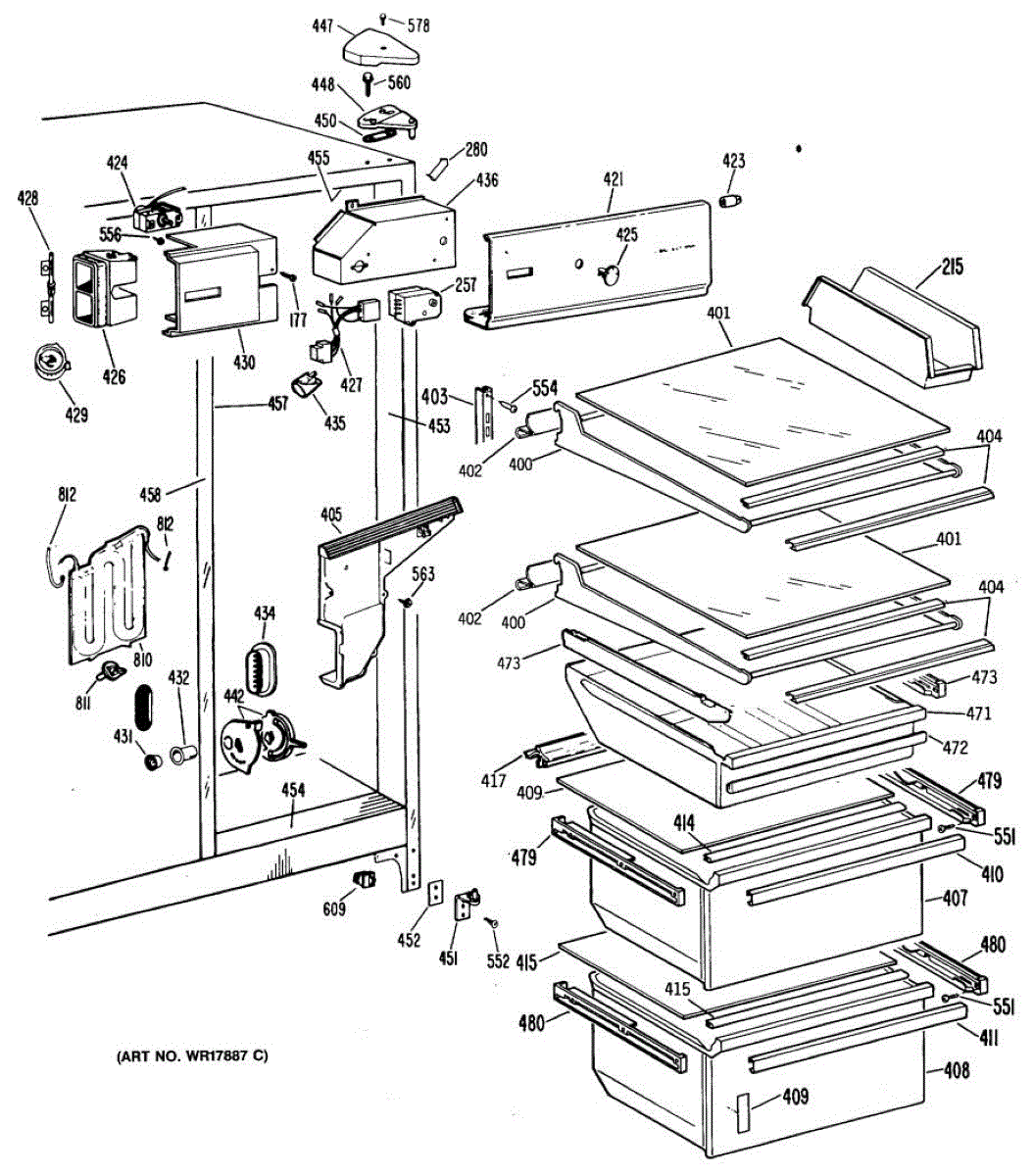

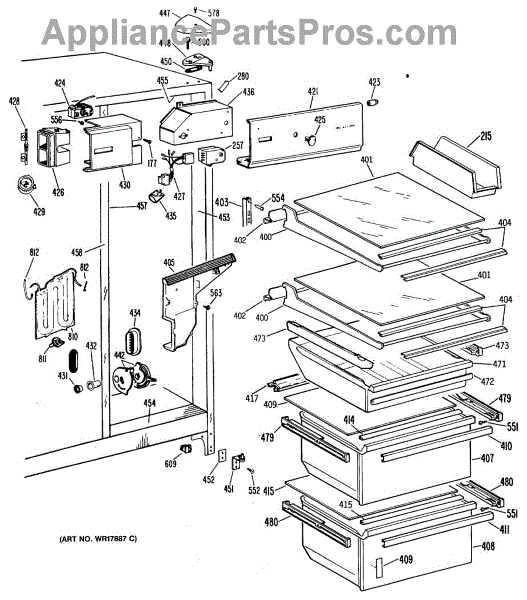

Parts for Ge TFE22RRAWH: 03 - Section3 Parts

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This shelf support secures a refrigerator shelf in place to keep food and containers stable. It restores proper shelf alignment and helps prevent sagging or falling items. What it does:

• Holds and stabilizes an interior refrigerator shelf or glass shelf edge
• Restores correct shelf height and level when a broken or worn support causes sagging
• Prevents shelves from shifting or dropping when loaded
• Helps noisy or unstable shelving sit firmly in place

• One shelf support

• Unplug the appliance or disconnect power before starting work
• Remove food and the shelf before replacing the support to avoid damage
• Usually installs by snapping or sliding into the shelf track; a flathead screwdriver may help with removal
• Do not force parts; if resistance is high, confirm alignment to avoid breaking surrounding trim

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Lower Door Hinge Kit is an OEM part for GE refrigerators. This kit is essential for the proper functioning and alignment of the refrigerator door, providing the necessary support and pivot point for smooth opening and closing.

Symptoms of a failing Lower Door Hinge include:

• The refrigerator door sagging or failing to close properly
• Squeaking or grinding noises when the door is opened or closed
• Resistance or difficulty when moving the door
• Visible wear or damage to the hinge or surrounding area

Causes of a bad lower door hinge can include mechanical stress from frequent use, improper alignment or installation that increases wear, or corrosion from moisture exposure, which can weaken the metal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left side.

This replacement part is a snack pan slide rail, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This part is able to hold up other trays and racks in the refrigerator and freezer so that extra shelf space can be utilized. These slide rails can also hold up trays that can support heavy bottles and drinks. A new snack pan slide rail might be needed if the current ones have become stripped and are unable to latch onto the shelving to support it. It is common that these parts can become brittle over time as exposure to low temperature wears down the plastic. Be sure the shelving of the appliance is clear before attempting to replace the slide rail. This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with different types of appliances made by General Electric.

The Drawer Slide Assembly is an OEM part for GE refrigerators. It provides the mechanism that allows refrigerator drawers to slide in and out smoothly. This assembly includes the tracks and glides that support the drawer, ensuring it moves effortlessly while staying securely in place.

Causes of a bad drawer slide assembly can include wear and tear from frequent use, accumulation of dirt and debris in the tracks, or physical damage from overloading or mishandling the drawer.

Symptoms of a bad drawer slide assembly include:

• Difficulty opening or closing the drawer
• The drawer not staying in place
• Unusual noises when moving the drawer
• The drawer feeling loose or wobbly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

With a length of 16 1/4 inches, it is structured to support the crisper drawer. This facilitates its smooth and effortless sliding in and out. For matching left-hand side order WR72X207.

The Drawer Slide Assembly is an OEM part for GE refrigerators. It allows for smooth and easy movement of the refrigerator drawers, ensuring convenient access to stored food items. It provides the necessary support and stability to hold the weight of the contents within the drawers. The slide measures approximately 16 1/4 inches long.

A bad Drawer Slide Assembly can occur due to wear and tear over time, excessive load strain, or damage caused by accidental mishandling. If the slide assembly becomes worn, bent, or broken, it can lead to issues such as difficulty in opening or closing the refrigerator drawers, as well as potential damage to the drawers or their contents.

Symptoms of a bad Drawer Slide Assembly include:

• Sticky or stiff movement of the refrigerator drawers.
• Drawer not fully extending or retracting.
• Excessive wobbling or sagging when the drawer is pulled out.
• Visible damage or wear on the slide assembly.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

For matching right hand side order WR72X206.

The Crisper Drawer Slide is an OEM replacement part for GE refrigerators. It facilitates the smooth movement of the crisper drawer, ensuring easy access to fruits, vegetables, and other stored items. This is the right-hand side refrigerator crisper drawer slide. Approx. 14 7/8 inches long.

Symptoms of a bad Crisper Drawer Slide include:

• The crisper drawer sticking or jamming, making it difficult to open or close
• Visible wear or damage to the slide, affecting its smooth operation
• The drawer not aligning properly, leading to an insecure fit
• The inability to fully extend or retract the crisper drawer

Causes for a malfunctioning Crisper Drawer Slide can include wear and tear from regular use, the accumulation of debris obstructing the slide's path, or damage incurred from overloading the drawer.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For matching left-hand side order WR72X209.

The left Drawer Rail Slide is an OEM part for GE refrigerators. It provides smooth sliding action for refrigerator drawers, ensuring easy access and optimal storage management. This component guides the drawer in and out, preventing misalignment and supporting the weight of the drawer and its contents.  It measures approximately 14 7/8 inches long.

Over time, the drawer rail slide can become worn or damaged, leading to issues with drawer movement. Common causes of a bad drawer rail slide include normal wear and tear from frequent use, damage from overloading the drawer, or physical impacts that cause misalignment or breakage.

Symptoms of a bad drawer rail slide include:

• Difficulty opening or closing the drawer
• Drawer not aligning properly
• Excessive noise when operating the drawer
• Drawer falling off the rails

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For matching right-hand side order WR72X208.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Tank Plastic Tube is an OEM part for GE refrigerators. It functions as a conduit, transporting water from the water tank to the dispenser and ice maker, ensuring a steady flow of water for these features.

You should replace this plastic tube if it becomes damaged or worn out. Causes of a bad water tank plastic tube can include wear and tear over time, blockages from mineral deposits, or physical damage from mishandling or kinks.

Symptoms of a bad water tank plastic tube include:

• Leaks or drips from the tube
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or damage to the tube
• Air bubbles in the water line

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
