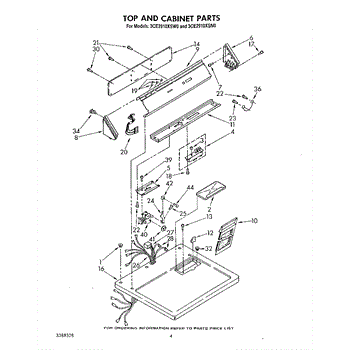

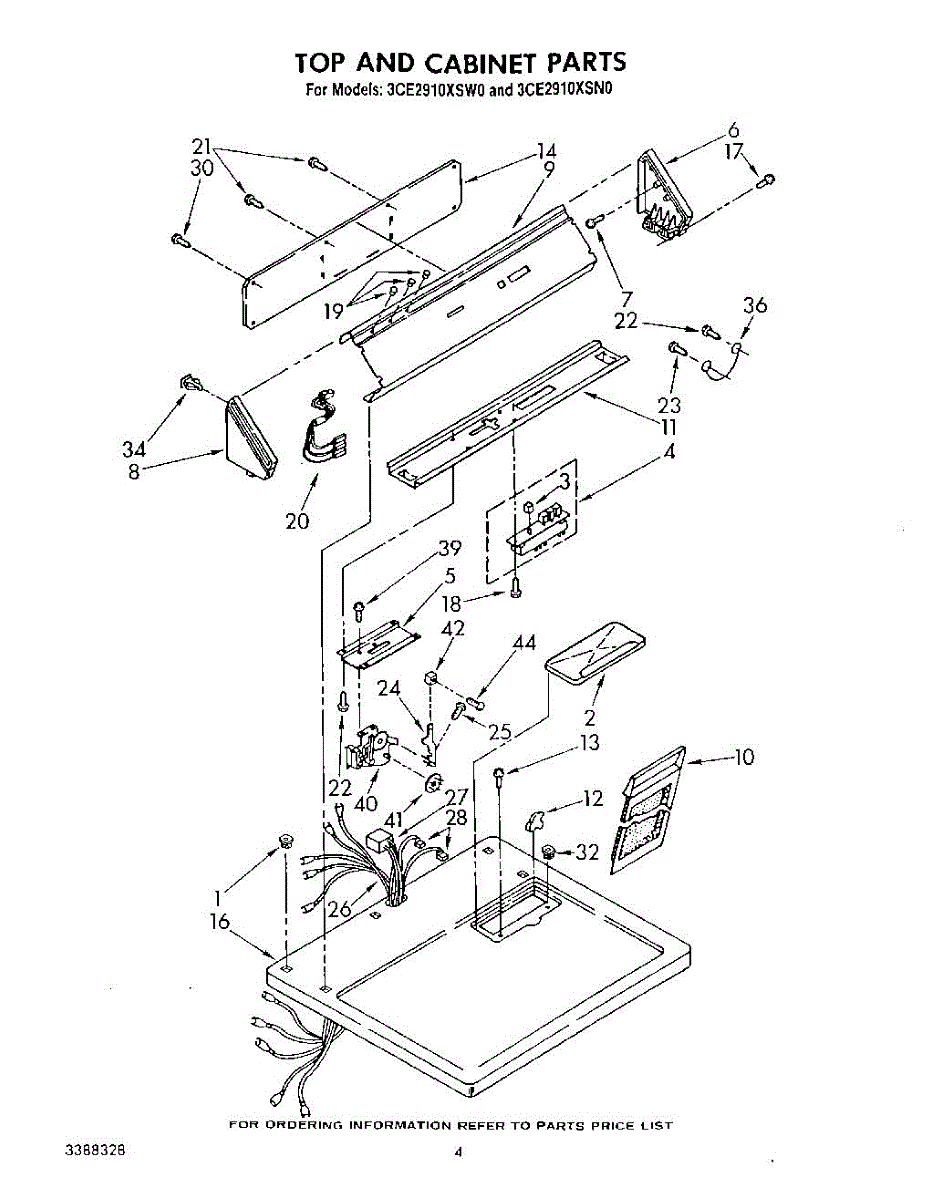

Parts for Whirlpool 3CE2910XSW0: 03 - Section Parts

Color: Almond

The Lint Screen is an OEM part for Whirlpool dryers. This component is designed to trap lint and debris that are generated during the drying process, preventing them from accumulating in the dryer's vent system. By capturing lint, the screen helps maintain proper airflow, reducing the risk of fire hazards and ensuring that the dryer operates efficiently. This lint screen measures approximately 19 x 7 inches.

Symptoms of a failing Lint Screen include:

• Visible tears or holes in the screen mesh
• The screen not fitting securely in its slot
• Lint buildup in the dryer or vent system
• Clothes taking longer to dry due to restricted airflow
• The screen being difficult to remove or replace

Causes of a bad lint screen can include regular wear and tear from frequent use, physical damage from heavy lint loads or improper handling, and the accumulation of residue from dryer sheets or fabric softeners that can clog the mesh.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

Right handed Hinge

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This amber light lens covers and diffuses an indicator/pilot light on the appliance's control panel. It restores proper color and visibility while protecting the opening when the original lens is cracked, discolored, or missing.

• Diffuses and colors the indicator light to amber for clear status visibility
• Shields the lamp opening from dust and incidental contact
• Helps maintain the original look of the control panel
• Common signs it's time to replace: cracked or missing lens, faded/discolored lens, glare or hard-to-see indicator

• Disconnect power to the appliance before servicing.
• Access the control panel area to reach the back of the lens.
• Release the old lens from its retainer/tabs and seat the new lens fully in the panel opening.
• Restore power and verify the indicator light is visible through the lens.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

6 Pin 30 minute

The Timing Cam is an OEM part for Whirlpool dryers. This is part of the dryer's timer mechanism and manages the sequence and duration of drying cycles.

Causes of a bad Timing Cam often stem from mechanical wear and tear over extended use, which can lead to the cam becoming worn down or damaged.

Symptoms of a bad Dryer Timing Cam include:

• The dryer not advancing through its cycles properly, leading to under or over-dried clothes.
• The dryer stopping mid-cycle or failing to start a cycle at all, indicating the cam isn't engaging the timer contacts correctly.
• Unusual noises from the timer area, which may suggest the cam is damaged or misaligned.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

3 pin 60 minute
