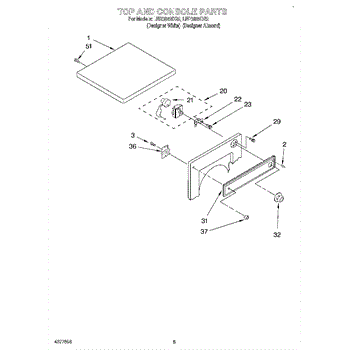

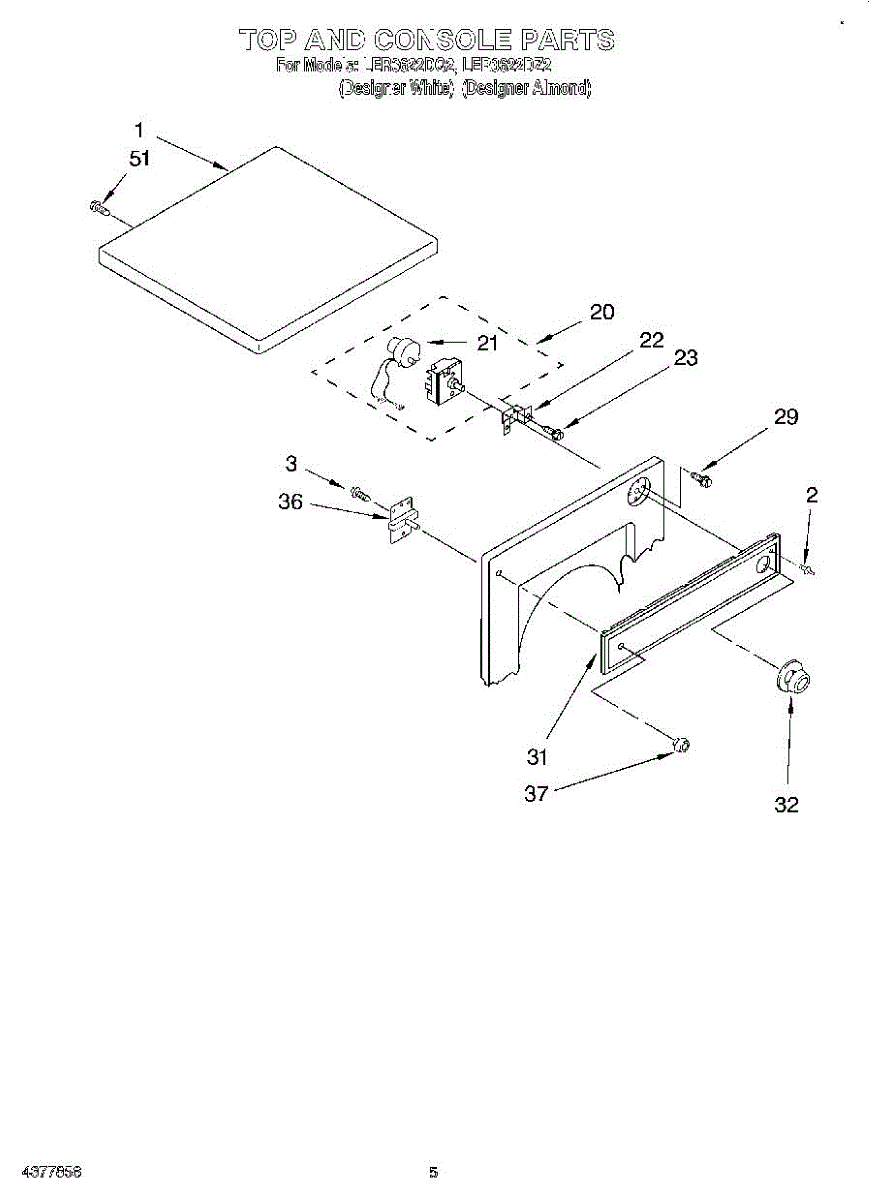

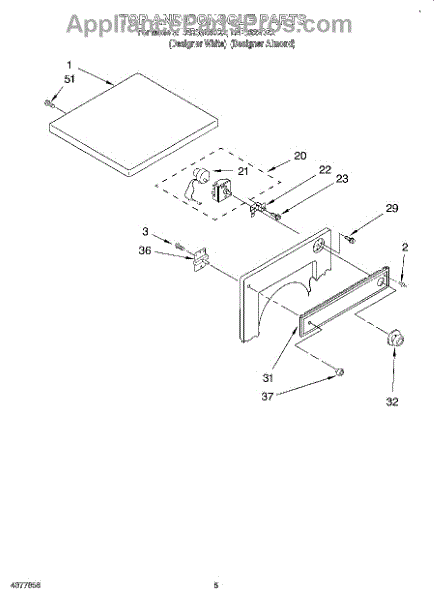

Parts for Whirlpool LER3622DZ2: 03 - Section Parts

This white top panel replaces the outer cooktop surface on compatible ranges to restore a finished look and protect internal components from spills and debris. It's a direct-fit exterior part used when the original top is dented, cracked, or cosmetically worn. What it does:

• Covers and protects the range's internal components and burners from spills and heat exposure
• Restores a clean, finished appearance to the appliance exterior
• Helps maintain proper spacing and support for burner assemblies and controls
• Reduces risk of debris falling into the cabinet area below the cooktop

• One white top panel

• Requires basic disassembly of the cooktop; your model's service manual for step-by-step instructions
• Disconnect power (and gas supply if applicable) before beginning any repair to avoid shock or injury
• Use appropriate fasteners and gaskets from your model's parts list; do not force-fit parts

10 - 16 x 1/2

This 3-cycle timer controls the sequence and duration of wash/dry cycles, restoring proper cycle advancement and timing for compatible appliances. Designed to replace a worn or non-advancing timer so your machine completes cycles as expected. What it does:

• Rotates through the machine's timed cycles to start, run, and end selected programs
• Opens and closes internal contacts to route power to motors, valves, or heaters at the right times
• Commonly replaces a timer that won't advance, stops mid-cycle, or fails to energize components
• Helps resolve symptoms like no cycle progression, no motor/heater activation, or stuck settings

• One 3-cycle timer

• Disconnect power before servicing to avoid shock risk
• Follow for removal, wiring locations, and mounting; label or photograph connections before disconnecting
• Handle the timer gently; avoid bending terminals or applying excessive force
• Test appliance functions after installation; some models may require timer indexing or calibration per OEM instructions

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Color: White.

Color: White.

Specs: 10-16 x 1/2 inch.
