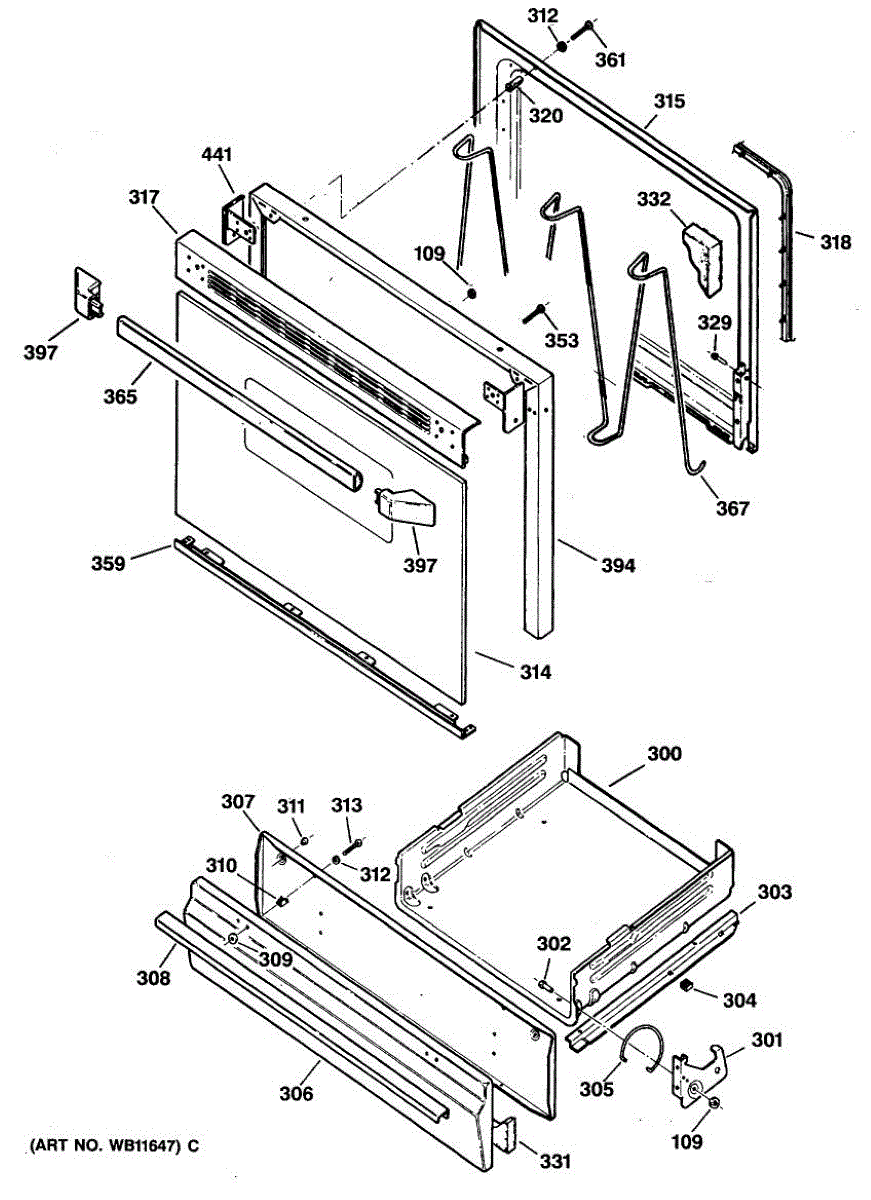

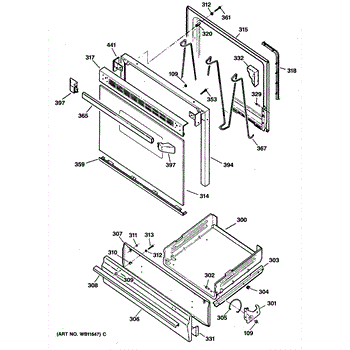

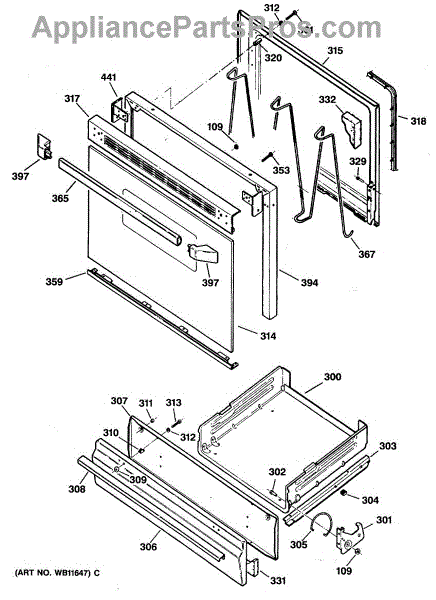

Parts for Ge JGBS04GPV1AD: 04 - Section4 Parts

Includes 12 speed nuts.

Right side broiler hinge for gas ranges. Replacement for broken, cracked, or worn hinges that keep the broiler door properly aligned and supported.

Left side broiler hinge for gas ranges. Replaces broken, worn, or missing hinges that prevent proper broiler door operation and alignment.

Secures and stabilizes your gas range broiler drawer, allowing smooth sliding and proper alignment. Replace if worn, broken, or missing.

Side broiler panel guide for gas ranges. Installs on the right side of the broiler cavity. Replace if cracked, broken, or missing to restore proper fit.

Left side broiler panel for gas ranges. Replaces cracked, damaged, or missing side panels. Mounts to the broiler compartment interior wall.

Broiler rack slide support that mounts inside your range oven cavity. Replace if bent, broken, or missing to restore smooth sliding and stability.

This is the right side broiler door spring. For left side use WB9K3.

Left side broiler door spring for gas ranges. Replaces cracked, broken, or worn springs that fail to hold the broiler door properly in position.

Replacement drawer front panel for your range. Installs on the warming or storage drawer. Order a new panel if yours is cracked, chipped, or damaged.

Protective liner panel for range storage or warming drawers. Replace if cracked, stained, warped, or missing to restore drawer appearance and function.

Includes 12 washers.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Caus

Includes 12 washers.

Includes 12 screws.

Insulation pad that lines the oven door to retain heat and reduce exterior temperature. Replace if torn, compressed, or missing for proper efficiency.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Replacement oven door handle for ranges. Installs on the oven door exterior to provide a grip for opening and closing. Replace if cracked, broken, or worn.

Secures and routes wiring inside your range to prevent chafing or contact. Replace if cracked, broken, or missing to keep wires safely clipped to chassis.

Black decorative trim piece that frames the oven door on your range. Replace if cracked, chipped, faded, or missing to restore a clean, finished look.

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
