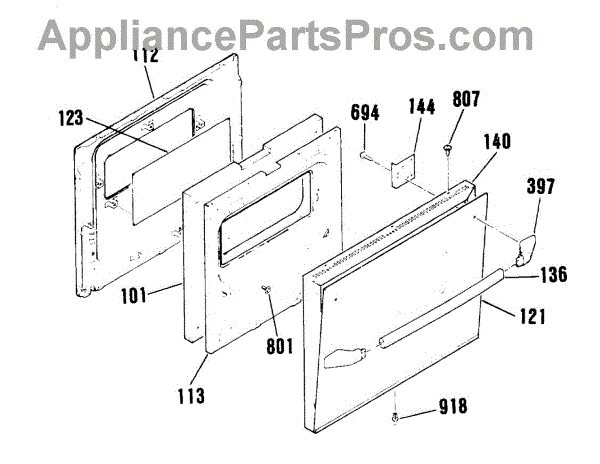

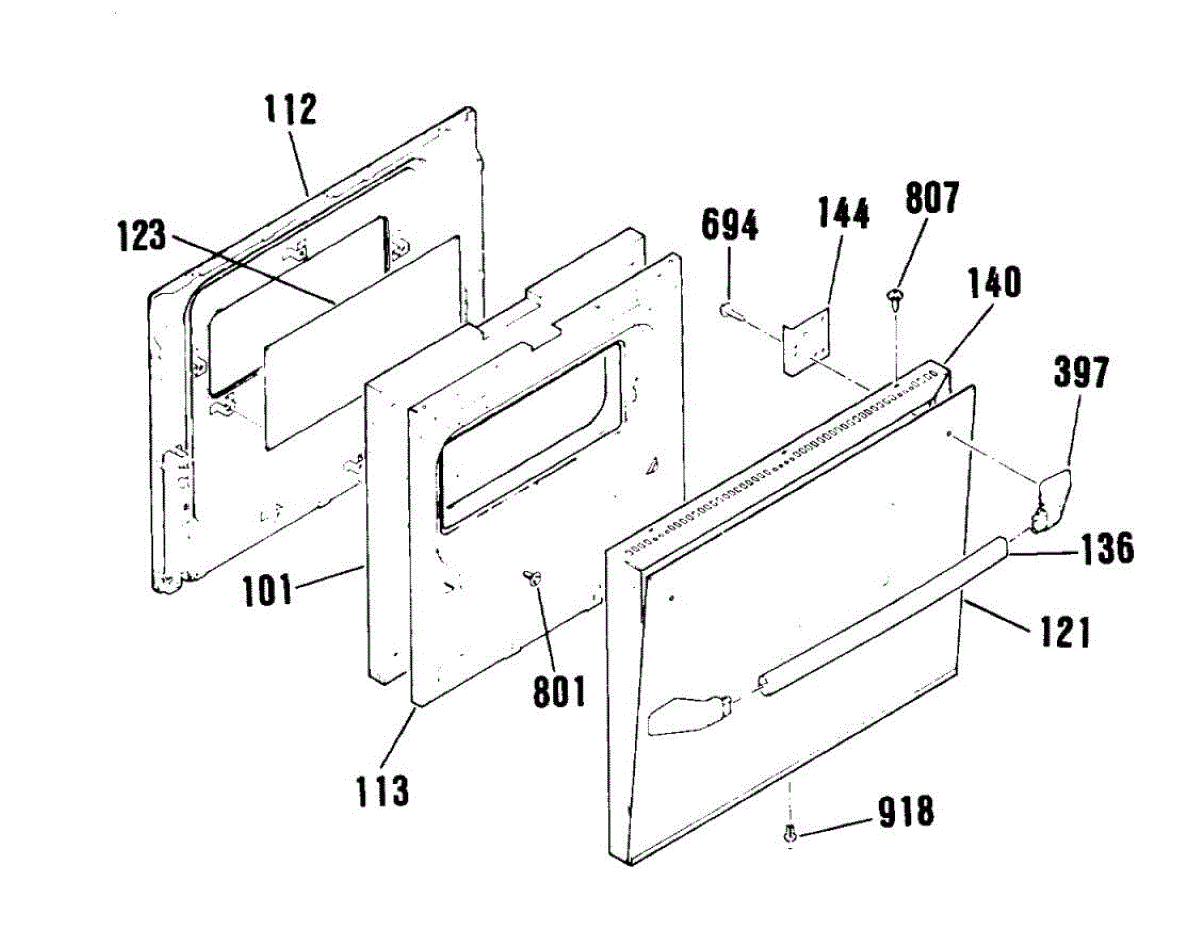

Parts for Ge JGRS14GET2BB: 04 - Section4 Parts

This is the outer glass panel for the oven door. Replacing a cracked or shattered exterior pane restores a safe, clean-looking door surface and helps protect the inner window and insulation from damage. What it does:

• Forms the front layer of the oven door and shields the inner window/insulation
• Provides a smooth, easy-to-clean exterior surface and finished appearance
• Helps maintain proper door integrity when the original glass is broken or missing
• Common symptoms include cracked or shattered glass, loose/rattling trim, or sharp edges on the door exterior

• 1 outer oven door glass panel

• Disconnect power; for gas ranges, also shut off the gas supply
• Allow the appliance to cool completely before service
• Wear cut-resistant gloves and eye protection; handle tempered glass carefully
• Support or remove the door; transfer handle/trim and reuse original hardware; do not overtighten fasteners

This lower front panel frame replaces the trim piece at the bottom of the oven/range to restore appearance and help keep the bottom cavity covered. It provides a finished look and protects internal components from debris. What it does:

• Covers the lower front opening and conceals the storage/drawer area
• Restores cosmetic appearance when original panel is dented, bent, or scratched
• Helps reduce debris from entering the area under the oven/range
• Fits to existing mounting points and works with the unit's lower assembly

• Disconnect power to the appliance before servicing and allow the range/oven to cool.
• Installation typically requires removal of lower access screws or clips; keep fasteners for reuse.
• Handle the panel carefully to avoid scratching the finish during installation.

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

ST10-16 X 7/16"

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

This plastic rivet is a push-in fastener used to secure trim and panels on compatible appliances, helping keep exterior pieces firmly in place for proper fit and finish. It's a small, inexpensive part that prevents rattling and loose trim. What it does:

• Acts as a push-in fastener to hold trim pieces, panels or liners together
• Keeps exterior parts aligned and reduces vibration or rattling noises
• Replaces worn or missing rivets that allow panels to sit loose
• Works where a simple snap-in plastic retainer is required

• One plastic rivet

• Disconnect power to the appliance before starting any repair that exposes wiring or components
• Typically installs by pushing into the mounting hole until the head seats; may require pliers for removal
• Inspect mating hole and surrounding trim for damage before installing replacement
