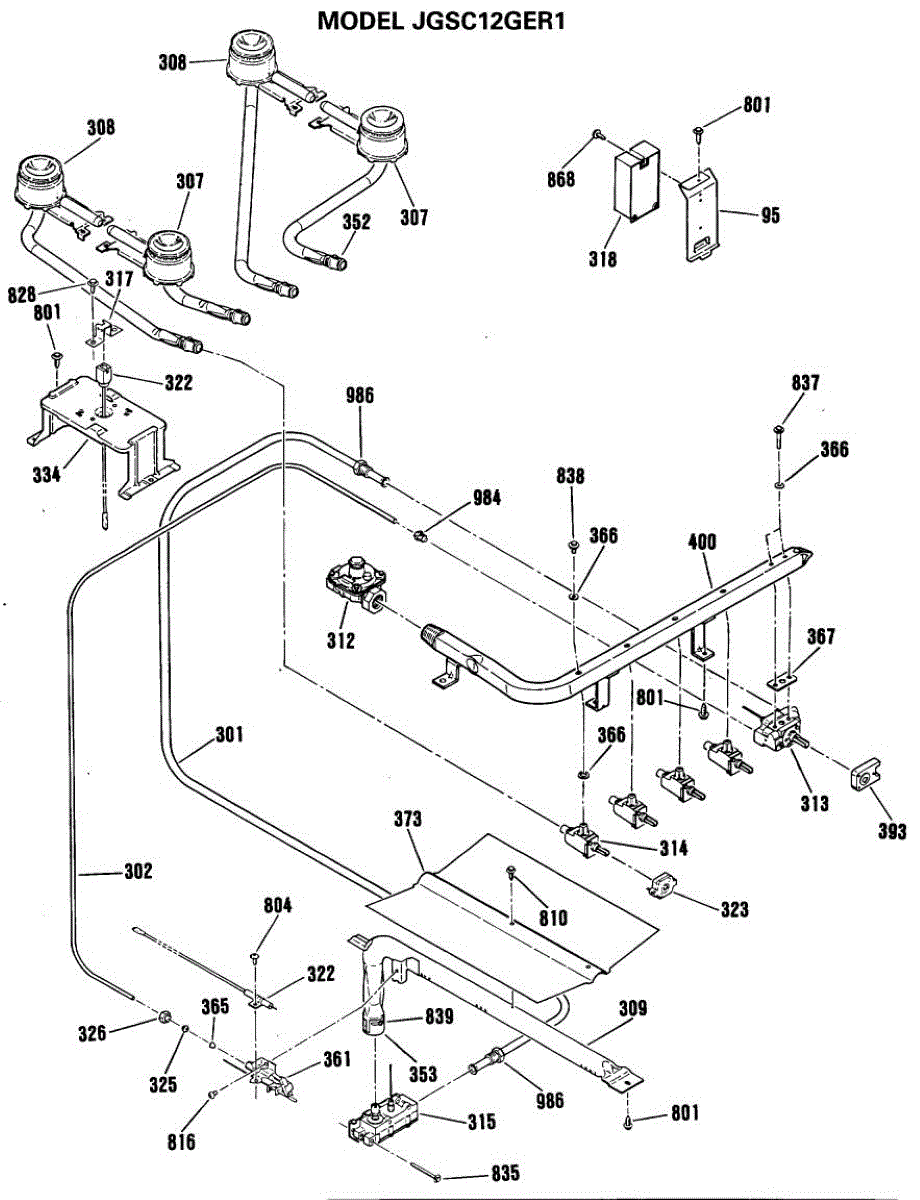

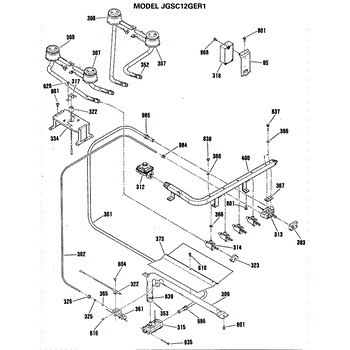

Parts for Ge JGSC12GER1BG: 04 - Section4 Parts

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

This spark module controls the ignition sparks for a gas range or cooktop, letting the burner surface and oven ignite reliably. Replaces a failed ignition control to restore sparking at the burner electrodes. What it does

• Sends timed spark pulses to burner electrodes so gas ignites when a burner or oven is turned on
• Replaces a failed or intermittent ignition source that causes clicking without ignition
• Commonly used when one or more burners won't light or spark consistently
• Works with electrode wires and ignition switches to coordinate burner ignition

• Spark module (1)

• Disconnect power and shut off the gas supply before starting work
• Label or photograph existing wire connections to ensure correct reconnection
• Handle the module and wiring harness carefully; avoid pulling on wires or connectors

Fix burners that won't light with this range burner igniter switch. Controls spark ignition for gas burners. Moderately easy DIY repair in 30-45 minutes.

Air shutter for cooktop burners. Adjusts air-to-gas mixture for proper flame combustion. Replace if cracked, broken, or missing to restore burner performance.

Seals the valve screw connection on your range to prevent gas leaks. Replace if you notice gas odor or during valve maintenance. Verify fit with your model.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

This Loxit locking retaining nut secures components and terminals on home appliances to keep parts fastened and reduce vibration-related loosening. It's a small but essential hardware piece for reliable mechanical and electrical connections. What it does:

• Secures terminals, studs, or posts to prevent movement and maintain electrical contact
• Holds small assemblies or panels in place to stop rattling or loosening from vibration
• Restores proper fit where a worn or missing nut causes a loose knob, control, or connection
• Helps prevent intermittent electrical contact caused by loose fasteners

• One Loxit locking retaining nut

• Disconnect power to the appliance before starting any repair.
• Verify nut thread and size match the stud before installation; use correct hand tools.
• Tighten securely but avoid over-torquing to prevent stripping or damage.
• Ensure proper seating and inspect wiring for wear.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.
